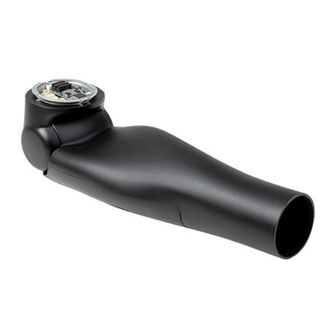

  • Page 1 Espire Elbow ™ Pro and Hybrid user guide...
  • Page 2 WELCOME INTENDED USE Federal Law restricts that the Espire Elbow system is to be purchased, configured and fit only by a board-certified prosthetist, licensed by the state in which they practice. The operations contained in this document are intended for operator use. Intended Use Statement The Espire Elbow is to be used exclusively for external prosthetic fittings of the upper limbs.

  • Page 3: Technical Specifications

    TECHNICAL SPECIFICATIONS Specifications Weight Limit 25 lb (11.3 kg) Maximum Lifting Force 10 lb Flexion Angle (preset control) -5 - 135⁰ Speed (preset control) 135⁰/sec Mode of operation Continuous Device Operation – internally powered Battery (removable) Smart Li-Ion 10.8 V, 3,000 mAh Time to full charge 3.5 hours Charger...
  • Page 4 POWERING ON THE ESPIRE ELBOW Power Button The power button is located on the underside of the Espire Elbow. To turn the device on or off, press and hold the power button for 4 seconds. When the device is powered on or off, a multi-colored light on the LED indicator will flash for 1 second.

  • Page 5: Led Indicator

    LED INDICATOR The Espire Elbow features a single, multi colored LED Indicator located on the center of the forearm near the elbow joint. This LED is used to display information such as battery life, calibration start and stop times, and system errors. The chart below outlines each LED pattern.

  • Page 6: Batteries And Charging

    Installing a battery is the reverse process. Ensure that the battery connections are facing the distal opening of the forearm and that the college park logo on the top of the battery is visible. Insert the battery into the elbow, ensuring that the pull tab is accessible for future removal. Then, angle battery cover to insert closest to elbow first and apply.

  • Page 7: Charging The Battery

    CHARGING THE BATTERY Charging the Espire Elbow Battery Place the charger on a flat, level surface away from sources of heat and moisture. Plug the A/C connector from the power supply into the back of the charger and connect the power supply to the main A/C supply using the cable supplied.

  • Page 8: How To Recalibrate

    RECALIBRATION USING THE RESET BUTTON RECALIBRATION OVERVIEW – FOR USERS WITH AC MYOELECTRODES ONLY Changes in volume of your residual limb may lead to decreased contact with the myoelectrodes in your prosthetic socket. This decreased contact may cause your Espire Elbow system to respond more slowly or erratically.
  • Page 9 Strong Signal Calibration During Strong Signal Calibration: ▪ You may sit or stand upright ▪ Activate all myo signals used for device control throughout the duration of the calibration Feature Description Reset Button Press and hold for 4 seconds to begin “Strong Signal” calibration Press and hold the reset button for 4 seconds to begin “Strong Signal”...
  • Page 10 COUNTER BALANCE ADJUSTMENT HYBRID ELBOW ONLY COUNTER BALANCE OVERVIEW The counter balance assists in flexion and extension of the Espire Elbow. Different amounts of tension are necessary based on the elbow’s overall length and the weight of the terminal device. Counter Balance Dial COUNTER BALANCE ADJUSTMENT Direction...
  • Page 11 User Guide Espire Elbow | 10...

  • Page 12: Maintenance And Troubleshooting

    MAINTENANCE AND TROUBLESHOOTING 11 | Espire Elbow - User Guide...

  • Page 13: Troubleshooting

    TROUBLESHOOTING Caution: The Espire Elbow should never be serviced while connected to the end user. Ensure that the device is disconnected and powered off before any service or maintenance is performed. This device should never be serviced while in use. Never let children use this handle this device unsupervised.

  • Page 14: Intended Use

    INTENDED USE AND SAFETY INTENDED USE Intended Use Statement The Espire Elbow is to be used exclusively for external prosthetic fittings of the upper limbs. The Espire elbow processes the User’s input signals to activate and control powered elbow movement. Intended Users The Espire Elbow is intended for use only by the individual being fit with the device.
  • Page 15 Espire Elbow, resulting in a risk of injury. No modifications on your Espire Elbow except those described in this information document are authorized. The Espire Elbow and damaged components may only be opened or repaired by certified College Park technicians. Caution: Penetration of dirt and humidity The penetration of dirt and humidity may lead to faulty control or malfunction of the Espire Elbow and result in a risk of injury.
  • Page 16 For maximum safety and convenience, College Park recommends that, at the very least, a specialist evaluate the need for any adaptations to the car (such as by installing a steering fork). It is indispensable to ensure that the driver can operate the vehicle without any risk with the Espire Elbow turned off.
  • Page 17 Caution: Operating the product near active implanted systems When operating the product, there is a risk of temporary influences of active implantable systems (e.g. pacemakers, defibrillators etc.) because of electromagnetic interference of the product. When operating the product in the immediate vicinity of active implantable systems, ensure that the minimum distances stipulated by the manufacturer of the implant are observed.
  • Page 18 Definitions of symbols used in this device and its packaging Symbol Definition Source Consult instructions for use. BS EN ISO 15223-1: 2012 Reference no. 5.4.3 Keep dry. BS EN ISO 15223-1: 2012 Reference no. 5.3.4 This product contains electrical and electronic IS EN 50419:2006 Reference no.
  • Page 19 Battery is recyclable - follow local recycling & reclaiming ISO 7000 Reference procedures. no. 1135 China RoHS Mark I logo. Product does not contain SJ/T11364-2006 toxic and hazardous substances or elements above the clip level in any material or application including those exempt from the requirements of the EU RoHS Directive.
  • Page 20 800.728.7950 | 586.294.7950 | college-park.com COLLEGE PARK INDUSTRIES, INC 27955 College Park Dr. Warren, MI 48088 USA EMERGO EUROPE Prinsessegracht 20, 2514 AP The Hague, Netherlands Australian Sponsor EMERGO AUSTRALIA Level 20, Tower II, Darling Park, 201 Sussex Street, Sydney, NSW 2000 Australia MADE IN THE USA ©2019 College Park Industries, Inc.
