STRIDE CONTROL ADJUSTMENT
The adjustable Stride Control gives you the ability to customize an individual's gait timing, fine-
tuning the foot's response by either turning it clockwise/ counterclockwise. This adjustment
affects both plantar and dorsiflexion resistance without the need to change soft components.
The Venture ships with a medium Stride Control setting. If new bumpers are fitted, set the preload to
2-turns (medium preload) from the point of initial contact with the ankle bone.
If an additional 1-1/2 turns are required to attain the desired resistance, then a change in bumpers is recommended.
DYNAMIC ADJUSTMENTS
DESIRED RESULT
ALIGNMENT CHANGE
Plantarflex the Venture or move
Firmer Toe Response
load line posterior
Dorsiflex the Venture or move load
Softer Toe Response
line anterior
Dorsiflex the Venture or move load
Firmer Heel Response
line anterior
Plantarflex the Venture or move
Softer Heel Response
load line posterior
GAIT MATCHING
GUIDELINES
®
Contact College Park Technical Service if you have questions about modifying the gait match.
WARRANTY INSPECTION AND MAINTENANCE INFORMATION
College Park recommends that you schedule your patients for check-ups on the Venture foot six months
after initial fitting and then annually.
High patient weight and/or impact level may require more frequent inspections. Soft component wear
depends on the patient weight, impact level and environment. We recommend you inspect the following
applicable parts for excessive wear and fatigue at each warranty inspection and replace as needed.
•
Soft components (disassemble,
inspect & re-lubricate)
•
Composites and Adapters
TECHNICAL ASSISTANCE / EMERGENCY SERVICE 24-7-365
College Park's regular office hours are Monday thru Friday, 8:30
an emergency Technical Service number is available to contact a College Park representative.
800.728.7950 | 586.294.7950 | college-park.com
COLLEGE PARK INDUSTRIES
27955 College Park Dr. Warren, MI 48088 USA
©2014 College Park Industries, Inc. All rights reserved. College Park, Stride Control, Gait Matching and Venture are registered
trademarks of College Park Industries. IntelliWeave, FootHorn, CPI Sock and TruLube are trademarks of College Park Industries.
US Patent Nos. 6,129,766 and 6,537,322.
COMPONENT CHANGE
Increase Stride Control
Front Bumper up one step firmer
Decrease Stride Control
Front Bumper down one step softer
Increase Stride Control
Rear Bumper up one step firmer
Decrease Stride Control
Rear Bumper down one step softer
•
CPI Sock
•
Foot Shell
– 5:30
(EST). After hours,
am
pm
MADE IN THE USA
177 INS V TIS 141105
EMERGO EUROPE
Molenstraat 15, 2513 BH, The Hague, Netherlands
TECHNIC AL INS TRUC TIONS
PACKAGE CONTENTS
TOOLS REQUIRED

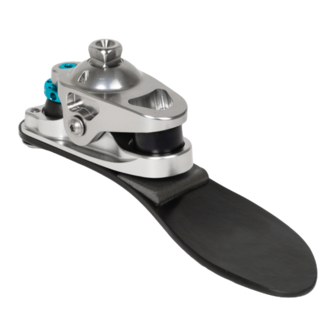

(1) Venture Foot
(1) 4 mm Hex Key
(1) 6 mm Hex Key
(1) Foot Shell
(1) CPI Sock™
RECOMMENDED
(1) Cosmetic Attachment Plate
FootHorn™
Pin Guide
(1) TruLube™ Lubricant
OPTIONAL
Exo Block Kit
Exo Pyramid Tool Kit
F E A T U R IN G :
• In te lli W ea ve ™
n o lo g y
co m p o si te te ch
l™
• S tr id eC o n tr o
io n
• Tr i- A xi al F u n ct
