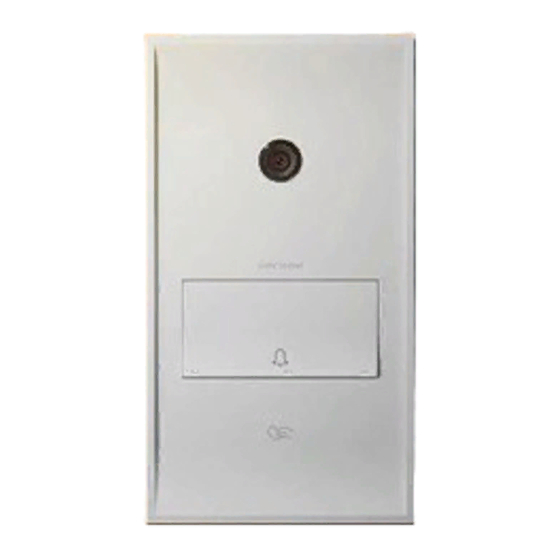

AMROAD P3
DOOR STATION
~
Technical Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P3 and is the answer not in the manual?

Questions and answers

Related Manuals for Amroad P3

Summary of Contents for Amroad P3

  • Page 1 AMROAD P3 DOOR STATION Technical Manual...

  • Page 3: Table Of Contents

    AMROAD P3 Contents Contents Camera Setting ........... 18 Contents ..........i Extension Setting ........20 Regulations and Safety Precautions ... 1 GPIO Settings ..........22 FCC Statement ..........1 RFID Setting ..........23 FCC Radiation Exposure Statement ..... 1 Information of adding cards ...... 24 EC Directive Compliance Statement ....

  • Page 4: Regulations And Safety Precautions

    AMROAD P3 Regulations and Safety Precautions Regulations and Safety Precautions EC Directive Compliance Statement FCC Statement Manufacturer claims that this product This product has been tested for compliance complies with basic requirements specified in with FCC Regulations Part 15, Specifications of statutory regulations in relation to health, Class B Digital Devices.

  • Page 5: Login

    Input the IP address of this product on your browser, then you will see home page of the AMROAD P3 appearing. Web UI is protected by Login ID and Password. Please key in the correct ID and password, and then click “Login” button to enter Web UI.

  • Page 6: Function Bar

    You can set language of the Webserver and the Changes have not been saved, it will show on account detail in “ACCOUNT SETTINGS”, as the top to remind you. shown below. “DISCARD」is discard the change you set after you saved last time. “REBOOT” is restart AMROAD P3 device.

  • Page 7: Logout

    AMROAD P3 LOGOUT LOGOUT On the left side of the upper corner, you can find “LOGOUT” inside Idle LOGOUT Before Saved If WEB lays idle for 3 minutes, it will show as If you don’t save the change before LOGOUT, below.

  • Page 8: Reboot

    AMROAD P3 REBOOT REBOOT REBOOT Before Saved If you don’t save the change before REBOOT, WEB will show as below. There are 3 options can choose, “SAVE & REBOOT”, “DISCARD & REBOOT” “CANCEL”.

  • Page 9: Tools

    AMROAD P3 TOOLS TOOLS Import Settings Update Firmware Import the setting file. Import the new firmware and DO NOT turn off or disconnect the Ethernet cable during Export Current Settings upgrade, for it may cause serious damage to this device.

  • Page 10: General

    AMROAD P3 GENERAL Device Overview GENERAL Device Overview This page shows the device information setting. Summary Live Status  Product NO  IP Type  Serial Number  IP Address  Hardware Version  SIP Mode  MAC Address  SIP Status ...

  • Page 11: General - Essential Step

    AMROAD P3 GENERAL Network Settings GENERAL – Essential Step Network Settings  IP Type：If you choose DHCP, the system will specify the following information automatically.  IP Address  Subnet Mask  Default Gateway  Primary DNS  Secondary DNS...

  • Page 12: Network Settings - Static Ip

    AMROAD P3 GENERAL Network Settings Network Settings – Static IP  IP Type：If you choose Static IP, you need to input the information below.  IP Address  Subnet Mask：Default is 255.255.255.0  Default Gateway  Primary DNS  Secondary DNS...

  • Page 13: Sip Settings

    AMROAD P3 GENERAL SIP Settings SIP Settings Enter SIP location and SIP number.
  • Page 14 AMROAD P3 GENERAL SIP Settings SIP Mode  Proxy Server Enabled：You may select “Yes” to register with PBX.  Proxy Server Address：You may fill in the IP address of SIP Registrar Server here.  Registrar Address：You may fill in the IP address of SIP Registrar Server here.

  • Page 15: Streaming Settings

    AMROAD P3 GENERAL Streaming Settings Streaming Settings Codec Priority Adjust image-related settings.  Audio Codec：Support G.711U and G.711A. Enable or Disable VAN setting.  Video Codec：Choose video encoding Bandwidth priorities, currently only supports H.263 and H.264.  Video Quality：Choose Video Bandwidth.

  • Page 16: Device Connection Settings

    AMROAD P3 GENERAL Device Connection Settings Device Connection Settings There are 3 Service Category for AMROAD P3. They are None, Access Control, and Security Service, and details will show as next page:...
  • Page 17 Access Control Often use “Access Control” in public area, and need to connect with electric lock with AMROAD P3. And control by AMROAD CCC. FUNCTION : Scan cards for open the door, and record data in AMROAD CCC. Amroad CCC URL：Need to input Amroad CCC URL for connecting with AMROAD CCC.

  • Page 18: General - User Preferences

    AMROAD P3 GENERAL Basic Preferences GENERAL – User Preferences Basic Preference Date & Time  Current User Time  Current User Date Click “SET”, the left picture of window will show, and you can set time.  Use NTP calibration：If you choose “No”, you should enter “User Date”, “User Time”...
  • Page 19 AMROAD P3 GENERAL Basic Preferences  If you choose “Yes” on the Use NTP calibration item, you also need to enter “NTP Server Address” and “User Location”.  User Location is Time Zone.

  • Page 20: Device Volume

    AMROAD P3 GENERAL Device Volume Device Volume  Conversation Volume：There are 4 levels. 4 is “Suitable for noisy environments”, 3 is “High”, 2 is “Suitable for every environments”, and 1 is “Where privacy is a concern”.  System Sound Volume ： There are 5 levels. 4 is “Very loud”, 3 is “Clear even in noisy...

  • Page 21: Camera Setting

    AMROAD P3 GENERAL Camera Setting Camera Setting  CMOS Color Balance：According to the surroundings, there are 3 choices for you, and they are Fluorescent Light, Yellow Tone Light, and Red Tone Light.
  • Page 22  No Answer Timer ： When visitor presses the door bell and no one answer the call, the AMROAD P3 will ring for a time period. You may select the time period- 15sec, 30sec, 45sec, or 60sec. Default is 15 seconds. The setting should be based on your IP PBX.

  • Page 23: Extension Setting

    AMROAD P3 GENERAL Extension Setting Extension Setting Alarm will be triggered while stealing. Anti-Tampering Setting  Service ： Alarm will be triggered while stealing. This is a “Burglarproof” function. Please disable this function when the device is not ready or during the device is repaired.
  • Page 24 AMROAD P3 GENERAL Extension Setting Email Inform Setting AMROAD P3 will take a picture after sensor is When you need to send an email, you need the triggered, scanning RFID card, or nobody following settings： answering the Door Station AMROAD P3. You can disable or enable the following three items ...

  • Page 25: Gpio Settings

    AMROAD P3 GENERAL GPIO GPIO Settings Set the Digital input and Output for the Entrance.  DI-PIN  DO-PIN  Trigger Signal  Trigger Signal  Active Duration  Unlock Alarm：Enable for alarm when door  Trigger By：Choose the way for triggering.

  • Page 26: Rfid Setting

    AMROAD P3 GENERAL GPIO Setting RFID Setting  Number of RFID Card User  Add RFID Card User by Master Card  Master Card  DELETE RFID CARD ： Select cards you would like to delete as shown right side.

  • Page 27: Information Of Adding Cards

    “Device Connection Settings” section. Security Service Access Control Add a new card by using AMROAD P3 which is Control and connect with AMROAD CCC, connected with AMROAD HOME STATION such AMROAD CCC authorizes cards directly.

  • Page 28: Io Application

    AMROAD P3 IO Application Electric Bolt IO Application Electric Bolt  The Electric Bolt is closed when +12 V is supplied.  The Electric Bolt is opened when +12V is not supplied.  DI1：DI1 is used to detect whether the...

  • Page 29: Electric Strike

    AMROAD P3 IO Application Electric Strike Electric Strike  The Electric Strike is opened when +12 V is supplied. The Electric Strike is closed when +12V is  not supplied. DI1： DI1 is used to detect whether the  magnetic reed is revert or not.

  • Page 30: Pir Motion Sensor And Light

    PIR Motion Sensor and Light PIR Motion Sensor and Light PIR Motion Sensor and Light AMROAD P3 can also connect PIR (Passive Infrared) motion sensor and Light. PIR motion sensor detect whether person (or living things) moves within the sensor range. Once PIR...

  • Page 31: Technical Detail

    Color camera DB3101R-FM-BA DIMENSIONS ∙ Type A F2.0 glass lens / 105° (All Black Cover Panel) W 110 × H 200 × D 52 (valid for all Amroad’s viewing angle DB3101R-FM-WH devices) AUDIO CODEC (Pure White Cover (protruding 7 mm...
  • Page 32 AMROAD P3 AMROAD TECHNOLOGY INC. 17F.-1, No.16, Jian 8th Rd., Zhonghe Dist., New Taipei City 235, Taiwan (R.O.C.) 886-2-8226-5686 886-2-8226-5687 info@amroad.com.tw WWW.AMROAD.COM.TW...
