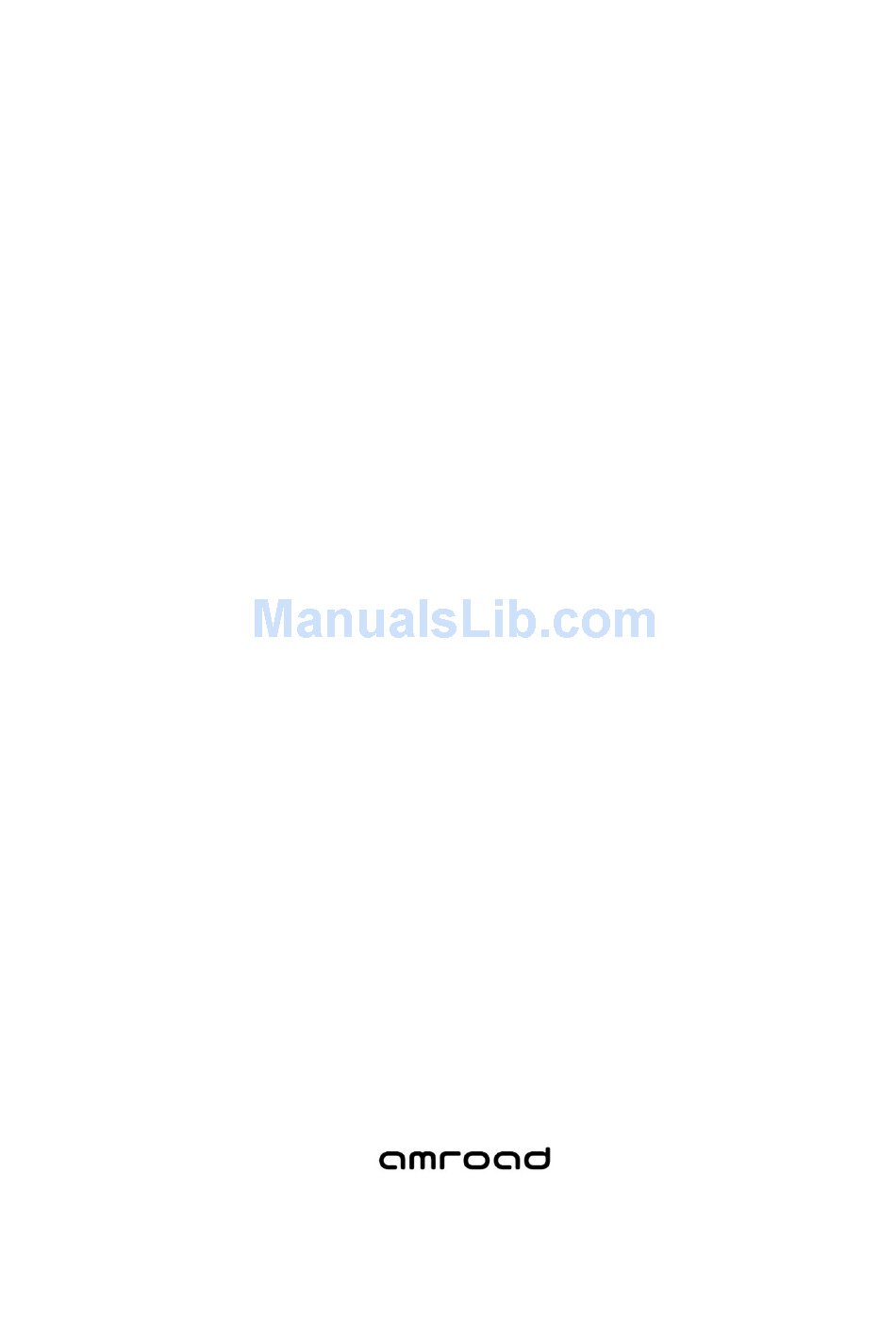

- Page 1 AMROAD DP100 COMMUNITY STATION Technical Manual...
-
Page 3: Table Of Contents
AMROAD DP100 Contents Contents Regulations and Safety Precautions26 Contents .......... i FCC Statement ........26 Preface ..........1 FCC Radiation Exposure Statement ..26 Front Panel ........2 EC Directive Compliance Statement ..26 Basic Operation ......3 RFID Card Usage ......4 Issue RFID Master Card ...... -
Page 4: Preface
Thank you for choosing this Video Door Phone. Talk to visitors with real time video and This DP100 is designed to co-work with IP Video voice on IP Video Phone or Video Indoor Phone to compose a SIP based door entry Station. -
Page 5: Front Panel
AMROAD DP100 Front Panel Front Panel... -
Page 6: Basic Operation
AMROAD DP100 Basic Operation Basic Operation Key in the extension number of the called party. Press “OK” button to make this call. You will see “Calling” on the LCD display and then bell sound (Ding-Dong) continually ring until receiving response. -
Page 7: Rfid Card Usage
DP100 will verify the database to determine whether to Open door or not. Issue RFID Master Card If AMROAD DP100 have not set the Master card yet, you can use an RFID card swipe become Master Card. We recommend that... -
Page 8: Functions Performed By The Ip-Pbx
AMROAD DP100 Functions Performed by the IP-PBX (Compatible with AMROAD IP-PBX) Functions Performed by the IP-PBX Simultaneous Ring The Distribution Policy is set to Ring All. e.g. When a visitor calls the group call (say extension 500), group members (say extensions 155, 157, and 166) will all ring simultaneously. -
Page 9: Web Ui
IP on browser, and Login Page mode. (WEB UI) will show as below. You can use AMROAD Configurator that we supplied. This software utility provided by your local distributor or local dealer which is able to help you to find your Community Station when using dynamic IP address. -
Page 10: Outline Of Web Ui Settings
AMROAD DP100 Outline of WEB UI Settings Outline of WEB UI Settings System Upgrade Basic Setting Upgrade Network Setting Configurations Login Name Number Entry Configure Reboot Have Your Own Home Screen AR APS ... -
Page 11: System
AMROAD DP100 System System Basic Settings Device ID：Device ID that assigned by Daylight Saving Time is a way of getting manufacturer. more light out of the day by advancing clocks by one hour during the summer. Date & Time：Here shows date and time set on this video door phone. - Page 12 Reboot Password：This feature allows you Sleep Mode：When you enable this to reboot the DP100. When you are function, the keypad will not light during pressing “CLEAR” button for 15 seconds, following time period except when any you get the “Input Password” indicator keypad is pressed.
-
Page 13: Network Setting
AMROAD DP100 System Network Setting MAC Address：This is a quasi-unique identifier attached to most network adapters. IP Type: The default value is DHCP Client. DHCP Client：The system will automatically assign you an IP address. Static IP: You have to input IP address, ... -
Page 14: Login Name
System Login Name Reboot The default ID and password for system login When user needs to reboot DP100 remotely, are admin and admin. just click “Reboot” button on this webpage to start this action. After confirm rebooting, Web User may change his Login ID and Password on... -
Page 15: Streaming Settings
AMROAD DP100 Streaming Settings Streaming Settings Video Codec Priority： Bandwidth：Select preferred bandwidth for video and audio streaming. There are 4 First－Codec - H.263； options: 128Kbps, 256Kbps, 384Kbps, and 512Kbps. Please check which bandwidth is Second－Codec - H.263 or Disable. - Page 16 Select according to the lighting environment： Fluorescent Light, Yellow Lamps and Orange Lamps. DP100 can’t get the correct value of the CMOS brightness in some environment, please adjust the brightness value via the AMROAD IP Video Phone by pressing “2”(brighter) or...
-
Page 17: Audio
When “User Define” is selected, recommend not to modify. The following Comfortable-Noise-Generate function here. The DP100 will generate background two items appears： noise when receiving silence packet from Noise Threshold (db)：Default is -40.The the other end if this feature is enabled. -
Page 18: Sip Settings
Display Name. When the Door Bell is pressed, there will be “Preview” function and Doorbell Account ID：You may fill in your account sound on AMROAD IP Video Phone/Video name of SIP service in this field. For Indoor Station. example, 103. - Page 19 AMROAD DP100 SIP Settings SIP Proxy Server Media Timer (0~180)：This setting allows Service：Select “Enable” or “Disable” the your phone to force release automatically SIP Proxy Server in the dropdown menu. a conversational call when your phone IP Address：Fill in the IP address of SIP ...
-
Page 20: Entrance Settings
Export Mapping File：This item allows you setting. to export existing mapping file (*.CSV) from DP100. The exported mapping file may be a good example for you. Press “Export” button to start exporting existing mapping file and save on your... - Page 21 #4, 104, 104-1F, 0 enabled – it indicates “Please Press OK to Operator!” on the LCD screen. When you #5, 105, 105-1F, 0 press OK, DP100 will dial the #6, 106, 106-1F, 0 corresponding number. #7, 107, 107-1F, 0 ...
-
Page 22: Gpio
Electric Door Lock. Press “#” to unlock by：Press the “#” key a few seconds from your AMROAD IP Video Phone or Video Indoor Station can trigger the function during answering the phone call. You can select the timer here. -
Page 23: Rfid
AMROAD DP100 Entrance Settings RFID Erase ALL RFID：To delete the records of Master Card：This field will display the issued RFID card numbers can be card number of the Master RFID Card. By executed here. default, this field is null. Scan a new RFID Card for the first time, and it will be set as Master RFID Card. -
Page 24: Upgrade
The Upgrade function allows you to upgrade Browse button to pop up a File dialog box firmware of the DP100. The ways to upgrade to select the location of the new firmware the firmware are via Web UI. that you wish to upgrade. -
Page 25: Configurations
file, you can press Upload button to start the importing. Export File：You can also use Export File to back up DP100 settings on your computer. Download：Press Download button to export, and you are prompted to click “Open” or “Save” for NewConfiguration.xml. -
Page 26: Ar Aps
AR APS This webpage allows manufacturing factory to perform management function through APS (Auto Provision Server) APS Server：This allows you to upgrade firmware of DP100 through network. APS Server： https://rc.amroad.com.tw/aps/TaServlet/ doorphone.php Save：Click this button to save your... -
Page 27: Io Application
AMROAD DP100 IO Application Electric Bolt IO Application Electric Bolt The Electric Bolt is closed when +12 V is supplied. The Electric Bolt is opened when +12V is not supplied. When the electronic circuit connected with the Electric Bolt completely, you should choose “Positive”... -
Page 28: Electric Strike
AMROAD DP100 IO Application Electric Strike Electric Strike The Electric Strike is opened when +12 V is supplied. The Electric Strike is closed when +12V is not supplied. When the electronic circuit connected with the Electric Strike completely, you should choose “Negative”... - Page 29 AMROAD DP100 Regulations and Safety Precautions Regulations and Safety Precautions FCC Statement EC Directive Compliance Statement This product has been tested for compliance Manufacturer claims that this product with FCC Regulations Part 15, Specifications of complies with basic requirements specified in Class B Digital Devices.
- Page 32 AMROAD TECHNOLOGY INC. 17F.-1, No.16, Jian 8th Rd., Zhonghe Dist., New Taipei City 235, Taiwan (R.O.C.) 886-2-8226-5686 886-2-8226-5687 info@amroad.com.tw WWW.AMROAD.COM.TW...
