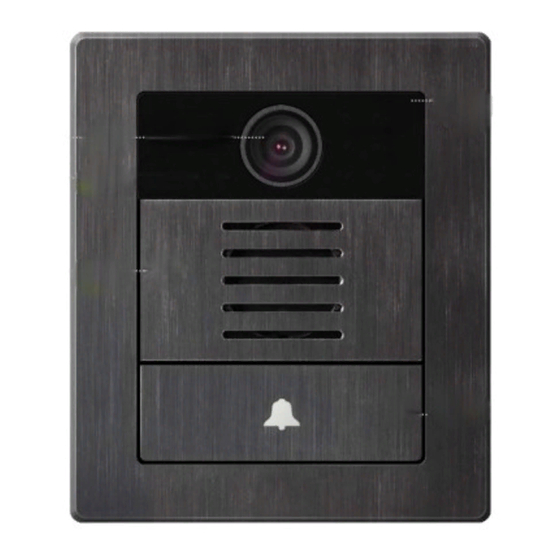

- Page 1 AMROAD DP3211 DOOR STATION Installation Manual...
-
Page 3: Table Of Contents
AMROAD DP3211 Contents Contents Contents..........i Package Contents ....... 1 The Size of Main Unit ......2 Rear Side ........... 3 Reset Button ..........3 Installing Procedures ......4 Back Plate ............. 4 Wire and Cable Connection ......5 Install Main Unit .......... 6 IO Application ........ -
Page 4: Package Contents
AMROAD DP3211 Package Contents Package Contents 1. Main Unit x1 5. Relay Board x1 2. Back Plate x1 6. Screws (M3-L6) X2 3. 5-Pin Terminal Connector x1 + Cord End 7. Screw (M3-L4) for Earth Wire x1 Terminal (Yellow x5) 4. -
Page 5: The Size Of Main Unit
AMROAD DP3211 The Size of Main Unit The Size of Main Unit... -
Page 6: Rear Side
AMROAD DP3211 Rear Side Rear Side Reset Button 1. The device will be switched to the static IP mode and reboot itself when the user has pressed the reset button for 3 seconds. IP is "192.168.0.50". 2. When the button has been pressed for... -
Page 7: Installing Procedures
AMROAD DP3211 Installing Procedures Back Plate Installing Procedures Back Plate 1. Make sure that is able to let the Power Notice： Cord, GPIO wires, Ethernet cable, and Do not force overload when fastening the Back Ground Wire pass through the hole. The Plate. -
Page 8: Wire And Cable Connection
AMROAD DP3211 Installing Procedures Wire and Cable Connection Wire and Cable Connection 1. Connect 12V DC power cord & GPIO； Connect Ethernet Cable ； Connect Ground wire (use screw M3-L4). 2. Use Ferrule Crimping Tool to crimp Cord End Terminal with wire tight. -
Page 9: Install Main Unit
5. The protective film on the Main Unit back plate meet closely, it means that should not be torn up during installation. the DP3211 will be with better waterproof Do not tear up the protective film until function. new residents move in the house. -
Page 10: Io Application
AMROAD DP3211 IO Application Press # IO Application Press # - Electric Strike If you would like to use Electric Bolt, The Electric Strike is opened when +12V is please follow the figure above. But the supplied. setting on WEB is different, please check ... -
Page 11: Di - Electric Strike With Door Open Lock
AMROAD DP3211 IO Application DI – Electric strike with door open lock If you would like to use Electric Bolt, The Electric Strike is opened when +12V is please follow the figure above. But the supplied. setting on WEB is different, please check The Electric Strike is closed when +12V is ... -
Page 12: Doorbell - Light
AMROAD DP3211 IO Application Doorbell Doorbell - Light Once Doorbell rings, it will trigger the Light to be turn on for a period of time (depends on the setting on WEB UI). Please follow the figure above to connect Light, and read Technical Manual to set WEB UI. -
Page 13: Regulations And Safety Precautions
AMROAD DP3211 Regulations and Safety Precautions Regulations and Safety Precautions FCC Statement EC Directive Compliance Statement This product has been tested for compliance with FCC Regulations Part 15, Specifications of Manufacturer claims that this product Class B Digital Devices. These limitations... - Page 15 AMROAD TECHNOLOGY INC. 17F.-1, No.16, Jian 8th Rd., Zhonghe Dist., New Taipei City 235, Taiwan (R.O.C.) 886-2-8226-5686 886-2-8226-5687 info@amroad.com.tw WWW.AMROAD.COM.TW...
