Summary of Contents for Amroad DB3100R

  • Page 2 All Rights Reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system or translated into any language in any form or by any means without the express written permission of Amroad Technology Inc. To obtain consent, write to the attention of Amroad Technology Inc.

  • Page 3: Table Of Contents

    Chapter 3 : Installing Video Door Phone 9 Suggested Installation Position View Angle Installion Procedures 1. Prepare Flush-Mounted Box 2. Secure Flush-Mounted Box on Steel Frame 3. Wire and Cable Connection 4. Installing DB3100R Unit Reset Button Connecting to Ground Wire...
  • Page 4 Making Calls From Video Door Phone Answering Calls on IP Video Phone Open the Door Common Controls DB3100R RFID Card Usage Issue Master RFID Card First Time Issue a New Card with Master RFID Card: Wall Lamp and RFID LED Indicators...
  • Page 5 Upgrade –Upgrade Upgrade –Configuration AR APS Functions Performed by the IP-PBX (Compatible with Amroad IP-PBX) Appendix A : IO Application 45 Electronic Lock Wiring Connection and Web Page Setup Electronic Bolt Electronic Strike Appendix B : Regulatory Information 49 FCC STATEMENT...

  • Page 6: Chapter 1: Introduction

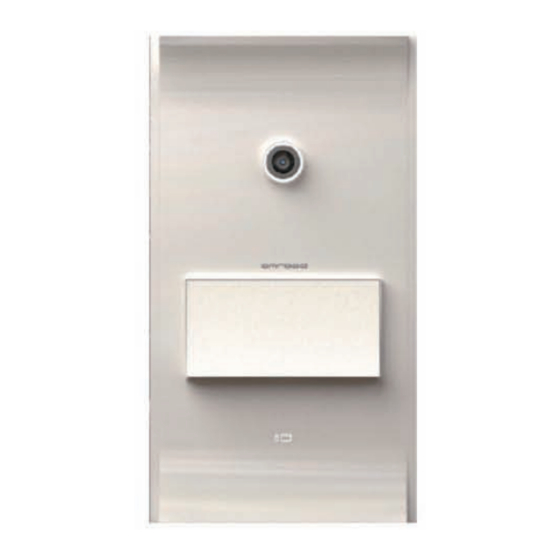

    Scan RFID card to open the door • Support PoE (Power over Ethernet, 802.3af) module (External power supply AC 48V In) Figure 1: DB3100R • Web user interface for configuration and management. Please read this user guide before installing the device. Please contact your dealers or system integrators if you have questions.

  • Page 7: General Application Of Door Entry System

    There are two major series of Video Door Phone: community series and single unit series. They are applied on different conditions. DB3100R is designed for Unit in Luxury Apartment Building Application. It can work with IPBX servers to communicate with other SIP-based devices.

  • Page 8: Use Of Sip

    SIP based devices over IP Network. There are few typical applications of SIP products, please refer to Figure 4: • Ring the Door Bell from Video Door Phone (DB3100R) to IP Video Phone (VP113/P)/Video Indoor Station (ID5101)/IPC Softphone Figure 3: General SIP Application • Make a DB3100R live-video view phone call from IPC Softphone /IP Video Phone / Video Indoor station. • Make a video phone call from ID5101 Video Indoor Station to VP113 IP video phone.
  • Page 9 DB3100R VIDEO DOOR PHONE Amroad Technology Inc.

  • Page 10: Chapter 2 : Knowing Video Door Phone

    13. Tool for removing the Front Panel from Video Door Phone Unit 14. Quick Installation Guide & Quick Start Guide (English and Chinese) Please contact your dealer immediately if any item(s) is missing. Figure 4: Package Contents Amroad Technology Inc.

  • Page 11: Front Panel

    DB3100R VIDEO DOOR PHONE Front Panel Figure 5: Front Panel Amroad Technology Inc.

  • Page 12: Rear Panel & Side View

    MANUAL FOR SYSTEM INTEGRATOR Rear Panel & Side View Figure 6: Rear Panel & Side View Amroad Technology Inc.
  • Page 13 There is a “VOID” sticker on the left side of the DB3100R. This VOID sticker is used to prevent opening the case and tampering concealment. Amroad shall not be respon- sible under warranty if the VOID sticker is broken or removed.

  • Page 14: Dimensions

    MANUAL FOR SYSTEM INTEGRATOR Dimensions Figure 7: Dimensions Amroad Technology Inc.
  • Page 15 DB3100R VIDEO DOOR PHONE Amroad Technology Inc.

  • Page 16: Chapter 3 : Installing Video Door Phone

    IP Video Phone or Video Indoor Station, the view angle of this video door phone should be less than 105 NOTE: The height of the camera lens is suggested at the distance of 155 cm above the floor. Figure 8: Suggested Installation Position Amroad Technology Inc.

  • Page 17: Installion Procedures

    DB3100R VIDEO DOOR PHONE Installion Procedures 1. Prepare Flush-Mounted Box Before installing the Flush-Mounted Box, you can fasten four screws on Flush-Mounted Box as shown in Figure. This will make Flush-Mounted Box be mounted on the wall more firmly and securely after grouting foam concrete.

  • Page 18: Secure Flush-Mounted Box On Steel Frame

    Use four Drill Screws to secure Flush-Mounted Box on Steel Bars in the Steel Frame. At the same time, a bub- ble level is used to ensure Flush-Mounted Box is level. Figure 10: Secure Flush Mounted Box to Steel Frame Amroad Technology Inc.

  • Page 19: Wire And Cable Connection

    Wire and cable go through wall and corrugated tube, and are used for DC power, network connection, and relay control. There are IO connectors on the rear side of the DB3100R. They are for DC power, Ethernet port (RJ-45 connector), and GPIO wire. Please refer to the Figure and following sec- tion- GPIO &...

  • Page 20: Installing Db3100R Unit

    MANUAL FOR SYSTEM INTEGRATOR 4. Installing DB3100R Unit Before installing DB3100R on the wall, Flush-Mounted Box should be first mounted on the wall firmly. The following diagram shows the detail on how to install DB3100R Unit into Flush-Mounted Box. Secure DB3100R Main Unit...

  • Page 21: Reset Button

    The default IP type setting of the Video Door Phone is “DHCP Client “. A. Pressing the reset button for 3 seconds=>DB3100R will turn into Statics IP mode as “192.168.0.50” and reboot by itself. B. Or pressing for over 6 seconds =>Turn to DHCP mode as the default value and reboot by itself (Restore to factory setting).

  • Page 22: Connecting To Ground Wire

    To prevent power surge and lighting strike from damaging DB3100R, Flush-Mounted Box should be connected to the ground wire (earth wire) of the building. Connect the wire of DB3100R to Flush-Mounted Box as shown in Figure. Remember to tighten the screws on both sides.
  • Page 23 DB3100R VIDEO DOOR PHONE Amroad Technology Inc.

  • Page 24: Chapter 4 : Use Of The Video Door Phone

    Electronic-door-lock. Please refer to Appendix A. Figure 15: Press Door Bell Common Controls - You may press the “2” or “8” key of the Video phone to adjust the CMOS brightness. Amroad Technology Inc.

  • Page 25: Db3100R Rfid Card Usage

    Residents scan RFID card on the scanning zone. DB3100R will verify the database to determine whether to Open door or not. Issue Master RFID Card First Time Without any cabling, just scan RFID card on the DB3100R scanning zone when the DB3100R device 1st time on-line. The RFID card will be seen as Master RFID Card.

  • Page 26: Wall Lamp And Rfid Led Indicators

    Wall Lamp and RFID LED Indicators On the top of the DB3100R’s front panel, there are white light LEDs for acting as Wall Lamp. When doorbell is pressed, wall lamp turns on gradually and projects diffuse light. When the conversation is ended, wall lamp turns off slowly.

  • Page 27: Status Led

    DB3100R VIDEO DOOR PHONE Status LED There is another 3-color LED Indicator hidden behind the front panel at the bottom-right corner. Once DB3100R is out of order, this LED helps technical support staff in troubleshooting. Green LED Red LED Blue LED...

  • Page 28: Audio Announcement

    MANUAL FOR SYSTEM INTEGRATOR Audio Announcement To fit some specific scenarios, DB3100R will automatically play following audio announcement to remind residents. Audio Announcement Scenario “Please Scan Your New Card” DB3100R plays this audio announcement after scanning Master RFID Card on RFID scanning zone and user is ready to issue new card.
  • Page 29 DB3100R VIDEO DOOR PHONE Amroad Technology Inc.

  • Page 30: Chapter 5 : Configuring Video Door Phone

    Video Door Phone when using dynamic IP address. Please execute following utility: AmRoad Search Tool.exe You will see a window pop up on screen. This utility will search whole network segment automatically when utility is activated, then it will show search results.

  • Page 31: Entering Web User Interface

    DB3100R VIDEO DOOR PHONE Entering Web User Interface Input the IP address of this product on your browser, then you will see home page of the Video Door Phone appearing. Web UI is protected by Login ID and Password. Press the “Login” button, then you will see input fields: Login ID and Password.

  • Page 32: System - Basic Settings

    Network Time Pro- Enable NTP Calibration service to allow the system to calibrate the time with NTP server tocol through Internet. NTP Server Address You may use your preferred NTP server by input new address here. Amroad Technology Inc.

  • Page 33: System - Networking Settings

    DB3100R VIDEO DOOR PHONE System - Networking Settings Item Description MAC Address This is a quasi-unique identifier attached to most network adapters. IP Type The default value is DHCP Client. There are three options: DHCP Client, Static IP and PPPoE.

  • Page 34: System Login Name

    Figure 21: Login Name System Reboot When user needs to reboot DB3100R remotely, just click “Reboot” button on this webpage to start this action. After confirm rebooting, Web User Inter- face will back to the home page, but the video door phone may take 30~60 seconds to restart its system.

  • Page 35: Streaming Settings - Video

    DB3100R VIDEO DOOR PHONE Streaming Settings – Video You may set change the video settings in this page. Item Description Bandwidth You may select preferred bandwidth for video and audio streaming. There are 4 options: 128Kbps, 256Kbps, 384Kbps, and 512Kbps. Please check which bandwidth is suitable for you with your service pro- vider.
  • Page 36 Save Click this button to save your setting. NOTE: If DB3100R can’t get the correct value of the CMOS brightness in some environment, please adjust the brightness value via IP Video phone by pressing “2”(brighter) or “8”(darker) during conversation. Amroad Technology Inc.

  • Page 37: Streaming Settings - Audio

    (-23db). (Acceptable value -20~-32) You may enable or disable Voice-Active-Detection function here. The DB3100R will detect back- ground noise and send silence packet to the other end if this feature is enabled. This allows called party to hear better audio quality.

  • Page 38: Sip Settings

    Service You may select “Enable” or “Disable” the SIP Proxy Server in the dropdown menu. NOTE: For Peer-to-Peer mode, both devices (DB3100R and remote device) need to select Disable in the dropdown menu. And, fill in each other’s IP address.
  • Page 39 NOTE: If you want to disable this feature, please fill in “0” sec. No Answer When visitor presses the door bell and no one answer the call, the DB3100R will ring for a time period. You may select the time period- 15sec, 30sec, 45sec, or 60sec. Default is 15 seconds.

  • Page 40: Entrance Settings - Extensions

    Select Disable or Enable for alarm sound when the alarm is triggered. Notice Number You may fill in the IP Video phone number here. The Figure 26: Entrance Settings via Message device will inform the IP Video Phone when the internal (SIP) alarm is triggered. Amroad Technology Inc.
  • Page 41 ICMS will receive the message when Internal Alarm is triggered. Email Setting DB3100R will take a picture after sensor is triggered, scanning RFID card, or nobody answering the Video Door Phone DB3100R. You can disable or enable the following three items for system to send email with picture.
  • Page 42 TLS (Transport Layer Security) is a network protocol that ensures privacy between email servers on communicating applications. Mail To Input e-mail address which you want to send to. Save Click this button to save your setting. Amroad Technology Inc.

  • Page 43: Entrance Settings - Gpio

    DB3100R VIDEO DOOR PHONE Entrance Settings – GPIO You may configure GPIO in this page: Item Descrition DO1 Service DO1 Service is used to connect with AR Relay Board to control“Electronic Door Lock”. The function can be triggered by the following ways.
  • Page 44 Click this button to save your setting. NOTE: Be careful with the wires connection of GPIO, especially the default polar voltage of hardware (digit output pins) is high. Please select and set the related Electronic circuit to meet the hardware initial voltage. Amroad Technology Inc.

  • Page 45: Entrance Settings -Rfid

    DB3100R VIDEO DOOR PHONE Entrance Settings –RFID You can get the related RFID information and delete the issued RFID Cards here. Item Descrition Master Card This field will display the card number of the Mas- ter Card. By default, this field is null.
  • Page 46 MANUAL FOR SYSTEM INTEGRATOR Item Descrition Erase RFID Number You can input the specific issued RFID card number in the field and press Erase RFID Card to delete it. Amroad Technology Inc.

  • Page 47: Upgrade -Upgrade

    DB3100R VIDEO DOOR PHONE Upgrade –Upgrade This section allows you to upgrade firmware of DB3100R through network. Item Descrition Hardware Version This field shows hardware version number. Software Version This field shows current firmware version number. Language This field shows the language of speech announ- ment.

  • Page 48: Upgrade -Configuration

    Upload After selecting the configuration file, you can press Upload button to start the importing. Export File You can also use Export File to back up DB3100R settings on your computer. Press Download button to export, and you are Download Figure 30: Upgrade- Configuration prompted to click “Open”...

  • Page 49: Ar Aps

    DB3100R VIDEO DOOR PHONE AR APS Adminstrator can perform system management function through this AR APS (Auto Provision Server) webpage. Item Descrition APS_Server This allows adminstrator perform system management through the following URL. APS_Server: https://rc.amroad.com.tw/aps/TaServlet/ doorphone.php Save Click this button to save your setting.

  • Page 50: Functions Performed By The Ip-Pbx (Compatible With Amroad Ip-Pbx)

    MANUAL FOR SYSTEM INTEGRATOR Functions Performed by the IP-PBX (Compatible with Amroad IP-PBX) Simultaneous Ring –The Distribution Policy is set to Ring All. e.g. When a visitor calls the group call (say extension 500), group members (say extensions 155, 157, and 166) will all ring simultaneously.
  • Page 51 DB3100R VIDEO DOOR PHONE Amroad Technology Inc.

  • Page 52: Appendix A : Io Application

    Appendix A : IO Application Electronic Lock The DB3100R can connect with various Electronic locks, including Electronic Strikes, Electronic Bolts and Electromagnetic locks. Wiring Connection and Web Page Setup There are two types of Electronic door lock applications as below.
  • Page 53 DB3100R VIDEO DOOR PHONE When the wire connection is completed, we need to select the “Positive” for Electronic Bolt on the GPIO page of Entrance Setting on DB3100R WEB User Interface. DI1 (Trigger Default) : High (Low->High) DI1 is used for is used for detecting whether the door is closed or not.

  • Page 54: Electronic Strike

    Phone/Video Indoor Station to open the door during answering the doorbell. When the wire connection is completed, we need to select the “Negative” for Electronic Strike on the GPIO page of Entrance Setting on DB3100R WEB User Inter- face. Amroad Technology Inc.
  • Page 55 DB3100R VIDEO DOOR PHONE Amroad Technology Inc.

  • Page 57: Ce Declaration Of Conformity (Europe)

    DB3100R VIDEO DOOR PHONE CE DECLARATION OF CONFORMITY (EUROPE) Manufacturer declares that this product conforms to the specifications listed below, following the provisions of the European R&TTE directive 1999/5/EC: • EN 301 489-1, 301 489-17 General EMC requirements for Radio equipment • EN 609 50 Safety...
  • Page 58 MANUAL FOR SYSTEM INTEGRATOR Amroad Technology Inc.
