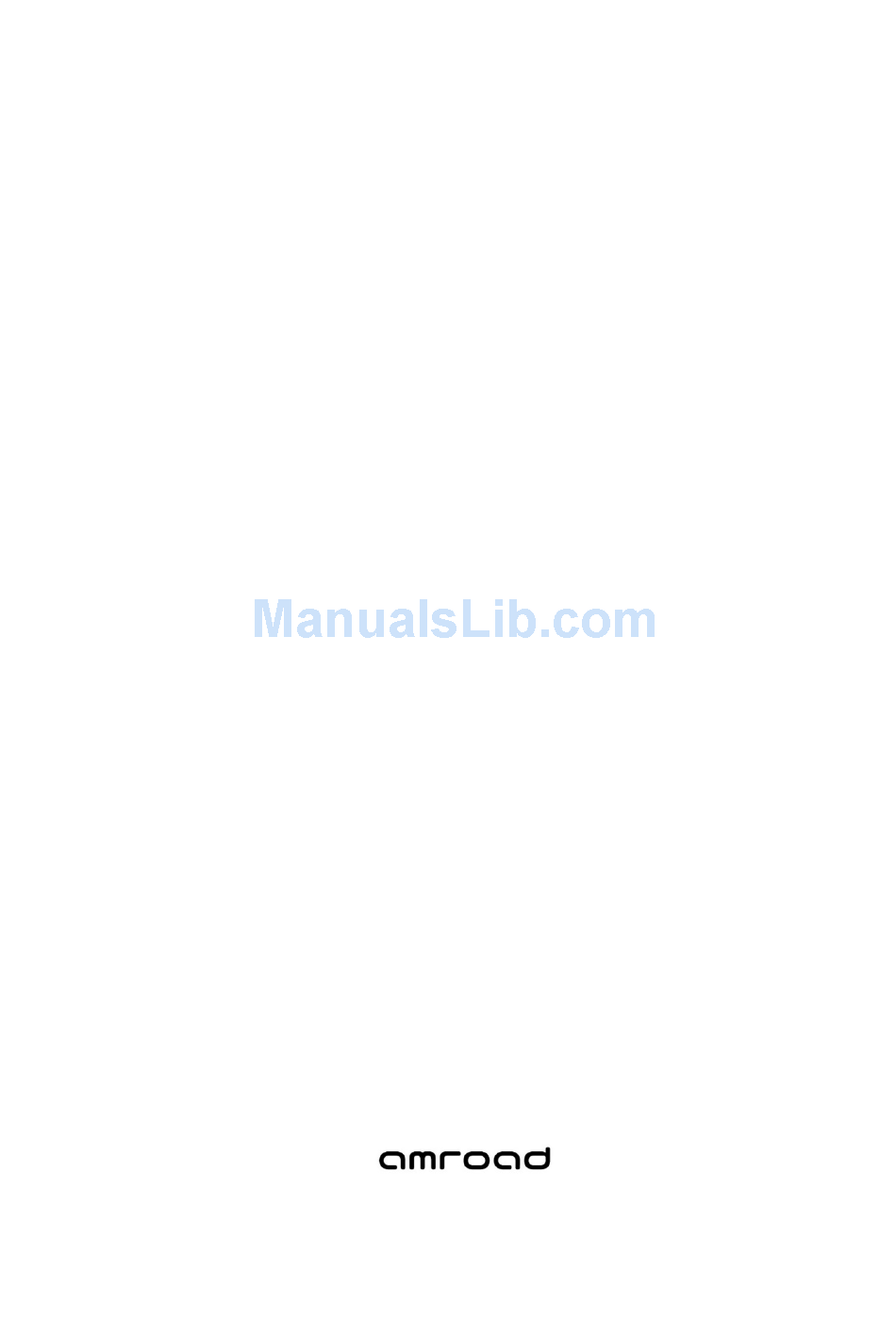

  • Page 1 AMROAD DP3210 DOOR STATION Technical Manual...

  • Page 3: Table Of Contents

    AMROAD DP3210 Contents Contents Contents .......... i APS ............20 Preface ..........1 Regulations and Safety Precaution 21 Front Panel ........2 FCC Statement ........21 Status Indicator ......3 FCC Radiation Exposure Statement ..21 Functions Performed by the IP-PBX 4 EC Directive Compliance Statement ..

  • Page 4: Preface

     Build-in speaker and microphone. Certificates, Certify your safety  Water and dust resistance capabilities AMROAD full range products passed European (IP55). CE, USA FCC, BSMI/NCC Taiwan. All these Web user interface for configuration and  certificates promise tenants a harmless management.

  • Page 5: Front Panel

    AMROAD DP3210 Front Panel Front Panel 3-Color LED Indicator Microphone Lens Module White Light LEDs Speaker Doorbell...

  • Page 6: Status Indicator

    AMROAD DP3210 Status Indicator Status LED Door Bell Description Green LED Red LED Blue LED Button (Green LED) Boot is initiated. ON for 1 second ON for 1 second WL LED is also On for 1 second. Blinking (3-sec Boot procedure 1st stage, OS On, one-sec Initial.

  • Page 7: Functions Performed By The Ip-Pbx

    AMROAD DP3210 Functions Performed by the IP-PBX (Compatible with AMROAD IP-PBX) Functions Performed by the IP-PBX Simultaneous Ring The Distribution Policy is set to Ring All. e.g. When a visitor calls the group call (say extension 500), group members (say extensions 155, 157, and 166) will all ring simultaneously.

  • Page 8: Web Ui

    IP on browser, and Login Page mode. (WEB UI) will show as below. You can use AMROAD Configurator that we supplied. This software utility provided by your local distributor or local dealer which is able to help you to find your Door Station when using dynamic IP address.

  • Page 9: Outline Of Web Ui Settings

    AMROAD DP3210 Outline of WEB UI Settings Outline of WEB UI Settings System Basic Setting  Network Setting   Login Name  Reboot Streaming Settings  Video Audio  SIP settings Authentication   SIP Proxy  SIP Registrar Server Entrance Settings ...

  • Page 10: System

    AMROAD DP3210 System System Basic Settings Daylight Saving Time is a way of getting more light out of the day by advancing clocks by one Device ID：Device ID that assigned by  hour during the summer. manufacturer.  Network Time Protocol：Enable NTP ...

  • Page 11: Network Setting

    AMROAD DP3210 System Network Setting  Save：Click this button to save your  MAC Address：This is a quasi-unique setting. identifier attached to most network adapters. IP Type(The default value is DHCP Client.)  DHCP Client：The system will automatically assign your Video Door Phone an IP address.

  • Page 12: Login Name

    System Login Name Reboot The default ID and password for system login When user needs to reboot AMROAD DP3210 are admin and admin. remotely, just click “Reboot” button on this webpage to start this action. After confirm User may change his Login ID and Password on...

  • Page 13: Streaming Settings

    AMROAD DP3210 Streaming Settings Streaming Settings Video Bandwidth：You may select preferred   Codec Priority： bandwidth for video and audio streaming. First – You may select the Video There are 4 options : 128Kbps, 256Kbps, streaming priority - H.263. 384Kbps, and 512Kbps..
  • Page 14 AMROAD DP3210 Streaming Settings  Power Line Frequency：You may select the power frequency according to your local power specifications. Wrong power frequency may cause the video flicking abnormally. Default setting is 60Hz.  CMOS Static Brightness：This item allows you to adjust the brightness of CMOS according to the lighting environment of the installed location.

  • Page 15: Audio

     CNG：You may enable or disable Comfortable-Noise-Generate function here. The AMROAD DP3210 will generate background noise when receiving silence packet from the other end if this feature is enabled. This allows called party to hear better audio quality.

  • Page 16: Sip Settings

    Account ID：You may fill in your account is pressed, there will be “Doorbell” sound, and enable function of “Preview name of SIP service in this field. Picture” on AMROAD Home Station.  Account Password：You may fill in the password of your SIP service account.
  • Page 17 No Answer Timer：When visitor presses SIP Registrar Server the door bell and no one answer the call, the AMROAD DP3210 will ring for a time  IP Address：You may fill in the IP address period. You may select the time period- of SIP Registrar Server here.

  • Page 18: Entrance Settings

    AMROAD DP3210 Entrance Settings Entrance Settings...

  • Page 19: Extensions

    AMROAD DP3210 Entrance Settings Extensions Internal Alarm Alarm will be triggered while stealing. You may configure call services in this page：  Service：This is a “Burglarproof” function.  Called Party Extension Number：Fill in the Please disable this function when the extension number.
  • Page 20 AMROAD DP3210 Entrance Settings Email Setting  Trigger By No Answer：When this feature  Mail To：Input e-mail address which you is enabled, and No Answer Timer no want to send to. answer within the time, it will Save：Click this button to save your ...

  • Page 21: Upgrade

    Select Software file：You may press  This section allows you to upgrade firmware of Browser button to pop up a File dialog AMROAD DP3210 through network. box to select the location of the new Hardware Version：This field shows  firmware that you wish to upgrade.

  • Page 22: Configurations

    Upload button to start the importing. Export File ： You can also use Export File to  back up AMROAD DP3210 settings on your computer. Download：Press Download button to  export, and you are prompted to click “Open”...

  • Page 23: Aps

    AMROAD DP3210 Upgrade Administrator can perform system management function through this AR APS (Auto Provision Server) webpage. APS Upgrade：For engineering. ...

  • Page 24: Regulations And Safety Precaution

    AMROAD DP3210 Regulations and Safety Precautions Regulations and Safety Precaution FCC Statement EC Directive Compliance Statement This product has been tested for compliance Manufacturer claims that this product with FCC Regulations Part 15, Specifications of complies with basic requirements specified in Class B Digital Devices.
  • Page 28 AMROAD TECHNOLOGY INC. 17F.-1, No.16, Jian 8th Rd., Zhonghe Dist., New Taipei City 235, Taiwan (R.O.C.) 886-2-8226-5686 886-2-8226-5687 info@amroad.com.tw WWW.AMROAD.COM.TW...
