Kramer VP-427H2 Quick Start Manual

VP-427H2 Quick Start Guide
This guide helps you install and use your VP-427H2 for the first time.
Go to
upgrades are available.
Scan for full manual
Step 1: Check what's in the box
VP-427H2 4K HDBT to HDMI Receiver/Scaler
1 Power adapter and cord

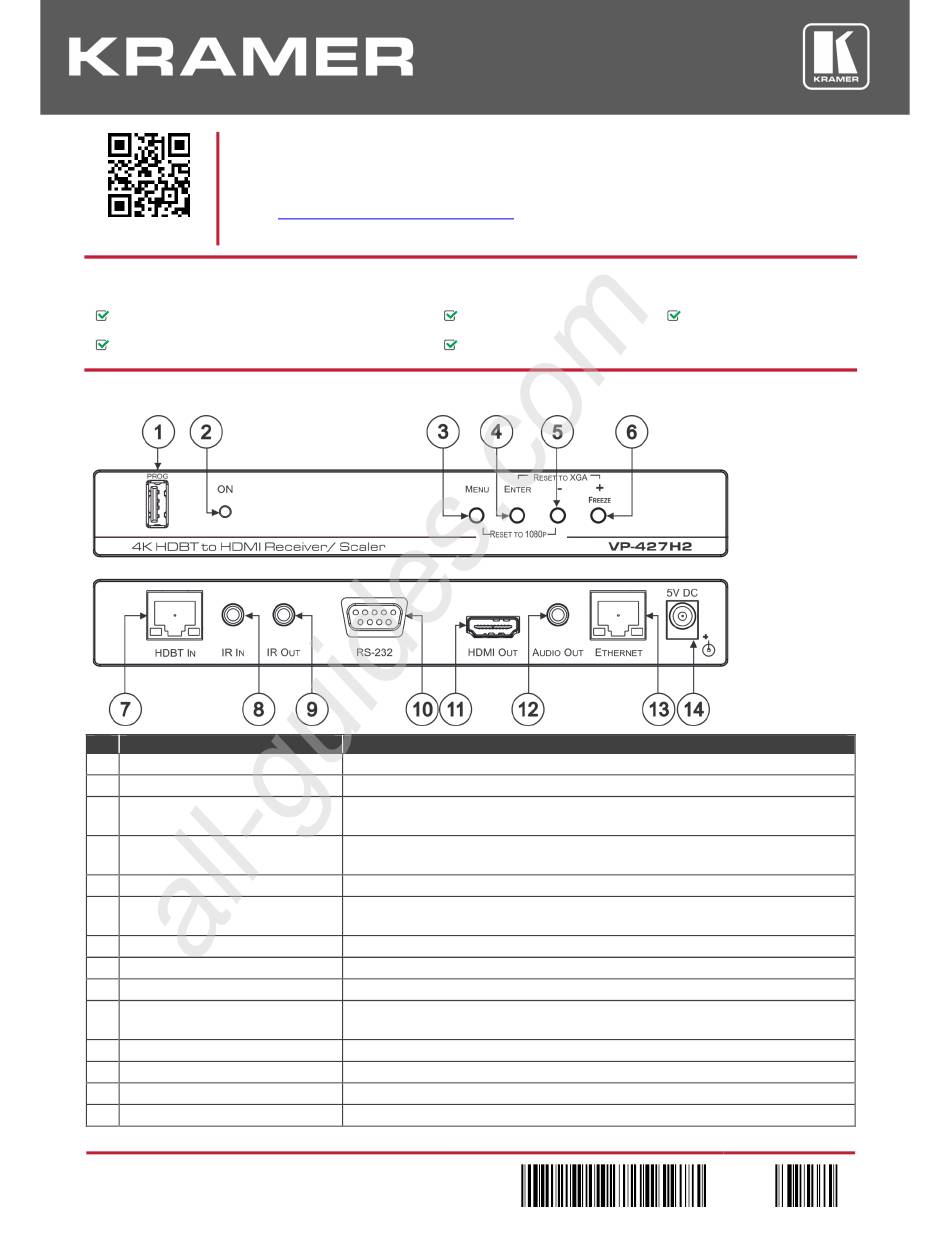

Step 2: Get to know your VP-427H2

# Feature
1 PROG USB Connector
2 ON LED
3 MENU Button
4 ENTER Button
5 –
6 +/FREEZE Button
7 HDBT IN RJ-45 Connector
8 IR IN 3.5mm Mini Jack
9 IR OUT 3.5mm Mini Jack
10 RS-232 9-pin D-sub Connector
11 HDMI OUT Connector
12 AUDIO OUT 3.5mm Mini Jack
13 ETHERNET RJ-45 Connector
14 5V DC
VP-427H2 Quick Start (P/N: 2900-300831QS REV 4)
All manuals and user guides at all-guides.com
www.kramerav.com/downloads/VP-427H2
Function
Connects to a USB memory stick for programming upgrade
Lights green when the unit is powered on
Press to enter/exit the on-screen display (OSD) menu. Press together with the –
button to reset to 1080p
In OSD, press to choose the highlighted menu item. Press together with the
+/FREEZE button to reset to XGA
In OSD, press to move back through the list or to decrement the parameter value
In OSD, press to move forward through the list or to increment the parameter value.
When not in OSD, press to freeze the display
Connects to an HDBaseT transmitter
Connects to an IR sensor
Connects to an IR emitter
Connects to an acceptor to embed/de-embed control commands in the HDBaseT data
stream
Connects to an HDMI acceptor
Connects to an unbalanced stereo audio acceptor
Connect to a PC via a LAN
+5V DC connector for powering the unit
to download the latest user manual and check if firmware
