NetApp AltaVault Installation And Setup Instructions page 4

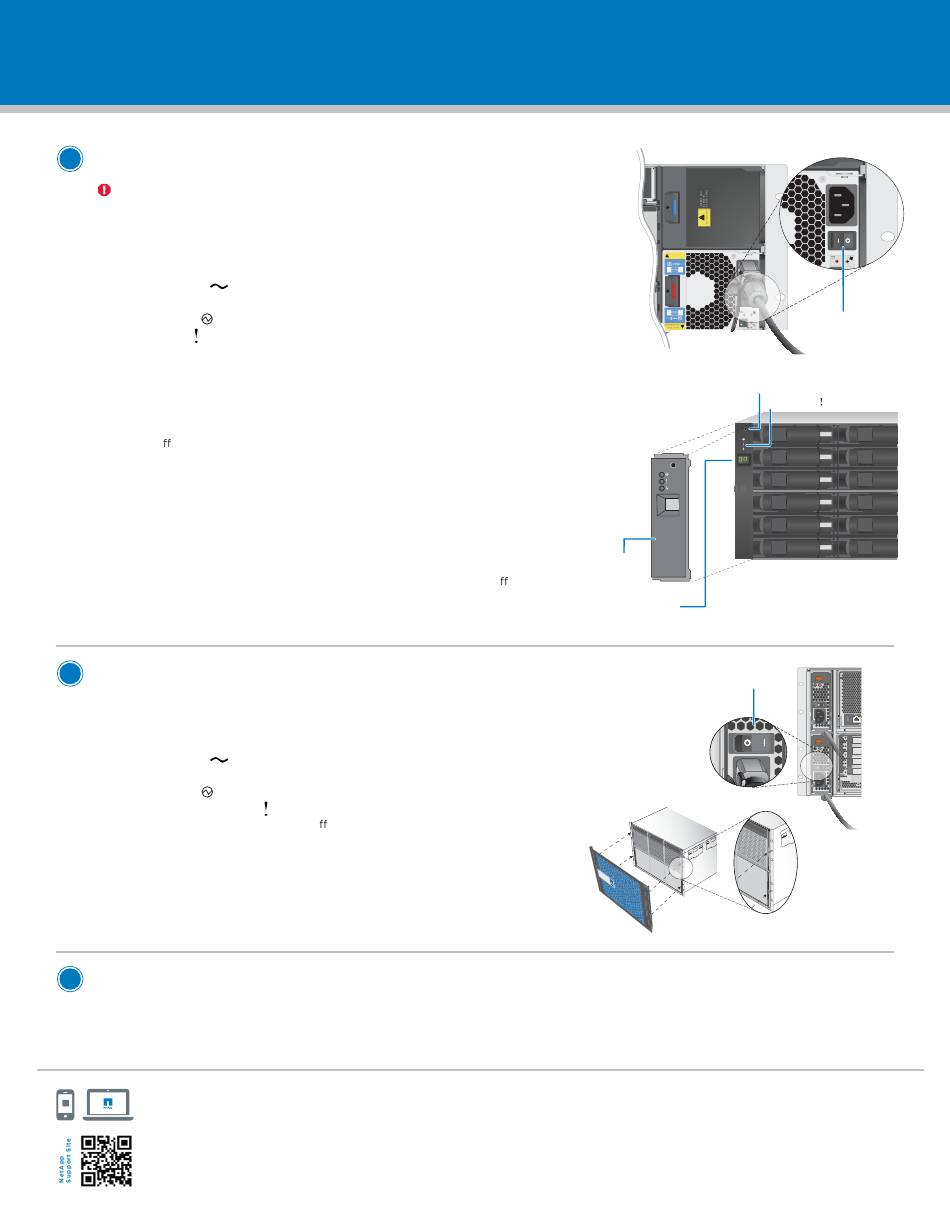

Complete system setup | 5
Power on the disk shelf
1
You must power on all the disk shelves before powering on the controller. Powering on
the controller before the disk shelf prevents AltaVault OS from operating normally.
1.
Power on the disk shelf; move the power switch to the ON ( | ) position.
BOTH power supplies MUST be powered on.
• Verify that the power supplies are working correctly:
PSU OK LED (
• View the disk shelf LEDs (on shelf front) to verify the disk shelf powered on correctly:
Power LED ( ) is lit green.
Fault LED ( ) is not lit.
2.
Visually verify that the ID for each disk shelf is unique, and if not, set the disk shelf ID.
NOTE: Valid shelf IDs: shelf 1 ID 00; shelf 2 ID 10, shelf 3 ID 01, shelf 4 ID 11.
ID 00 is the default shelf ID.
a. Using one hand, hold the left ear cover between your thumb and index finger.
Pull either the top or the bottom of the cover until one end is released.
Pull o the left ear cover.
b. Press and hold the shelf ID button until the first digit on the digital display blinks.
c. Press the button until the desired number (between 0 and 9) is displayed.
This number continues to blink.
d. Repeat steps b and c for the second digit.
e. Press and hold the button until the second number stops blinking.
Both numbers on the digital display should blink and the shelf fault
LED illuminates in about five seconds.
The fault LED stays lit until you power-cycle the shelf.
f. Power-cycle the disk shelf to make the new disk shelf ID takes e ect.
g. Replace the left ear cover.
Power on the controller
2
1.
Power on the controller; move the power switch to the ON (|) position.
BOTH power supplies MUST be powered on.
• Verify that the power supplies are working correctly:
PSU OK LED (
• View the system LEDs (on controller front) to verify the controller powered on correctly:
Power LED ( ) is lit green.
System attention LED (
The System attention LED turns o when AltaVault OS is finished booting up.
2.
Install the bezel
• Hold the bezel parallel to the front of the controller.
• Install the bezel on the controller front as shown in the illustration.
• The bezel will snap into place.
Finish the AltaVault setup over the serial console
3
Open a connection to the serial console port using a terminal program such as PuTTY, and log in using the
default login (admin) and default password (password). You can now complete the AltaVault deployment as described
in the NetApp AltaVault Cloud Integrated Storage Administration Guide.
HELPFUL LINKS
Visit the NetApp web site for more information.
• AltaVault Resources:
• AltaVault library:
• Hardware Universe:
• More infomation:
) is lit green in each power supply.
) is lit green in each power supply.
) blinks for a few minutes while AltaVault OS is booting up.
https://mysupport.netapp.com/info/web/ECMLP2606636.html
http://mysupport.netapp.com/documentation/productlibrary/index.html?productID=62032
https://hwu.netapp.com
http://www.netapp.com
CAUTION
PRUDENCE
LNK
1 2
3 4
LNK
IOM6
IOM6
LNK
CAUTION
LNK LNK
PRUDENCE
1 2
3 4
IOM6
CAUTION
LNK
PRUDENCE
1 2
3 4
Shelf ID button
Shelf fault LED
Left ear
cover
Digital Display
(two digits)
Power switch
Power switch
4.0TB 4.0TB
4.0TB 4.0TB
4.0TB 4.0TB
4.0TB 4.0TB
4.0TB 4.0TB
4.0TB 4.0TB
0 e0a e0b
e0c e0d e0e e0f
LINK LINK LINK
7
8
9
10
