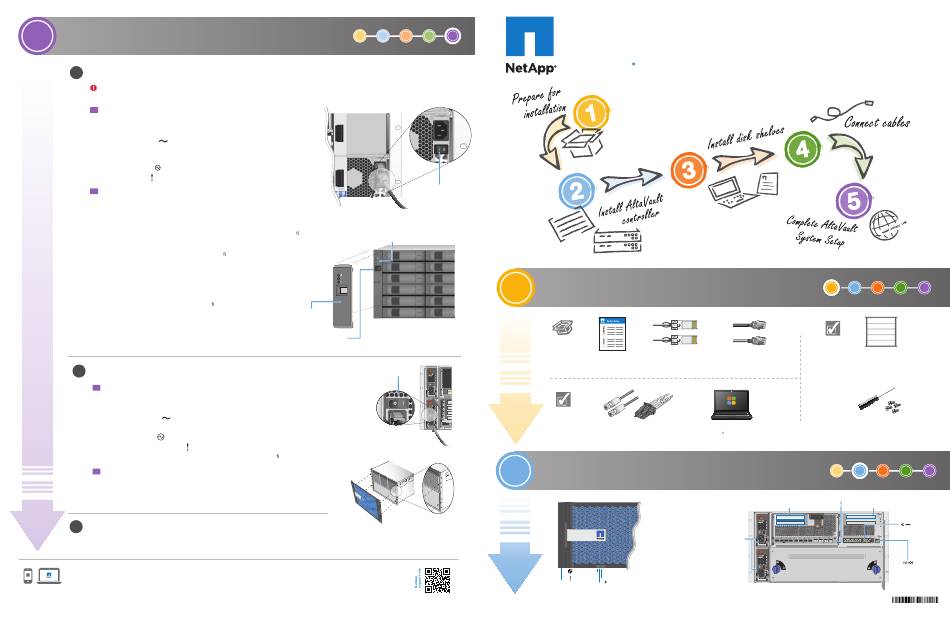

NetApp AltaVault System Installation And Setup Instructions

5
Complete AltaVault System Setup
1 Power on disk shelf
You must power on all the disk shelves before powering on the controller.
Powering on the controller before the disk shelf prevents AltaVault OS from operating normally.
1 Power on disk shelf; move the power switch to the ON (|) position.
BOTH power supplies MUST be powered on.
•
Verify that the power supplies are working correctly:
PSU OK LED ( ) is lit green in each power supply.
•
View the disk shelf LEDs (on shelf front) to verify the disk
shelf powered on correctly:
Power LED ( ) is lit green.
Fault LED ( ) is not lit.
2 Set the disk shelf ID
Visually verify that the ID for each disk shelf is unique, and if not, set the disk shelf ID.
NOTE:
A valid shelf ID for a AltaVault system could be one of 00, 01, 10, 11.
00 is the default shelf ID.
a. Using one hand, hold the left ear cover between your thumb and index nger.
Pull either the top or the bottom of the cover until one end is released.
Pull off the left ear cover.
b. Press and hold the shelf ID button until the rst digit
on the digital display blinks.
c. Press the button until the desired number (between 0 and 9) is displayed.
This number continues to blink.
d. Repeat steps b and c for the second digit.
e. Press and hold the button until the second number stops blinking.
Both numbers on the digital display should blink and
the shelf fault LED illuminates in about ve seconds.
The fault LED stays lit until you power-cycle the shelf.
f. Power-cycle the disk shelf to make the new disk shelf
ID takes effect.
g. Replace the left ear cover.
Power on controller
2
Power on controller; move the power switch to the ON (|) position.
1
BOTH power supplies MUST be powered on.
•
Verify that the power supplies are working correctly:
PSU OK LED ( ) is lit green in each power supply.
•
View the system LEDs (on controller front) to verify the controller powered on correctly:
Power LED ( ) is lit green.
System attention LED ( ) blinks for a few minutes while AltaVault OS is booting up.
The System attention LED turns off when AltaVault OS is nished booting up.
2 Install bezel
•
Hold the bezel parallel to the front of the controller.
•
Install the bezel on the controller front as shown in the illustration.
•
The bezel will snap into place.
3 Finish AltaVault Setup over Serial Console
See the NetApp AltaVault Cloud Integrated Storage Installation and Service Guide at the NetApp Support site.
HELPFUL LINKS
Visit the NetApp web site for more information.
1 2
Shelf fault LED
Left ear cover
Shelf ID
digital display
(two digits)
Power switch
To view AltaVault documentation see:
http://mysupport.netapp.com
3 4 5
Power switch
0 1 2 3 4 5 6 7 8 9 10 11
1
Prepare for installation
In the box:
X2 0 6 7 X3 1 4 9 A
3
N L
K
a
4
LNK ACT
b
5
INT LNK
c
LNK ACT
6
d
0 e0a e0b
e0c e0d e0e e0f 0a 0b 0c 0d
LINK LINK LINK LINK
LINK LINK LINK LINK
7 13
8 14
You provide:
9 15
10 16
2
Install AltaVault controller
Power LED
System
Bezel
attention LED
Installation and Setup Instructions
AltaVault System
12 13 14 15 16 17 18
DS2246
SAS cables: Power cables:
Configuration
mini SAS HD-QSFP cable (controller-shelf) 2 per controller chassis
worksheet
QSFP-QSFP cable (shelf-shelf) 2 per disk shelf
Additional network cables Computer with Internet
For connecting your storage system to Initial con guration is done via
Ethernet switches serial console
FRONT
VIEW OF
CONTROLLER
Power
supplies
REAR
VIEW OF
A
CONTROLLER
Controller
A
activity LED
1 2 3 4 5
You provide:
Rack space - 10U
AltaVault system chassis: 6U
AVA10S disk shelf: 4U
Screwdriver and screws
For securing hardware into racks
1 2 3 4 5
RAID Card with Controller RAID Card with
mini SAS HD ports attention LED mini SAS HD ports
X2 0 6 7 X3 1 4 9 A
1 3
2 4
Management port
(wrench icon)
LNK LNK LNK LNK LNK LNK LNK LNK LNK LNK LNK LNK
0 a 0 b 0 c 0 d e 0a e0b e0c e0d e 0e|0e | e 0f|0f | | 0g|0g e | 0h|0h e e i 0 e j 0 e k 0 e i 0
3
4
Console port
(Setting: 9600 N-8-1)
210-06615+A0
