NetApp AltaVault Installation And Setup Instructions

Download this manual

AltaVault System

Installation and Setup Instructions

Prepare for installation | 1

In the box

You provide

SAS cables

mini SAS HD-QSFP cable

(controller to shelf )

Rack space - 10U

AltaVault system chassis: 6U

AVA10S disk shelf: 4U

Additional network cables

For connecting your storage system to Ethernet switches

Prepare for installation

Install hardware

QSFP-QSFP cable

(shelf to shelf )

Screwdriver and screws

For securing hardware into racks

Install disk shelves

Connect cables

Power cables

2 per controller chassis

2 per disk shelf

Fiber cables

Computer & LAN access

Initial conﬁguration is done via serial console

(for example PuTTY)

Complete system setup

RJ45 serial adapter

Serial cable connection

Need help?

Do you have a question about the AltaVault and is the answer not in the manual?

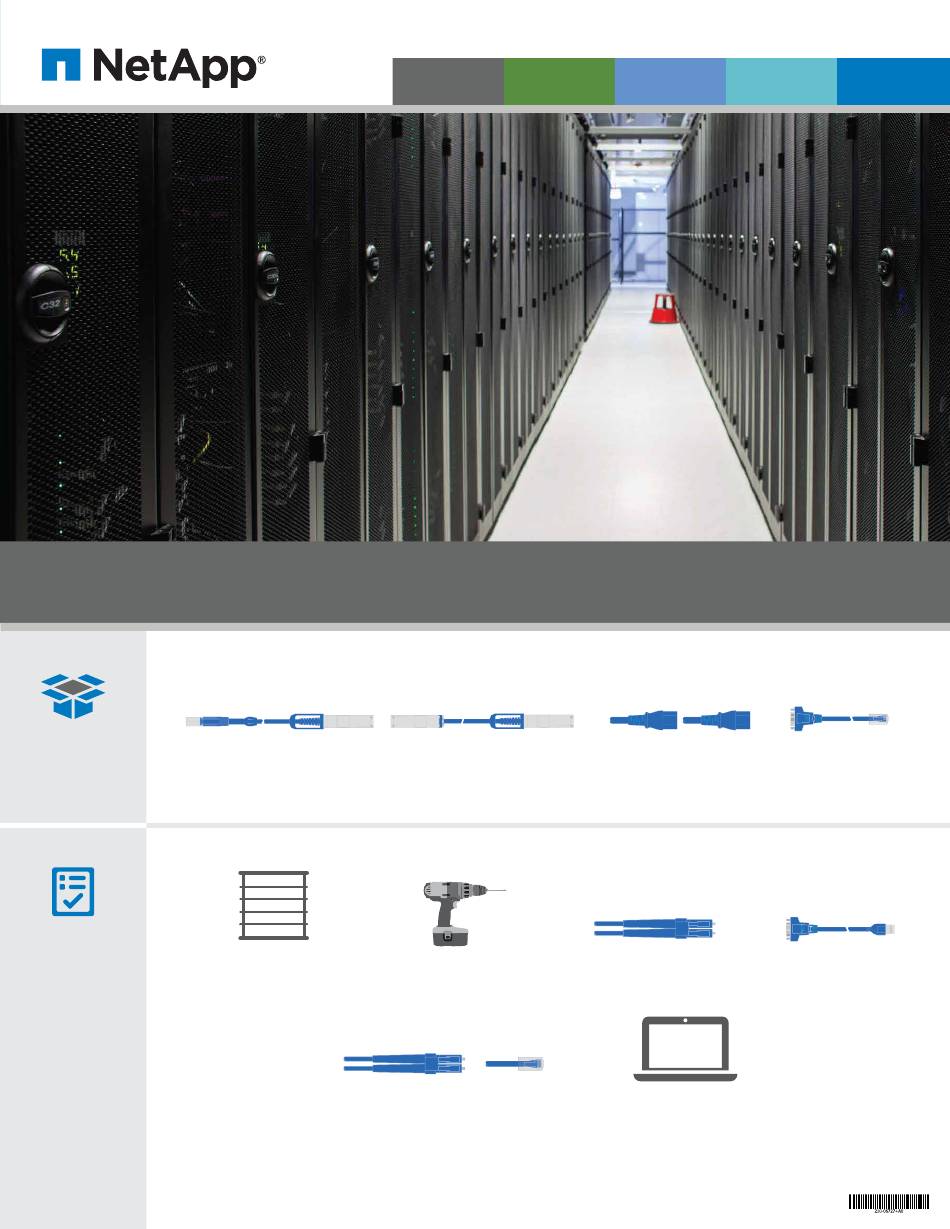

Page 1 You provide Rack space - 10U Screwdriver and screws Fiber cables Serial cable connection AltaVault system chassis: 6U For securing hardware into racks AVA10S disk shelf: 4U Additional network cables Computer & LAN access Initial conﬁguration is done via serial console...
Page 2 Alternatively, you can mid-mount the chassis using the mid-mount brackets provided in the rail kit. For detailed rack installation instructions, see SAS Disk Shelves Installation and Service Guide for DS4243, DS2246, DS4486, and DS4246 on the NetApp Support site. Install disk shelves | 3...
Page 3 Connect controller to computer AltaVault system The serial console is needed to conﬁgure a management IP address for the AltaVault appliance, using a client. Once this is done, further Client RJ45 serial adapter conﬁguration can be done using a Web browser and connecting to the management IP address.
Page 4 Open a connection to the serial console port using a terminal program such as PuTTY, and log in using the default login (admin) and default password (password). You can now complete the AltaVault deployment as described in the NetApp AltaVault Cloud Integrated Storage Administration Guide.
