- Page 1 INSTALLATION AND USER’S MANUAL CU - 230V - 1M Control units comunello.com ISTRUZIONI D’USO E DI INSTALLAZIONE INSTALLATIONS-UND GEBRAUCHSANLEITUNG INSTRUCIONS D’UTILISATION ET D’INSTALLATION INSTRUCCIONES DE USO Y DE INSTALACION ИНСТРУКЦИЯ ПО МОНТАЖУ Cod. 91300172 - Rev. 04 - 06.09.18...
- Page 2 ELEC BRAKE RELEASE STROKE SLAM LOCK COURTESY LIGHT LEV MENÙ 1 FLASH EXTENDED MENÙ 2 SOFT STOP SOFT START SAFE 1 IN OPEN HOLD-TO-RUN FOLLOW ME PAUSE FLASHING ALWAYS CLOSE LEV LEV LONG FLASHING COMUNELLO ®Copyright 2016 - All right reserved...
- Page 3 Main power supply 3Gx1,5mm2 3Gx2,5mm2 Flashing light 2x0,5mm2 2x1,0mm2 HAR EN50575 4A , 6A Photocell TX 2x0,5mm2 2x1,0mm2 CPR 305/2011 4B , 6B Photocell RX 4x0,5mm2 4x1,0mm2 Key selector 3x0,5mm2 3x1,0mm2 Antenna RG58 max 20m COMUNELLO ®Copyright 2016 - All right reserved...

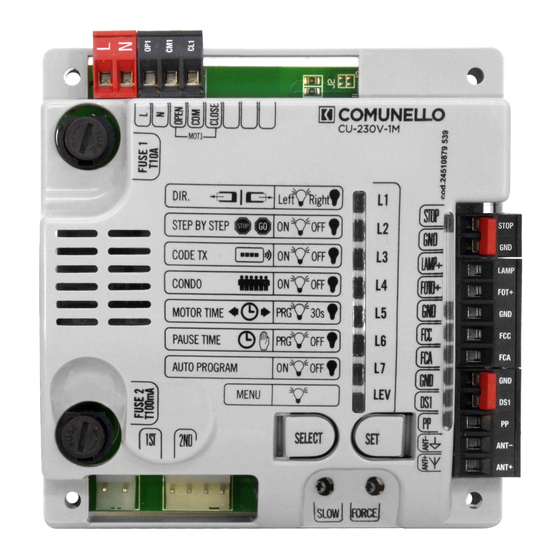

- Page 4 LINEA POWER SUPPLY 2P+T 230V 50Hz MOTORE MOTOR BLOCCO (N.C.) 230V 50HZ STOP (N.C.) LAMPEGGIANTE FLASHING LIGHT ALIMENTAZIONE FOTOCELLULE PHOTOCELL POWER STOP FINECORSA CHIUDI (N.C.) END CLOSE (N.C.) LAMP FOT+ FINECORSA APRI (N.C.) END OPEN (N.C.) ANT- PULSANTE APRI-CHIUDI (N.O.) ANT+ PUSCH BUTTON (N.O.) 1 ST...
- Page 5 BLACK ON OPEN BROWN ON CLOSED FORT like below: Led “opening direction” ON: OPENS TO THE LEFT Inner side view FORT like below: Led “opening direction” OFF: OPENS TO THE RIGHT Inner side view COMUNELLO ®Copyright 2016 - All right reserved...
- Page 6 SALIENT BLUE ON COMMON BROWN ON OPEN BLACK ON CLOSED SALIENT: DO NOT CHANGE the configuration! Opens to the left, closes to the right (left profile view, as in the image). COMUNELLO ®Copyright 2016 - All right reserved...
- Page 7 INSTALLATION AND USER’S MANUAL CU - 230V - 1M EC DECLARATION OF COMFORMITY: The undersigned Mr. Luca Comunello, representing the following manufacturer, Fratelli COMUNELLO Spa Via Cassola 64, 36027 Rosà (VI) – Italy DECLARES that the equipment described below: Electronic control unit...
- Page 8 • The rear of the box is equipped with knockouts comply with the safety prescriptions set down for wall fixing (knockouts for fixing holes using herein. Failure to comply with the prescriptions COMUNELLO ®Copyright 2016 - All right reserved...
-
Page 9: Technical Specifications
(immediately before full opening and full closing); in addition, using the “SLOW” trimmer the force intensity can be adjusted during the deceleration STEP-BY-STEP OPERATION: phase. When either the remote or the low voltage control pushbuttons are used to COMUNELLO ®Copyright 2016 - All right reserved... -
Page 10: Auto Program
NOTE: After each programming of a valid code, the control panel you can use the button on the remote, providing the remote has been waits for a subsequent code for another 10 sec. saved beforehand. COMUNELLO ®Copyright 2016 - All right reserved... -
Page 11: Extended Menu
“FORCE” trimmer during the first 2 seconds of operation. Repeat the the Release Stroke function at the power set with the “FORCE” trimmer, procedure if you wish to restore the previous configuration. COMUNELLO ®Copyright 2016 - All right reserved... -
Page 12: Warranty
RESET: If it becomes necessary to reset the control unit to restore the factory g) No external work carried out by Comunello technical staff is covered by settings, press the SELECT and SET keys together; this will cause all the the Conventional Warranty. - Page 13 FRATELLI COMUNELLO S.P.A. AUTOMATION GATE DIVISION Via Cassola, 64 - C.P. 79 36027 Rosà, Vicenza, Italy Tel. +39 0424 585111 Fax +39 0424 533417 info@comunello.it www.comunello.com...
