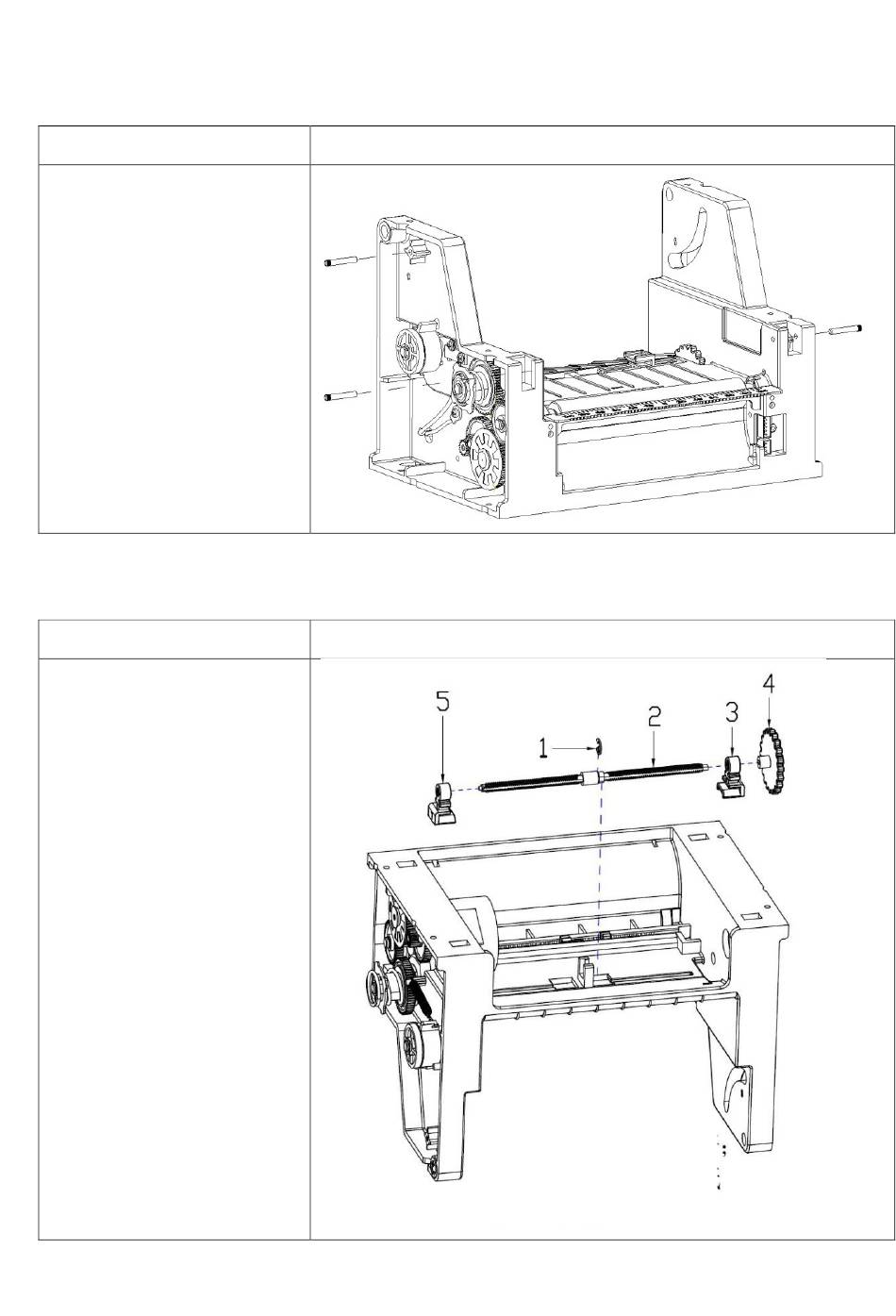

1.10 Printer Mechanism Removal

operation
Remove the three
shafts from the central
support. Push the shafts
with an ejector pin on the
side without knurling.
1.11 Locking Shaft Removal
operation
(1) Remove 5# E-ring off
the screw bar
(2) Close the media guides
with the media guide
adjuster
(3) Take the screw bar off
the media guide adjuster
(4) Remove the screw bar
assembly.
illustration
illustration
1.5# E-ring
3.Right
4.Media Guide Adjuster
5. Left Media Guide
29
2.Scew Bar
Media Guide
