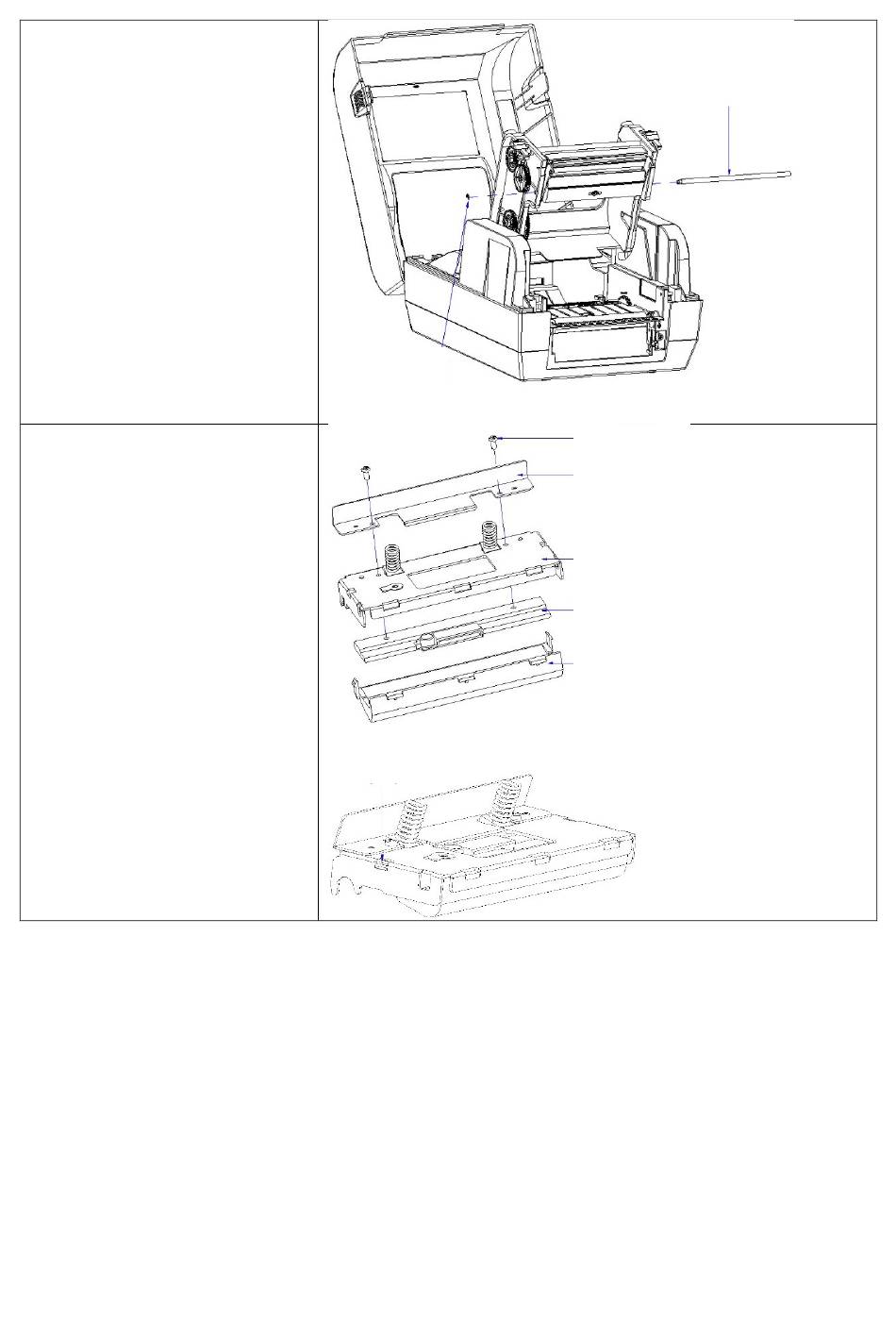

(2) Remove 3# E-ring and
the TPH shaft.
(3) Screw off the two screws
M3*6, release the buckles
with
screwdriver
removing
plastic
plate, disconnect thermal
print head cables, remove
thermal print head.
3# E-ring
for
guide
Plastic Hook
M3*6 Screw
Steel Guide Plate
TPH Fixing Board
TPH
Plastic
Plate
21
TPH Shaft
Guide
