Metra Electronics 95-9012 Installation Instructions

Car radio kit

Download this manual

INSTALLATION INSTRUCTIONS FOR PART 95-9012

95-9012

KIT FEATURES

• Double DIN Head Unit Provision

• Stacked ISO DIN Head Unit Provision

KIT COMPONENTS

A) Radio Housing • B) (8) Phillips screws

WIRING AND ANTENNA CONNECTIONS (Sold Separately)

• 70-1784 VW harness 1998-2001

• XSVI-9003-NAV VW Interface 2003-up

Antenna adapter:

• 40-EU55-adapter for amplified antenna 2002-up

• 40-VW53 adapter for amplified antenna 1998-01

• Small Flat Blade Screwdriver • Panel Removal Tool

1-800-221-0932

APPLICATIONS

•GOLF 1999-2006

•GTI 1999-2005

•JETTA 1999-2005

(Excluding NEW JETTA 2005)

•PASSAT 2000-2005

TOOLS REQUIRED:

• 86-9001 Radio Removal Tools (2 sets)

www.metraonline.com

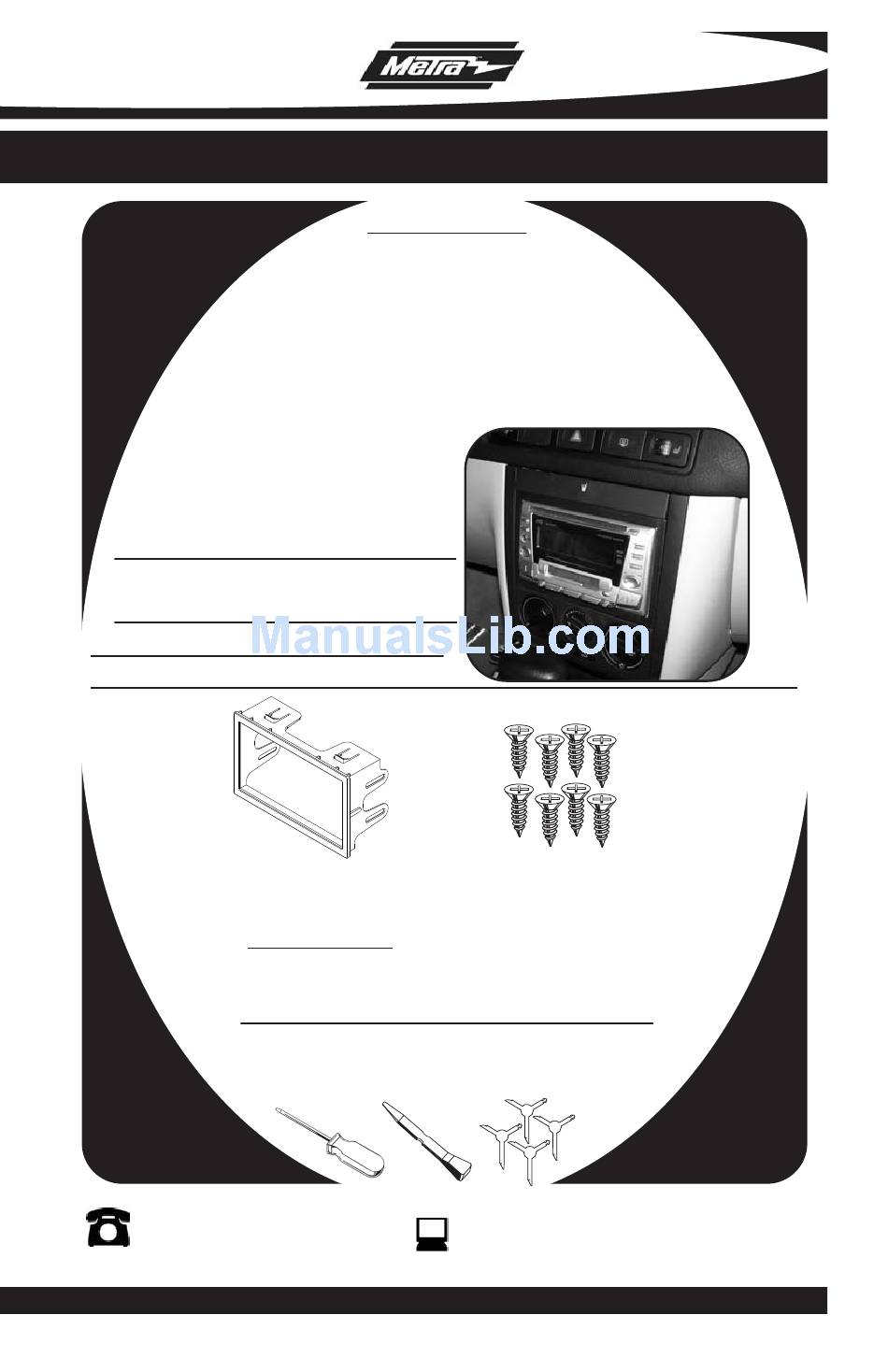

Page 1 INSTALLATION INSTRUCTIONS FOR PART 95-9012 •GOLF 1999-2006 •JETTA 1999-2005 (Excluding NEW JETTA 2005) •PASSAT 2000-2005 95-9012 KIT FEATURES • Double DIN Head Unit Provision • Stacked ISO DIN Head Unit Provision KIT COMPONENTS A) Radio Housing • B) (8) Phillips screws WIRING AND ANTENNA CONNECTIONS (Sold Separately) •...
Page 2: Dash Disassembly
“snapped” into the dash opening. Removal of aftermarket radio is even more difficult than installation, so please be sure to fully test the after- market radio prior to completing the kit’s installation. 95-9012 NOWLEDGE IS Enhance your installation and fabrication skills by enrolling in the most recognized and respected mobile electronics school in our industry.
Page 3 Note: This installation kit is an extremely tight fit and requires force to be “snapped” into the dash opening. Removal of aftermarket radio is even more difficult than installation, so please be sure to fully test the after- market radio prior to completing the kit’s installation. 95-9012 DASH DISASSEMBL Y •JETTA 1999-2005...
Page 4 “snapped” into the dash opening. Removal of aftermarket radio is even more difficult than installation, so please be sure to fully test the after- market radio prior to completing the kit’s installation. 1-800-221-0932 REV. 09-02-09 © COPYRIGHT 2009 METRA ELECTRONICS CORPORATION 95-9012 KIT ASSEMBL Y/ FINAL ASSEMBL Y www.metraonline.com INST95-9012...
