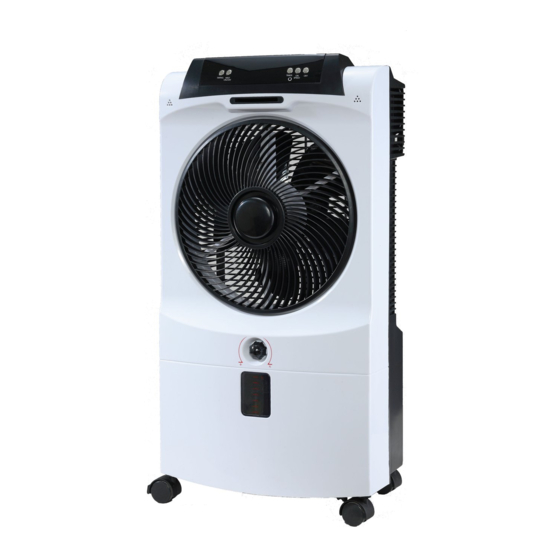

- Page 1 INSTRUCTION MANUAL 30cm Misting Fan Model: DCMIST30 For domestic household use only.
- Page 2 IMPORTANT THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE. Note also the information presented on the appliance CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/ OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY Please read the operating instructions carefully before using your evaporative cooler for the first time and keep them in a safe place.
- Page 3 • This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. •...
- Page 4 Exposed to the Near water If the power cable weather outdoors wires are frayed or cut Where small children If an extension Where the power may be left unattended lead may become cable may be overloaded damaged On a slope or Where there is risk Where it may be uneven surface...
-
Page 5: Specification
Specification Model no. DCMIST30 Colour White/Black Power supply 220-240V~, 50Hz Rated power 100W Speed settings Modes Misting function Mist output 0.27L/h (MAX) Water tank capacity 5.5L Remote control Timer 0-10 hours Swing function Controls Button with LED display Max. room size 30m²... - Page 6 Parts Control panel Mist outlet Front grille guard Mist adjuster Water level window Castors Rear grille guard Blade Ice pack Water tank Drainage Power cord...
-
Page 7: Display And Control Panel
Display & Control Panel On/Speed indicator Timer indicator Swing indicator Ambient room temperature Mist indicator Remote Control On/Speed Timer Swing Mist On/Off... - Page 8 Functions ON/SPEED To turn the unit "on", press the ON/SPEED button. The unit will automatically start in medium speed. Each time the button is pressed, the speed increases from low to medium, and then to high. The power indicator light on the control panel illuminates as speed increases. The ON/SPEED button only switches "on"...
-
Page 9: Operation & Set Up
Operation & Set Up 1. Remove the unit from its packaging. 2. Remove the water tank and turn upside down and remove the lid. Fill the water tank with cool, filtered water. Do not over fill. 3. Replace the water tank into the unit, and plug the cord into a power outlet. . 4. - Page 10 Cleaning Disconnect the unit from the power supply and remove the rear screen by loosening the screw. Use a vacuum cleaner or soft cloth to remove loose dust and dirt, and then replace the rear screen. Decalcifying the water tank In areas with hard water, deposits will build up, so it is recommended to decalcify the unit every six months.
-
Page 11: Maintenance
Warranty Please refer to the warranty card in the box for warranty information. For any troubleshooting advice, please contact the relative Customer Care Centre below. Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd 1340 Ferntree Gully Road, 38 Harris Road, East Tamaki,... - Page 14 Supplied by Glen Dimplex Australia 1340 Ferntree Gully Road, Scoresby, Victoria, 3179 © Glen Dimplex Australia. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of Glen Dimplex Australia.
