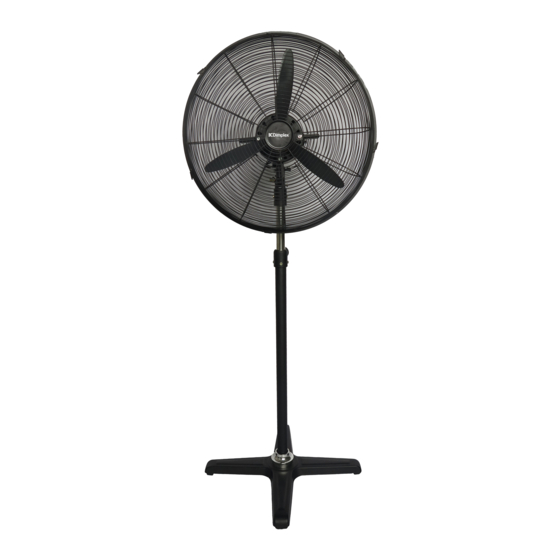

- Page 1 INSTRUCTION MANUAL 50cm HV Pedestal Fan Model: DCPF50MB For domestic household use only.
- Page 2 IMPORTANT THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE. Note also the information presented on the appliance CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/ OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY Please read the operating instructions carefully before using your fan for the first time and keep them in a safe place.
- Page 3 • Children should be supervised to ensure they do not play with the appliance. • WARNING: To avoid danger of suffocation please remove all packaging materials particularly plastic and EPS and keep these away from vulnerable people, children and babies. •...
- Page 4 Exposed to the Near water If the power cable weather outdoors wires are frayed or cut Where small children If an extension Where the power may be left unattended lead may become cable may be overloaded damaged On a slope or Where there is risk Where it may be uneven surface...
-
Page 5: Specification
Specification Model no. DCPF50MB Colour Matte Black Power supply 220-240V~, 50/60Hz Rated power 135W Speed settings Modes Timer Remote control Adjustable height Yes - Max height 1.5m Tilt adjustable head Horizontal oscillation Noise level 73dB(A) Weight (net) 14kg Dimensions (w x d x h) 580 x 380 x 1500mm •... - Page 6 Parts 6. Motor shaft 2. Grub screw 4. Rear grille 7. Oscillation On/ screws Off switch 8. Fan motor 1. Front grille 9. Rotary switch 10. Motor fixing hole 11. Adjustable pipe fixing hole & long bolt & washer. 16. Safety screw 5.
-
Page 7: Operation
Assembly 1. Assemble the base (14) to the adjustable pipe (12) by holding the base on it's side, and inserting the pipe into the centre. Secure the pipe (12) to the base (14) with the supplied 19mm bolt & washer (15). Firmly tighten with a 19mm spanner (not supplied). - Page 8 Cleaning Over time, dust can accumulate on the front & rear grille cover and fan blades, which can affect the fans performance. It is recommended to clean the fan at least once a month. 1. Turn the unit OFF and disconnect the appliance from the power supply. 2.
-
Page 9: Maintenance
Warranty Please refer to the warranty card in the box for warranty information. For any troubleshooting advice, please contact the relative Customer Care Centre below. Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd 1340 Ferntree Gully Road, 38 Harris Road, East Tamaki,... - Page 10 Supplied by Glen Dimplex Australia 1340 Ferntree Gully Road, Scoresby, Victoria, 3179 © Glen Dimplex Australia. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of Glen Dimplex Australia.
