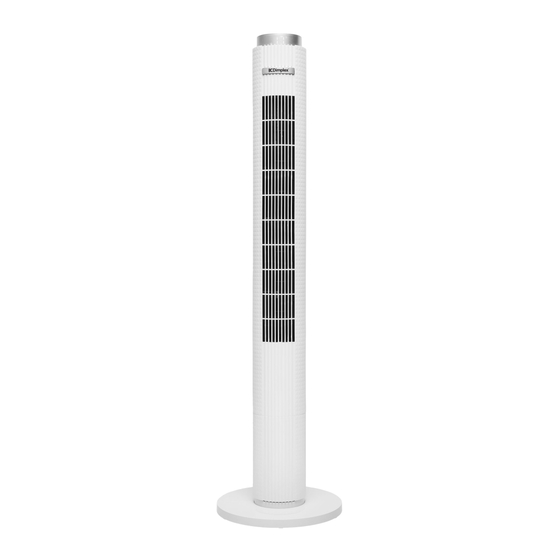

- Page 1 INSTRUCTION MANUAL 117cm Digital Tower Fan with Night Light Model: DCTF117NL For domestic household use only.
- Page 2 IMPORTANT THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE. Note also the information presented on the appliance CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY Please read the operating instructions carefully before using your fan for the first time and keep them in a safe place.
- Page 3 in use, before relocating it, and before cleaning. • Operate the appliance only at the voltage specified on the rating label. • Only connect the unit to a properly installed and easily accessible socket so that you can quickly disconnect the plug if necessary. •...
- Page 4 • Always switch off the unit and take the plug out of the socket: • If you are not using the unit • Before you clean or carry out maintenance on the unit • If a fault occurs • In the event of an electrical storm. •...
- Page 5 Exposed to the Near water If the power cable weather outdoors wires are frayed or cut Where small children No extension Where the power may be left unattended leads or power cable may be boards damaged On a slope or Where there is risk Where it may be uneven surface...
-
Page 6: Specification
Specification Model no. DCTF117NL Colour White Power supply 220-240V~ 50-60Hz Rated power Speed settings Modes Timer 1-12hrs Air speed 2.7m/s Oscillating 75° Controls Button & Remote Noise level 53.8dB Weight (net) 3.63kg Dimensions (w x d x h) 315 x 315 x 1170mm... - Page 7 Parts Control panel Carry handle LED display Cable hook Air outlet Front cover Back cover Night light Base...
-
Page 8: Operation
Assembly 1. Place the two parts of the base together. 2. Line up the Tower Fan with the base. 3. Use the fixed knob to secure the base onto the Tower Fan. 4. Put wire in the recess, then fix the base on the fan body with four screws(included) and turn the screws clockwise. - Page 9 Operation Manual Controls 1. Place the fan on a table or flat surface. Plug the cord set into an appropriate electrical outlet. 2. Turn the fan on by pressing the 'POWER' button. Turn the fan off by pressing the 'POWER' button again. 3.
- Page 10 Cleaning Over time, dust can accumulate on the fan grille, which can affect the fans performance. It is recommended to clean the fan at least once a month. 1. Turn the unit OFF and disconnect the appliance from the power supply. 2.
-
Page 11: Maintenance
Warranty Please refer to the warranty card in the box for warranty information. For any troubleshooting advice, please contact the relative Customer Care Centre below. Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd 8 Lakeview Drive, 38 Harris Road, East Tamaki,... - Page 12 Supplied by Glen Dimplex Australia 8 Lakeview Drive, Scoresby, Victoria, 3179 © Glen Dimplex Australia. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of Glen Dimplex Australia.
