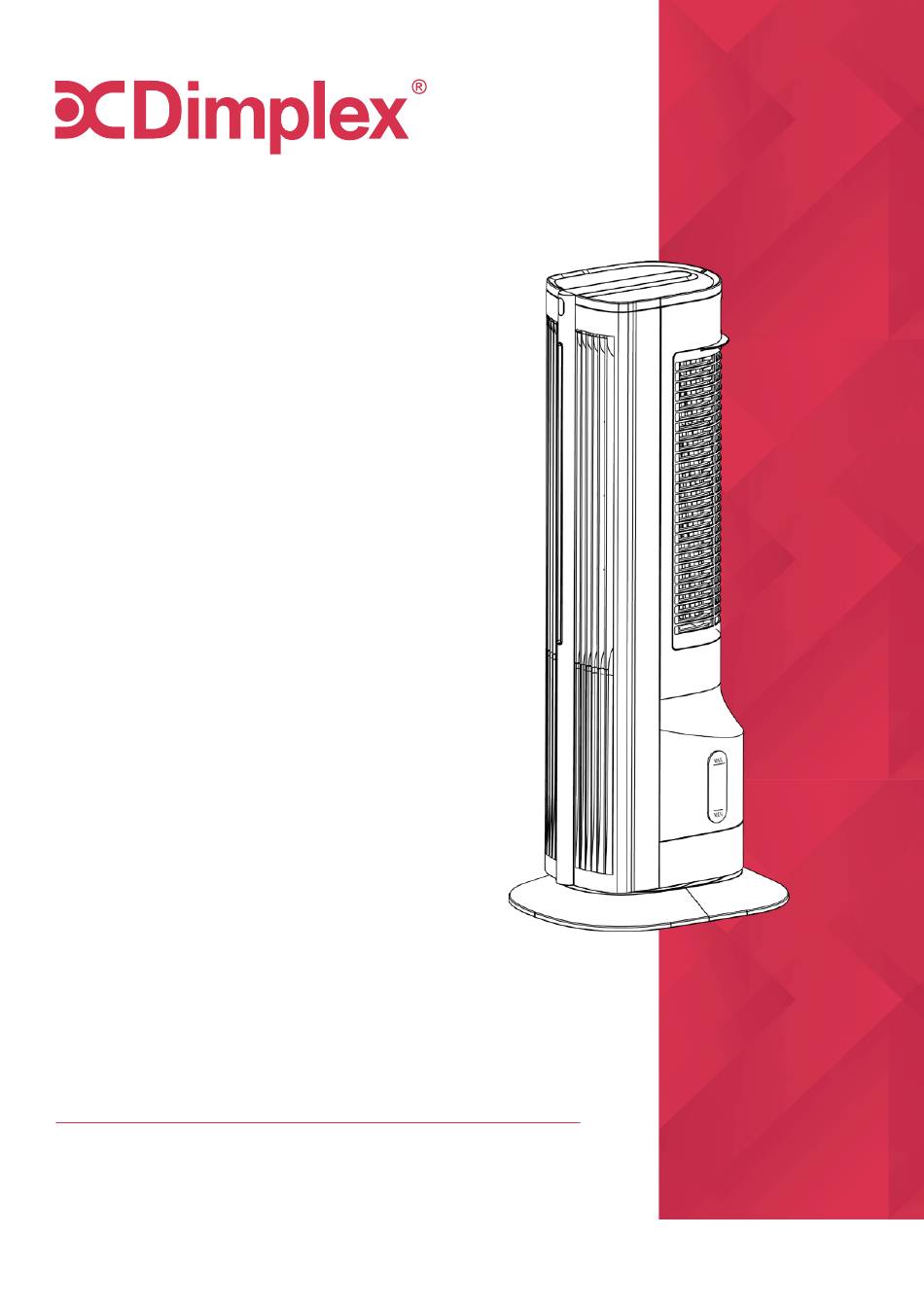

- Page 1 INSTRUCTION MANUAL Heat/Cool/Humidifier Tower Fan Model: DCTF3HCH For domestic household use only.
- Page 2 IMPORTANT THESE INSTRUCTIONS SHOULD BE READ CAREFULLY AND RETAINED FOR FUTURE REFERENCE. Note also the information presented on the appliance CAUTION: FAILURE TO FOLLOW THESE INSTRUCTIONS MAY CAUSE INJURY AND/OR DAMAGE AND MAY INVALIDATE YOUR WARRANTY Please read the operating instructions carefully before using your air circulator for the first time and keep them in a safe place.
- Page 3 • Please ask a professional service agent to repair the product. Improper repair may cause danger to users. • Disconnect the appliance from mains power whenever it is not in use, before relocating it, and before cleaning. • Operate the appliance only at the voltage specified on the rating label. •...
- Page 4 • Ensure the water quality is pure and below 40°C when utilizing the humidifying function. • Ensure water is being added to the appliance slowly with the use of a container to avoid overflowing and exceeding the maximum water level. •...
- Page 5 Exposed to the Near water If the power cable weather outdoors wires are frayed or cut Where small children No extension leads or Where the power may be left unattended power boards cable may be damaged On a slope or Where there is risk Where it may be uneven surface...
-
Page 6: Specification
Specification DCTF3HCH Model no. Power supply 220-240V~50Hz 13.8W (cooling) Rated power 2000W (heating) Speed settings Heat settings Timer 12 hours Mist output 120ml/h Adjustable temperature 20-30°C Water tank 1.5L Oscillation 85° Noise level (MAX) 55dB(A) 3.6kg Weight (net) 228 x 285 x 672mm Dimensions (w x d x h) •... - Page 7 Parts Operation Panel Indicator Light Fog Outlet Air Inlet Air Outlet Power Switch (back) Filler (back) Water Gauge Window...
-
Page 8: Control Panel
Control Panel Temperature Timer Swing/Child Lock Humidification Natural Wind Warm Wind On/Off LED Display Remote Control On/Off Light Warm Wind Natural Wind Increase Temperature Increase Timer Decrease Temperature Decrease Timer Swing/Child Lock Humidification... - Page 9 Assembly 1. Take the base of the Tower Fan, and align it to the bottom of the unit. 2. Fix the base onto the bottom of the unit using the four included screws. 3. The Tower Fan should look as per below (image 3). When the device is not in use, place the remote control in the housing space on the top of the unit.
-
Page 10: Operation
Operation When the power is connected, flick the power switch at the back of the unit to turn the device on. A buzzer noise will ring, and the power indicator light will switch on. You can select different modes by pressing the keys/buttons on the control panel and/or remote control. - Page 11 Operation 4. When the WARM WIND/NATURAL WIND and/or HUMIDIFICATION func- tions are turned on, press the SWING button to enable the unit to oscil- late. up to 85° left and right. Press and hold this button for 3 seconds to enable the CHILD LOCK function.
- Page 12 Cleaning Over time, dust can accumulate on the grille covers, filter (if applicable) and fan blades, which can affect the fans performance. It is recommended to clean the fan at least once a month. 1. Turn the unit OFF and disconnect the appliance from the power supply. 2.
-
Page 13: Maintenance
Warranty Please refer to the warranty card in the box for warranty information. For any troubleshooting advice, please contact the relative Customer Care Centre below. Glen Dimplex Australia Pty Ltd Glen Dimplex New Zealand Ltd 8 Lakeview Drive, 38 Harris Road, East Tamaki,... - Page 16 Supplied by Glen Dimplex Australia 8 Lakeview Drive, Scoresby, Victoria, 3179 © Glen Dimplex Australia. All rights reserved. Material contained in this publication may not be reproduced in whole or in part, without prior permission in writing of Glen Dimplex Australia.
