PDi -CEILING-MT Manual

Better Solutions Are Within Reach

OVERVIEW

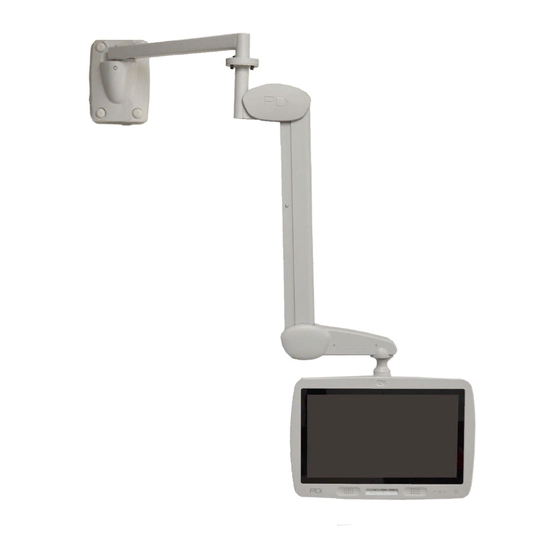

A complete mounting system for attachment to a

solid roofing structure above a suspended tile

ceiling. Outer tube mounts to a solid surface,

inner tube allows adjustment of height to clear

the tile ceiling, and then a special arm section

attaches to the bottom of the tube. Arm supports

up to 22.5 pounds.

1. Remove the ceiling tile and locate a

mounting position above the patient's bed at

a minimum distance of 45 inches from walls

or other obstacles.

2. Mount the outer tube PDI-592 securely to the

ceiling using the twelve mounting holes provided in the plate.

PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664

MODEL NUMBER:

PDI-CEILING-MT

Ceiling Mount

Document Number:

PD196-016R5

Page 1 of 2

Table of Contents

Do you have a question about the PDI-CEILING-MT and is the answer not in the manual?

Page 1 45 inches from walls or other obstacles. 2. Mount the outer tube PDI-592 securely to the ceiling using the twelve mounting holes provided in the plate. PDi Communication Systems, Inc. 40 Greenwood Lane Springboro, Ohio 45066 USA PH 1-800-628-9870 FX 937-743-5664...
Page 2 ADJUST HEIGHT AND DRILL INNER TUBE 3. Slide the inner tube PDI-591 up to the desired height (see note “A”). Push the plastic sleeve PDI-590 until the shoulder is seated in the outer tube. At the cross hole near the bottom of the outer tube, drill through the plastic sleeve and the inner tube from each side.
