Hearth & Home 8000TR Placement Instructions

Log placement

Model:

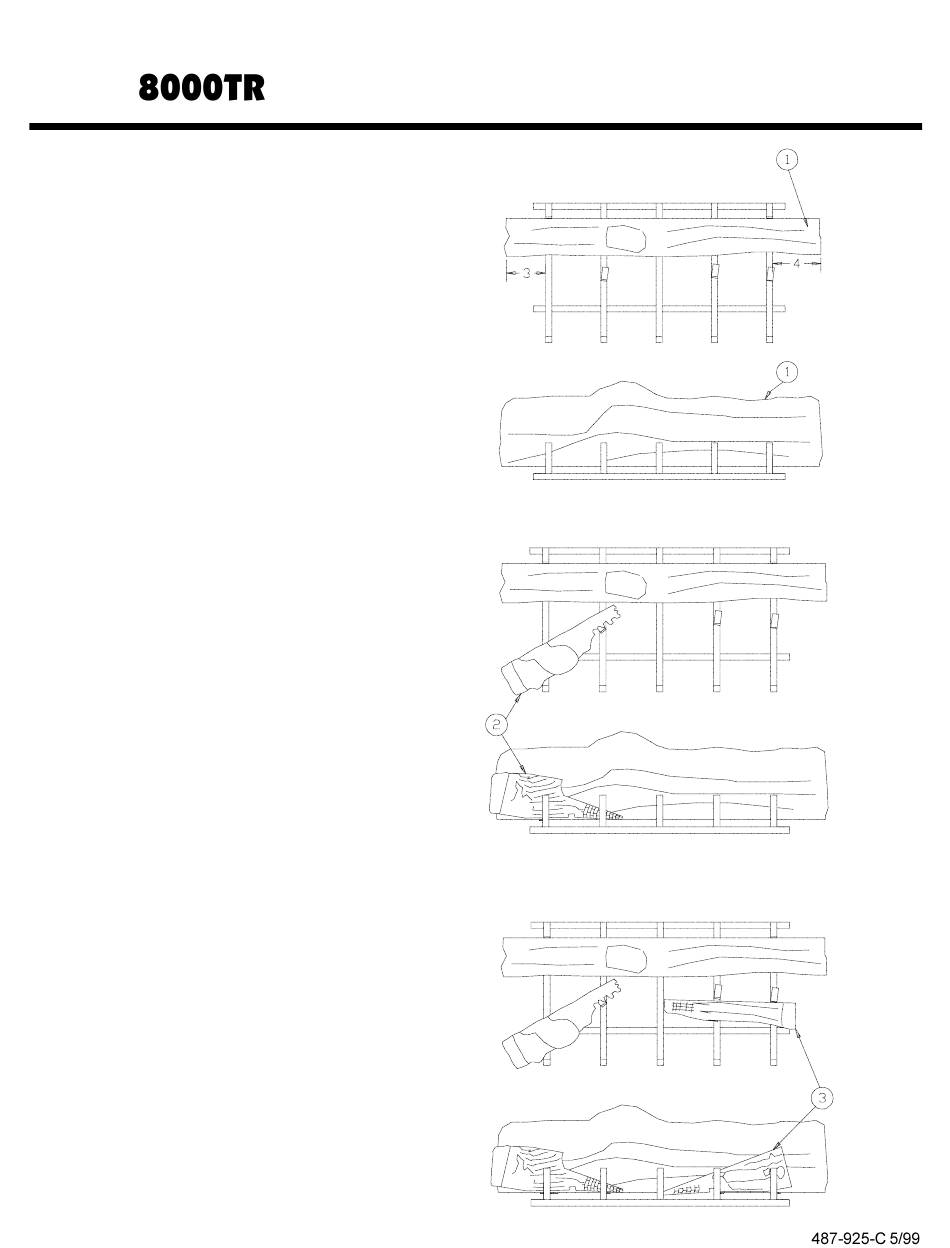

1. Positioning the back log #1: (SRV487-701)

The back log is the biggest log. Set the log be-

hind the two back brackets with the split look

toward the front. The back log should be brought

forward until it comes in contact with the brack-

ets. The log hangs 4" over the right grate bar and

3" over the left grate bar.

For Liquid Propane (LP) unit bend the back two

brackets located on the right and left along the

cut slots toward the back at 90

2. Positioning the left log #2: (SRV446-703)

Identify the log and then hold it with pointed end

toward the right. Set the log on the grate and bring

the left end towards the front until it comes in

contact with the grate bar. Push the right end

back against the bracket. The left end of the log

should hang 2 1/2" over the left grate bar.

3. Positioning the right log #3: (SRV446-702)

Identify the log and then hold it with pointed end

toward the left. Set the log on the grate and push

it back against the two right front brackets. The

pointed end should come in contact with the

middle bar.

angle.

LOG PLACEMENT

INSTRUCTIONS

Table of Contents

Do you have a question about the 8000TR and is the answer not in the manual?

Page 1: Log Placement
LOG PLACEMENT Model: INSTRUCTIONS 1. Positioning the back log #1: (SRV487-701) The back log is the biggest log. Set the log be- hind the two back brackets with the split look toward the front. The back log should be brought forward until it comes in contact with the brack- ets.
Page 2 4. Positioning the right middle log (split log) #4: (SRV487-703) Hold the log with the split towards the front and the burned area towards the back. Set the front end of the log between the second left and middle grate bar and lay the log onto the back log. Main- tain the 8 1/2”...
