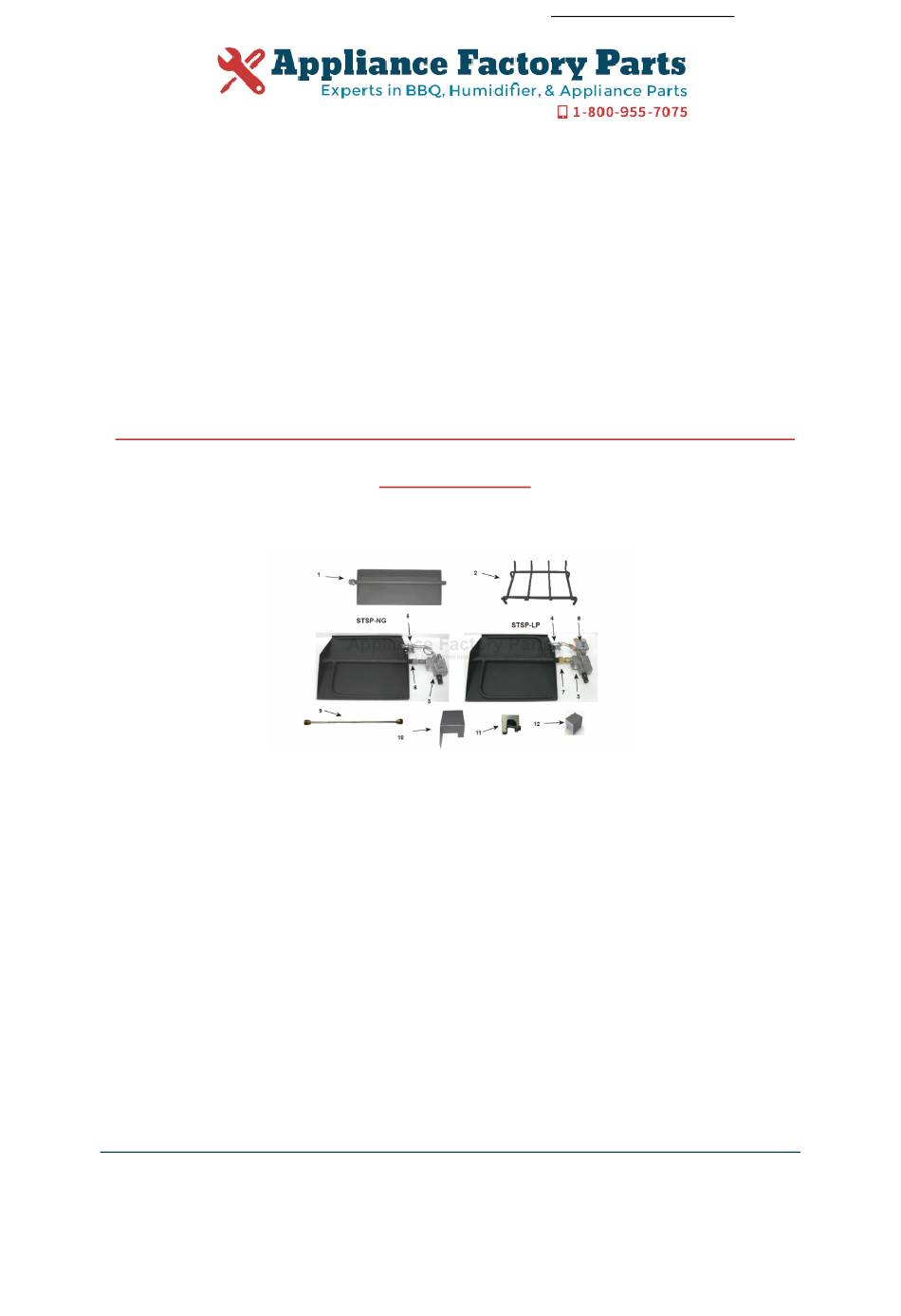

- Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. MAJESTIC STSP18LP Owner's Manual Shop genuine replacement parts for MAJESTIC STSP18LP Find Your MAJESTIC Fireplace Parts - Select From 585 Models -------- Manual continues below --------...
-
Page 2: Installation Instructions
Installation Instructions Installation and service of this Models: appliance should be performed by qualified personnel. Hearth & Home SP18NG, SP18LP, SP24NG, Technologies suggests NFI certified SP24LP, SP30NG, SP30LP, or factory-trained professionals, or technicians super- STSP18NG, STSP18LP, vised by an NFI... -
Page 3: Homeowner Reference Information
Read this manual before installing or operating this appliance. Please retain this owner’s manual for future reference. Congratulations Congratulations on selecting a Fireside gas log set—an el- This owner’s manual should be retained for future reference. egant and clean alternative to burning wood. The Hearth & We suggest you keep it with your other important documents Home Technologies gas log set you have selected is de- and product manuals. -
Page 4: Table Of Contents
Table of Contents Listing and Code Approvals A. Appliance Certification ......4 B. Table 1 ........4 C. -
Page 5: Listing And Code Approvals
Canada, the CAN/CGA B149 Installation Codes. If any installation. assistance is required during installation, please contact your local dealer or call the Technical Services Department at 1-888-427-3973 or 1-800-927-6841. B. Table 1 Product SP18NG SP18LP SP24NG SP24LP SP30NG SP30LP STSP18NG... - Page 6 Hearth & Home Technologies • Fireside Burner/Hearth Kits • 4004-318 • Rev K 3/2021...
-
Page 7: Getting Started
WARNING Getting Started Hearth & Home Technologies disclaims any A. Size of Firebox responsibility for, and the warranty will be voided by, the following actions: See Table 1 in Section 1.B. • Installation and use of any damaged appliance or B. -
Page 8: Appliance Preparation
Note: A listed (and Commonwealth of Massachusetts WARNING approved) 1/2 in. (13 mm) T-handle manual shut-off valve and flexible gas connector are connected to the 1/2 in. Shock Risk (13 mm) control valve inlet. Fire Risk • If substituting for these components, please consult Use ONLY optional accessories approved local codes for compliance. -
Page 9: Gas Pressure
• Gas Supply Pressure: Minimum inlet gas supply pressure WARNING must be 4.5 in. W.C. for natural gas or 11 in. W.C. for LP gas for the purpose of input adjustment. Maximum inlet Fire Risk gas pressure must not exceed 7.0 in. W.C. for natural Explosion Risk gas or 13 in. -
Page 10: Installation Instructions
Installation Instructions Figure 4.2 Center Grate Over Burner Pan A. Install the Damper Stop • Open the damper to the fully open position and secure it open with the stop as shown in Figure 4.1. • If the damper stop doesn’t fit your application, use a permanent means that will keep the damper open at least to the minimum vent opening as outlined in Table 1, Section 1.B. -
Page 11: Install The Logs
E. Install the Logs G. Inspect the Venting System The fireplace venting system is designed and constructed to • Install the logs using the installation instructions included develop a positive flow adequate to remove flue gases to the with them. outside atmosphere. -
Page 12: Operating Instructions
Operating Instructions FOR YOUR SAFETY READ BEFORE LIGHTING WARNING: IF THESE INSTRUCTIONS ARE NOT FOLLOWED EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY OR LOSS OF LIFE. A. This appliance has a pilot that must be lighted by hand. When lighting the pilot, follow these instructions exactly. -
Page 13: Glass Doors
B. Glass Doors • A qualified service technician must perform installation and repair. The appliance should be inspected and cleaned If your fireplace is equipped with glass doors: annually by a qualified service technician. More frequent • Glass doors should be in fully open position when cleaning may be required due to excessive lint, dust, pet appliance is operating. -
Page 14: Maintaining And Servicing The Appliance
Maintaining and Servicing the Appliance A. Servicing Your Appliance C. Annual Inspection WARNING WARNING Risk of injury or property damage Annual inspection by qualified technician recommended. Before servicing: Check: • Turn off gas. • Condition of doors, surrounds and fronts. •... -
Page 15: Troubleshooting
D. Troubleshooting With proper installation and maintenance, your new decorative gas appliance should provide years of trouble-free service. If you do experience a problem, refer to the troubleshooting guide below. This guide will assist you or a qualified service technician in the diagnosis of problems and the corrective action to be taken. Symptons Possible Cause Corrective Action... -
Page 16: Service Parts
SP18NG, SP18LP Service Parts Beginning Manufacturing Date: July 2010 18”Safety Pilot Hearth Kits Ending Manufacturing Date: Active SP-NG SP-LP IMPORTANT: THIS IS DATED INFORMATION. When requesting service or Stocked replacement parts for your appliance please provide model number and serial number. - Page 17 SP24NG, SP24LP Service Parts Beginning Manufacturing Date: July 2010 24” Safety Pilot Hearth Kits Ending Manufacturing Date: Active SP-NG SP-LP IMPORTANT: THIS IS DATED INFORMATION. When requesting service or Stocked replacement parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer.
- Page 18 SP30NG, SP30LP Service Parts Beginning Manufacturing Date: July 2010 30”Safety Pilot Hearth Kits Ending Manufacturing Date: Active SP-NG SP-LP IMPORTANT: THIS IS DATED INFORMATION. When requesting service or Stocked replacement parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer.
- Page 19 STSP18NG, STSP18LP Service Parts 18” See-through Safety Pilot Beginning Manufacturing Date: July 2010 Hearth Kits Ending Manufacturing Date: Active STSP-NG STSP-LP IMPORTANT: THIS IS DATED INFORMATION. When requesting service or Stocked replacement parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer.
- Page 20 STSP24NG, STSP24LP Service Parts Beginning Manufacturing Date: July 2010 24” See-through Safety Pilot Ending Manufacturing Date: Active Hearth Kits STSP-NG STSP-LP IMPORTANT: THIS IS DATED INFORMATION. When requesting service or Stocked replacement parts for your appliance please provide model number and serial number. All parts listed in this manual may be ordered from an authorized dealer.
-
Page 21: Optional Components
B. Optional Components Available for All Models REM-LIT Conversion Kit-From manual to variable flame with optional remote control LSK100-KIT Conversion Kit-From manual to on/off with a log switch LMK-SP Conversion Kit-For left side piping Hearth & Home Technologies • Fireside Burner/Hearth Kits • 4004-318 • Rev K 3/2021... -
Page 22: Warranty Coverage
Hearth & Home Technologies LLC LIMITED LIFETIME WARRANTY Hearth & Home Technologies LLC (“HHT”) extends the following warranty for HHT gas, wood, pellet and electric hearth appliances (each a “Product” and collectively, the “Product(s)”) and certain component parts set forth in the table below (“Component Part(s)”) that are purchased from a HHT authorized dealer or distributor. -
Page 23: Warranty Conditions
WARRANTY CONDITIONS: • Because HHT cannot control the quality of any Products sold by unauthorized sellers, this Warranty only covers Products that are purchased through an HHT authorized dealer or distributor unless otherwise prohibited by law; a list of HHT authorized dealers is available on the HHT branded websites. -
Page 24: Contact Information
D. Contact Information Please contact your Hearth & Home Technologies dealer with any questions or concerns. For the number of your nearest Hearth & Home Technologies dealer, please call 1-800-927-6841 or 1-888-427-3973. - NOTES - CAUTION DO NOT DISCARD THIS MANUAL Read, understand Leave this manual with •...
