INSTALLER: Leave this manual with party responsible for use and operation.
OWNER: Retain this manual for future reference.
NOTICE: DO NOT discard this manual!

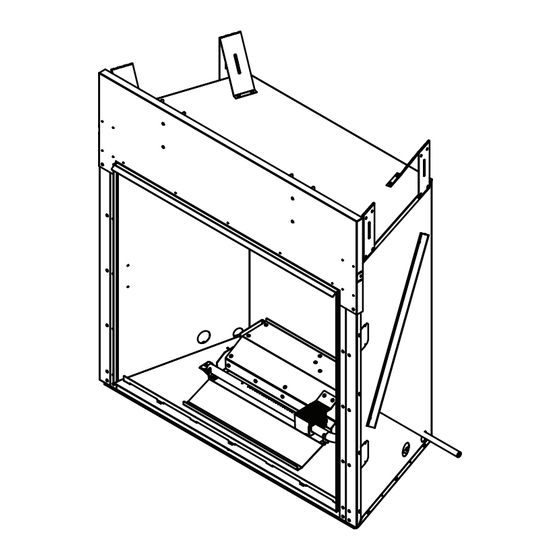

Model:
WARNING!
Risk Of Fire!
Do not install glass doors on this fireplace.
Glass doors could cause overheating
of adjacent structures.
DANGER
Outdoor Lifestyles by Hearth & Home Technologies Inc. • Courtyard Installation Manual • 4608-901 Rev. C • 09/18
Installation Manual
Installation and appliance setup
DANGER:
If you smell gas:
1. Shut off gas to the appliance.
2. Extinguish any open flame.
3. If odor continues, keep away from the
appliance and immediately call your
gas supplier or fire department.
WARNING: For outdoor use only.
WARNING:
Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance
An LP-cylinder not connected for
use shall not be stored in the vicinity
of this or any other appliance
WARNING:
Improper installation, adjustment, alteration, service or
maintenance can cause injury or property damage. Read
the installation, operating and maintenance instructions
thoroughly before installing or servicing this equipment.
Carbon Monoxide Hazard
This appliance can produce carbon
monoxide which has no odor.
Using it in an enclosed space can kill you.
Never use this appliance in an enclosed
space such as a camper, tent, car or home
1
Advertisement
Table of Contents
Related Manuals for Hearth & Home Outdoor Lifestyles ODCOUG-36T
Summary of Contents for Hearth & Home Outdoor Lifestyles ODCOUG-36T
- Page 1 Installation Manual Installation and appliance setup INSTALLER: Leave this manual with party responsible for use and operation. OWNER: Retain this manual for future reference. NOTICE: DO NOT discard this manual! DANGER: If you smell gas: 1. Shut off gas to the appliance. 2.
-
Page 2: Table Of Contents
Safety Alert Key: • DANGER! Indicates a hazardous situation which, if not avoided will result in death or serious injury. • WARNING! Indicates a hazardous situation which, if not avoided could result in death or serious injury. • CAUTION! Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury. •... -
Page 3: Standard Work Checklist
ATTENTION INSTALLER: Follow this Standard Work Checklist This standard work checklist is to be used by the installer in conjuction with, not instead of, the instructions contained in this installation manual. Customer: Date Installed: Lot/Address Location of Fireplace: Installer: Dealer/Distributor Phone # Model (circle one): ODCOUG-36T/ODCOUG-42T Serial #:... -
Page 4: Product Specific Information
Product Specific Information A. Appliance Certification D. Non-combustible Materials Specification Model: ODCOUG-36/ODCOUG-42 Material which will not ignite and burn. Such Laboratory: Underwriters Laboratories, Inc. (UL) materials are those consisting entirely of steel, Type: Outdoor Decorative Gas Appliances iron, brick, tile, concrete, slate, glass, plasters or Standard: ANSI Z221.97-2014, CSA 2.41-2014 any combination thereof. -
Page 5: Design And Installation Considerations
Getting Started A. Design and Installation Considerations B. Tools and Supplies Needed The Courtyard series gas appliance is designed for Before beginning the installation be sure that the outdoor use and may be installed as a stand alone unit following tools and building supplies are available. or built into a wall. -
Page 6: Inspect Appliance And Components
C. Inspect Appliance and Components Hearth & Home Technologies disclaims any responsibility for, and the warranty will be • Carefully remove appliance voided by the following actions: components from the packaging. • Installation and use of any damaged • Inspect the 6’ electrical cord for breaks or cuts. appliance. -
Page 7: Framing And Clearances
Framing and Clearances A. Appliance Dimension Diagrams Dimensions are actual appliance dimensions. Use for reference only. For framing dimensions and clearances, refer to Figures 3.1, 3.2, 3.3 and 3.4. ODCOUG-36 Back 31- 1/2 in. (800 mm) Rain Shield 44 in. (1118 mm) 44 in. -
Page 8: Clearances To Combustibles
B. Clearances to Combustibles When selecting a location for the appliance, it is important to consider the required clearances to walls (see Figures 3.1, 3.2, 3.3, and 3.4.) WARNING! Risk of Fire or Burns! Provide adequate clearance around air openings and for service access. - Page 9 ODCOUG-36 NOTICE: Illustrations reflect typical installations and are FOR DESIGN PURPOSES ONLY. Illustrations/ diagrams are not drawn to scale. Actual installation may vary due to individual design preference. Note: For actual appliance dimensions refer to Section 3.A. Notice: Flash the perimeter of the appliance, corners and the appliance face in a manner consistent with regional practices as required to prevent water penetration around the appliance.
- Page 10 ODCOUG-42 NOTICE: Illustrations reflect typical installations and are FOR DESIGN PURPOSES ONLY. Illustrations/ diagrams are not drawn to scale. Actual installation may vary due to individual design preference. Note: For actual appliance dimensions refer to Section 3.A. Notice: Flash the perimeter of the appliance, corners and the appliance face in a manner consistent with regional practices as required to prevent water penetration around the appliance.
-
Page 11: Minimum Clearance
C. Vent Terminal Clearances ► = AREA WHERE TERMINAL IS NOT PERMITTED = AIR SUPPLY INLET = FIREPLACE OPENING H or i Electrical Service U.S.A. Installations: In accordance with the current ANSI Z223.1/NFPA 54, National Fuel Gas Code. Canadian Installations: In accordance with the current CSA B149.1, Natural Gas and Propane Installation Code. U.S.A. -
Page 12: Hearth Extension/Floor Protection
• Tape and seal all joints and corners. • Provide proper flashing and moisture management if installed on surfaces that may Ceiling or Overhang rot or otherwise be damaged by water. (See also Section 4.B.) F. Wall Switch Control Assembly 36 in. -
Page 13: Built-In Installation
Wall Switch Wires Control Mounting Box With Cover Electrical Wiring Hole Figure 3.6. Wall switch mounting G. Built-in Installation When this appliance is installed into a wall, we recommend that the wall be an exterior wall system. • See framing measurements in Figures 3.1, 3.2 and 3.4. -
Page 14: Moisture Resistance
H. Moisture Resistance This outdoor appliance will shed moderate amounts of water, but is not waterproof. This 2 in. appliance must be enclosed or covered with (51 mm) combustible and non-combustible finish material per framing dimension requirements and all joints sealed to prevent water infiltration. -
Page 15: Appliance Preparation
Appliance Preparation G. Securing and Leveling Appliance CAUTION! Risk of cuts, abrasions or flying debris. Wear protective gloves and safety glasses during installation. Sheet metal edges are sharp. Position, level and secure the appliance. • Place the appliance into position on either a wood or non-combustible continuous flat surface. -
Page 16: Electrical Information
Electrical Information A. Wiring Requirements • Pre-wired internal junction box with 6’ cable C. Installing the Electrical Note: The Courtyard appliance MUST be connected to a GFCI (Ground Fault Circuit Interrupt) protected circuit breaker. Note: The Courtyard is supplied with a pre-wired junction box with a 6' cable that can be installed WARNING! Risk of Shock or Explosion! DO on the left or right side of the appliance for gas... - Page 17 Wiring Diagram JUNCTION BOX V AC POWER SUPPLY Figure 5.2. Wiring diagram Outdoor Lifestyles by Hearth & Home Technologies Inc. • Courtyard Installation Manual • 4608-901 Rev. C • 09/18...
-
Page 18: Gas Information
Gas Information A. Valve Access WARNING The valve and controls are located in the rear of the engine inside the burner assembly. See Fire Risk. Figure 6.1. Explosion Hazard. The control box and controls can be accessed by High pressure will damage valve. Low removing the top cover plate secured with six (6) pressure could cause an explosion. -
Page 19: Fuel Conversion
into the control area of the appliance. 1000 feet above 2000 feet. • Ensure that gas line does not come in contact • In Canada: Input ratings are certified without a with outer wrap of the appliance. Follow local reduction of input rate for elevations up to 4500 codes. -
Page 20: Finishing
Finishing A. Facing Material Mantel and Wall Projections WARNING! Risk of Fire! Comply with all The fireplace structure can be covered with any minimum clearances to combustible as specified. non-combustible material. Refer to Section 1.D. Framing or finishing material closer than the minimums listed must be constructed entirely WARNING! Risk of Fire! DO NOT apply of non-combustible materials (i.e. - Page 21 Good Faith Guidelines for TV Installations Above a Typical Gas Fireplace TV on the wall TV recessed into the wall Non-combustible Mantel (required) Measured from top of firebox 6” Min. opening. 4” Min. 4” Min. 12” 12” 12” 12” Min. Min.
-
Page 22: Appliance Setup
Appliance Setup A. Remove the Shipping Materials Remove the plastic coating and shipping materials from the firebox. WARNING! Risk of Fire! Close the ball valve before installing the media template to prevent accidental lighting. Remove the media template before lighting the appliance. B. -
Page 23: Reference Materials
Reference Materials A. Accessories LP Conversion Kit: • LPK-ODCOUG LP Conversion Kit for Courtyard Fireplace Media Kits: • Media-Ebony-48 Glass media, ebony (black) • Media-Cobalt-48 Glass media, cobalt (blue) • Media-Red-48 Glass media, scarlet (red) • Media-Amber-48 Glass media, amber •... - Page 24 Outdoor Lifestyles, a brand of Hearth & Home Technologies 2571 215th Street West, Lakeville, MN 55044 www.hearthnhome.com Please contact your Outdoor Lifestyles dealer with any questions or concerns. For the location of your nearest Outdoor Lifestyles dealer, please visit www.hearthnhome.com Outdoor Lifestyles by Hearth & Home Technologies Inc. • Courtyard Installation Manual • 4608-901 Rev. C • 09/18...
