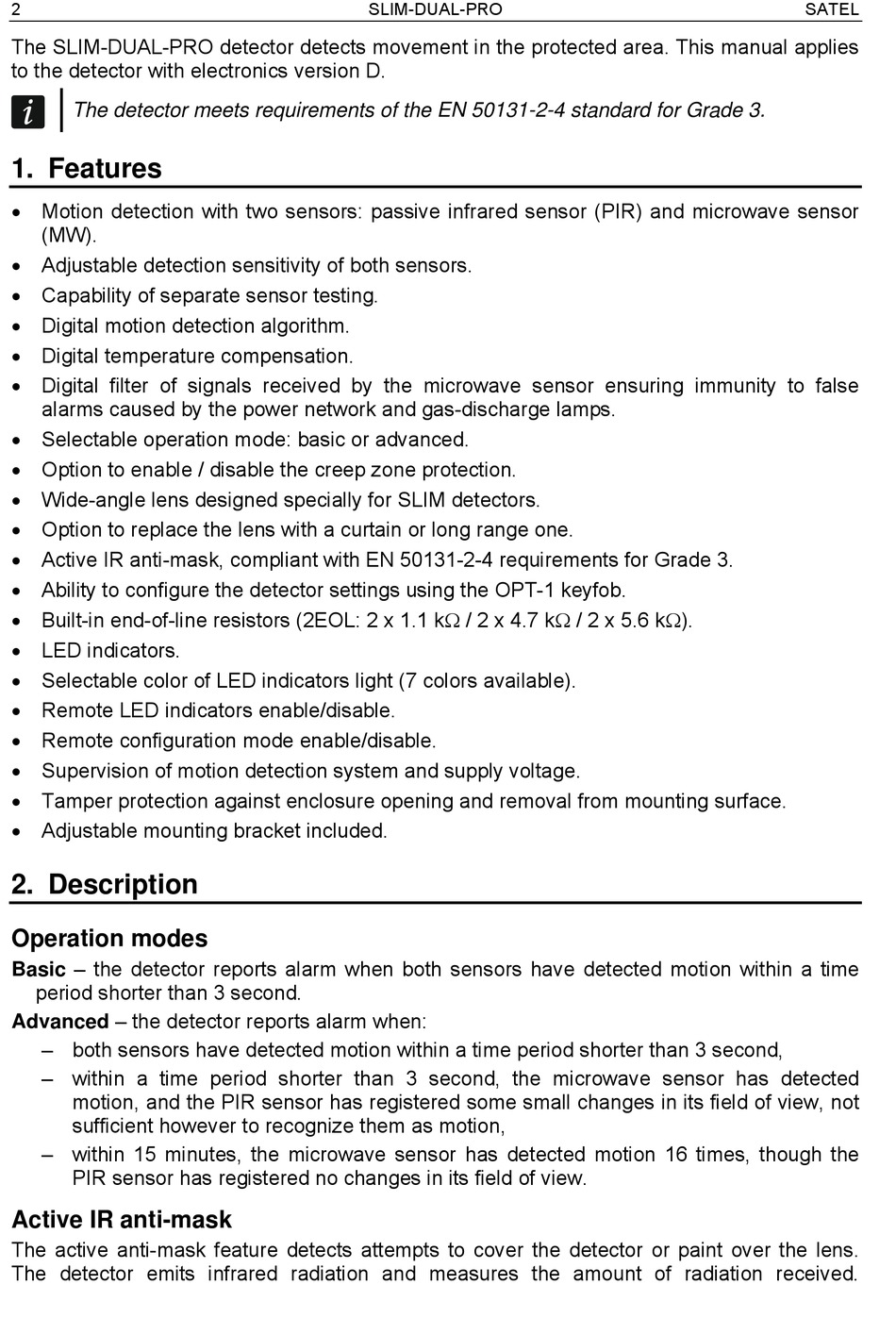

The SLIM-DUAL-PRO detector detects movement in the protected area. This manual applies
to the detector with electronics version D.
The detector meets requirements of the EN 50131-2-4 standard for Grade 3.

1. Features

 Motion detection with two sensors: passive infrared sensor (PIR) and microwave sensor
(MW).
 Adjustable detection sensitivity of both sensors.
 Capability of separate sensor testing.
 Digital motion detection algorithm.
 Digital temperature compensation.
 Digital filter of signals received by the microwave sensor ensuring immunity to false
alarms caused by the power network and gas-discharge lamps.
 Selectable operation mode: basic or advanced.
 Option to enable / disable the creep zone protection.
 Wide-angle lens designed specially for SLIM detectors.
 Option to replace the lens with a curtain or long range one.
 Active IR anti-mask, compliant with EN 50131-2-4 requirements for Grade 3.
 Ability to configure the detector settings using the OPT-1 keyfob.
 Built-in end-of-line resistors (2EOL: 2 x 1.1 k / 2 x 4.7 k / 2 x 5.6 k).
 LED indicators.
 Selectable color of LED indicators light (7 colors available).
 Remote LED indicators enable/disable.
 Remote configuration mode enable/disable.
 Supervision of motion detection system and supply voltage.
 Tamper protection against enclosure opening and removal from mounting surface.
 Adjustable mounting bracket included.

2. Description

Operation modes

Basic – the detector reports alarm when both sensors have detected motion within a time
period shorter than 3 second.
Advanced – the detector reports alarm when:
– both sensors have detected motion within a time period shorter than 3 second,
– within a time period shorter than 3 second, the microwave sensor has detected
motion, and the PIR sensor has registered some small changes in its field of view, not
sufficient however to recognize them as motion,
– within 15 minutes, the microwave sensor has detected motion 16 times, though the
PIR sensor has registered no changes in its field of view.

Active IR anti-mask

The active anti-mask feature detects attempts to cover the detector or paint over the lens.
The detector emits infrared radiation and measures the amount of radiation received.
