Autoscript TallyPlus User Manual page 9

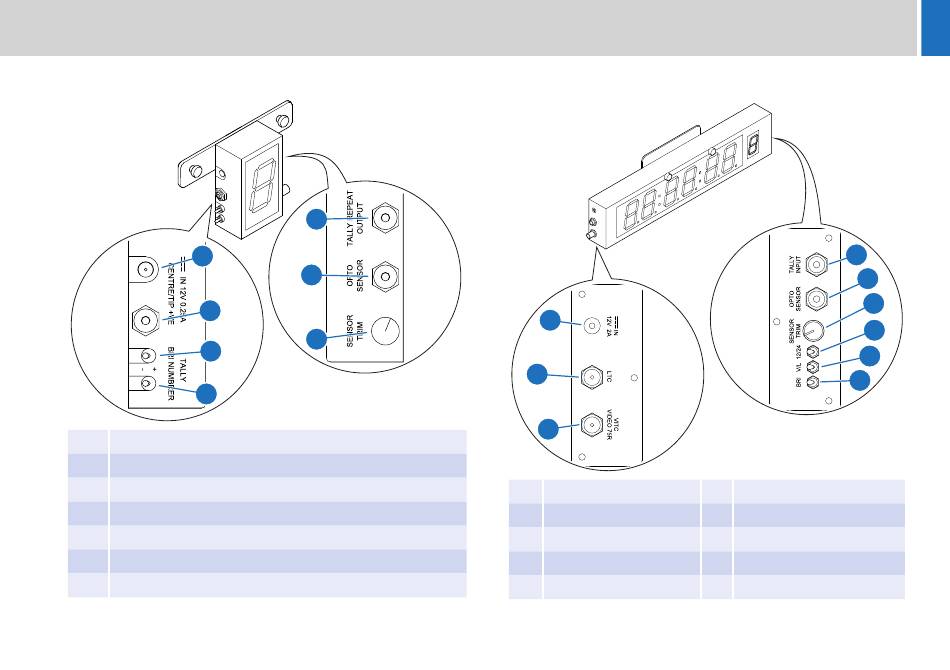

TallyPlus Connections and Controls
1
2
3
4
1 DC power IN (2.1 mm power socket)
2 DC power IN (3.5 mm mono jack socket)
3 Display brightness adjust switch
4 Tally indicator number adjust switch
5 Tally light repeat OUT socket
6 Opto sensor IN socket
7 Opto sensor trim adjuster
5
6
7
Components and Connections
ClockPlus Connections and Controls
1
2
3
1 DC power IN socket
2 LTC IN socket
3 VITC IN socket
4 Tally signal IN socket
5 Opto sensor IN socket
4
5
6
7
8
9
6 Opto sensor trim adjuster
7 12/24 hour select switch
8 VITC/LTC select switch
9 Brightness adjust switch
7
