Tally Function Operation (TallyPlus and
ClockPlus)

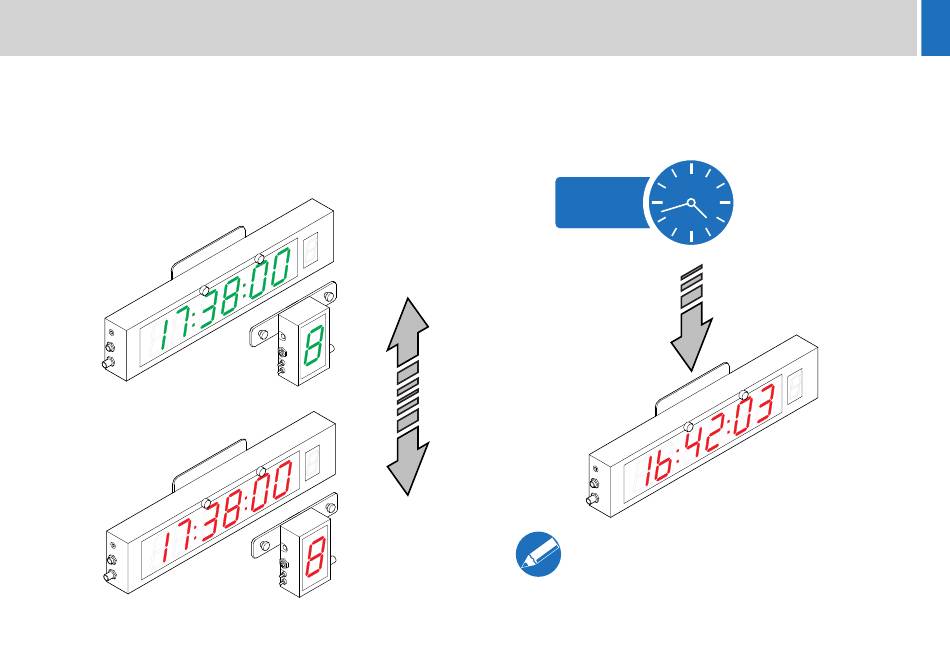

The tally indication on the TallyPlus and ClockPlus is represented by
the colour of the display digits changing between green and red.
Depending on how the system has been configured, the tally indication
change can be sourced from either the camera or monitor tally light, a
switch, or a logic control signal.

Timecode Operation (ClockPlus)

The ClockPlus can display SMPTE/EBU station timecode when
connected to a suitable LTC or VITC source. When a timecode source
is connected the clock will instantly set itself to the input time.
OFF AIR
ON AIR
LTC or VITC
Timecode
Source
If the timecode source is removed, the clock will continue
to count and display time but with decreased accuracy.

Operation
