Installation
Monitor Mounting - ELP15

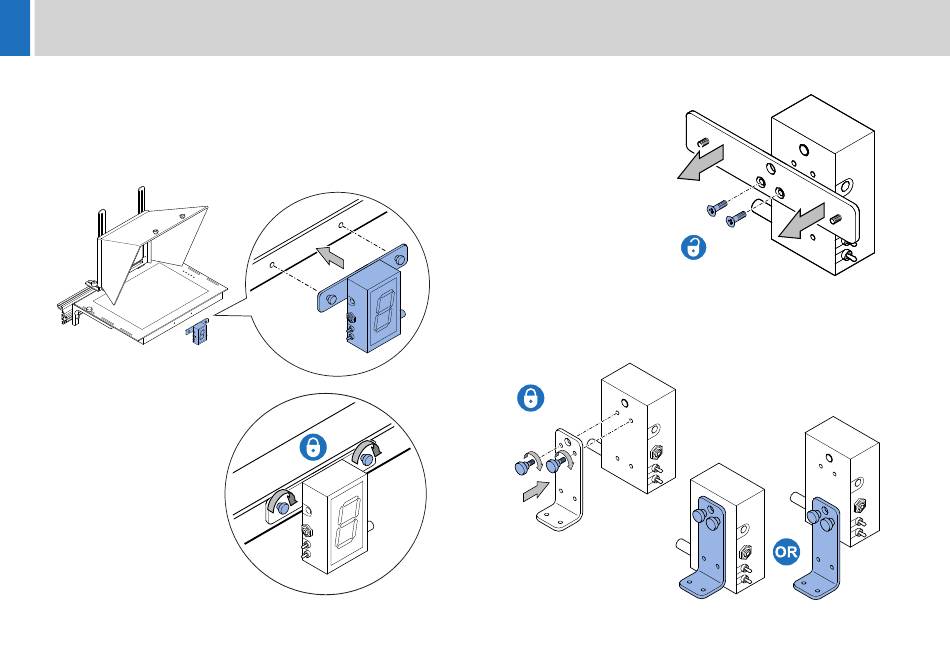

The TallyPlus is mounted to the front of the ELP15 monitor. Unlike the
other LED monitors, this monitor does not have a tally light, and
therefore the built-in opto sensor on the TallyPlus will not function.
1.
Align the fixing thumbscrews on the wing plate with the holes on
the front of the monitor.
2.
Tighten the two fixing
thumb screws to
secure the TallyPlus in
position.
10
Hood Mounting
1.
If fitted, remove the wing
plate from the TallyPlus by
unscrewing the two
countersink screws.
2.
Fit the mounting bracket to the rear of the TallyPlus using the two
fixing screws provided. The mounting bracket can be fitted to the
lower set of mounting holes to increase the height of the TallyPlus
above the hood.
