Mounting the TallyPlus

WARNING! Before attempting to install or adjust
accessories, the tilt axis of the head support must be
securely locked horizontally (tilt axis).
The TallyPlus can be mounted to the prompter monitor or a compatible
hood, depending on the requirements of the installation.
Monitor Mounting

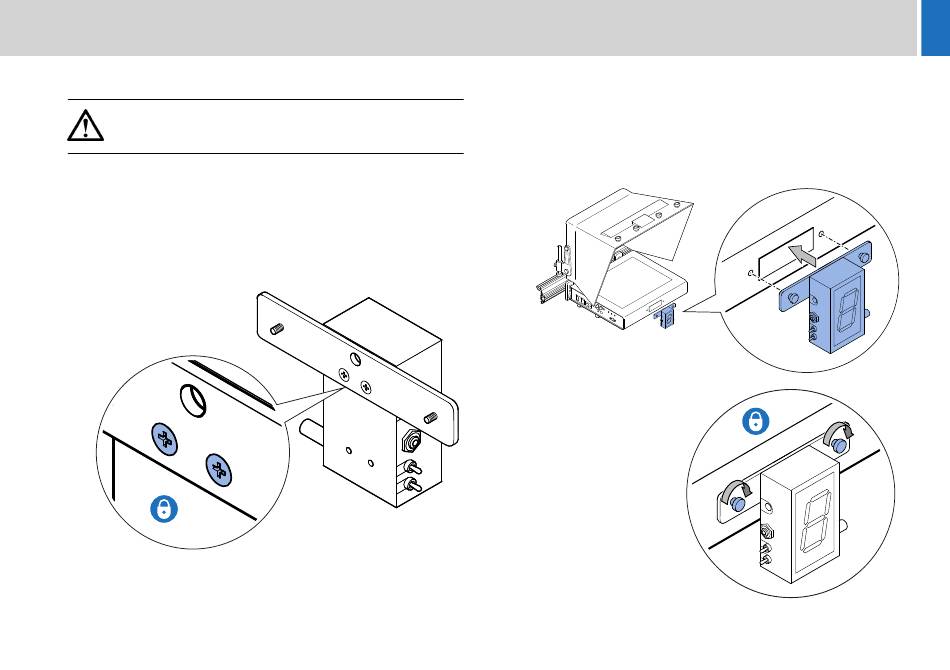

Before the TallyPlus can be mounted to a monitor, the supplied wing
plate must be fitted to the rear of the TallyPlus with the two countersink
screws.
Monitor Mounting - LED TFT and LED 8
The TallyPlus is mounted to the front of the monitor over the existing
tally light. The built in opto sensor on the rear of the TallyPlus can then
capture and replicate the status of the hidden tally light.
1.
Align the fixing thumbscrews on the wing plate with the holes
either side of the tally light on the monitor.
2.
Tighten the two fixing
thumb screws to
secure the TallyPlus in
position.
Installation
9
