Mounting and Connection Instructions IDENT-KEY operating units
3.

Operation

3.1
IDENT-KEY operating unit, Item no. 022194
The operating unit is activated by actuating the "I" (on) or the "O" (off) key. The operating unit remains in
the reading mode for about 10 seconds. During this time, the code carrier (e.g. key fob) has to be
passed in front of the operating unit. If the code carrier has the authorization, the release is issued and
the LED "ready" (see 5.) lights up. Now the user is authorized to arm/disarm the intrusion detection
system with the "I" or the "O" key.
3.2
IDENT-KEY operating unit with numerical keypad, Item no. 022195.10
The operating unit is a switching element with "memory-aided locking" and can be used for all intrusion
detection central units as well as access systems of all VdS-classes.
Arming intrusion detection systems:
The operating unit is activated by actuating a key. The operating unit remains in the reading mode for
about 10 seconds. During this time, the code carrier (e.g. key fob) has to be passed in front of the
operating unit. If the code carrier has the authorization, the release is issued and the LED "ready" (see
6.) lights up. Now the user is authorized to arm the intrusion detection system with the "I" (on) key.
Disarming intrusion detection systems:
To activate the operating unit a 1- to 6-digit
memory code
entered. The operating unit remains in the reading mode for about 10 seconds. During this time, the
code carrier (e.g. key fob) has to be passed in front of the operating unit. If the code carrier has the
authorization, the release signal is issued and the LED "ready" (see 6.) lights up. Now the user is
authorized to disarm the intrusion detection system with the "O" (off) key.
3.3

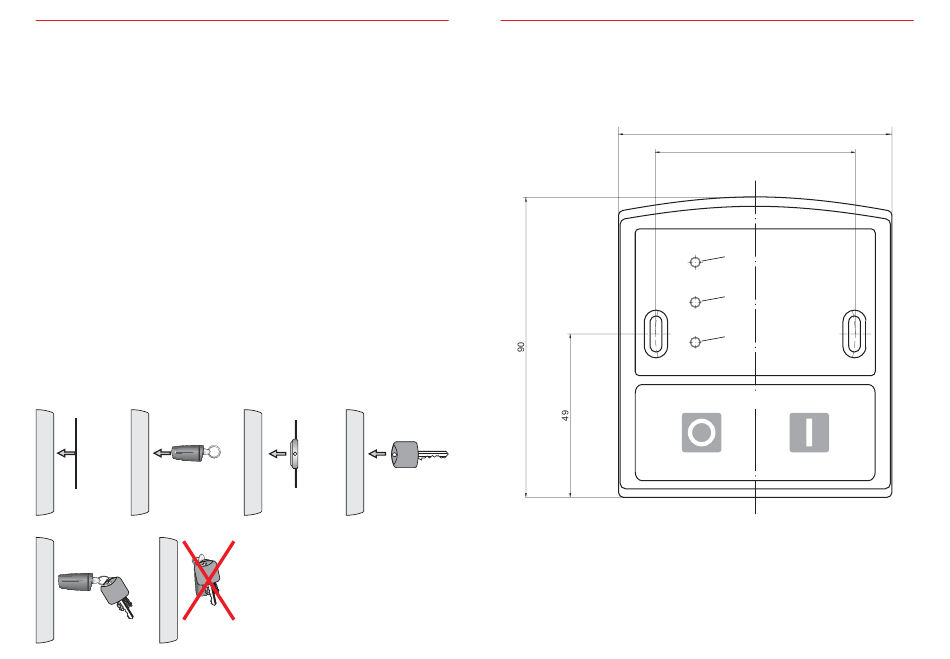

Correct application of data carriers

Due to the position of the transmission/reception antenna inside the different Ident data carriers, a
different read position of the data carrier is required to the operating unit.
IK data carrier
IK data carrier
card
key fob
Correct
Incorrect
, depending on the programming, has to be
IK data carrier
IK data carrier
watch
key cap
Influence on the read process by other data
carriers :
In order to prevent several data carriers affecting
the read process, ensure that the desired data
carrier is held separately, if possible in the
reading range .
14
13
4.

Dimensions

4.1
Operating unit Item no. 022194
Housing depth:
Mounting and Connection Instructions IDENT-KEY operating units
82
60
LED "ready"
LED "disarmed"
LED "alarm"
AUS
EIN
15 mm
