JADE™ Economizer Module
(MODEL W7220)
PRODUCT DESCRIPTION
The JADE™ Economizer System is an expandable
economizer control system, which includes a W7220
Economizer Module (controller) with an LCD and keypad. The
W7220 can be configured with optional sensors.
The W7220 Economizer Module can be used as a stand-
alone economizer module wired directly to a commercial set
back space thermostat and sensors to provide outside air dry-
bulb economizer control.
The W7220 Economizer Module can be connected to optional
Sylk Bus sensors for single or differential economizer control.
The W7220 Economizer Module provides power and
communications on the Sylk Bus for the Sylk Bus sensors.
The W7220 Economizer Module automatically detects
sensors by polling the Sylk Bus to determine which sensors
are present. If a sensor loses communications after it has
been detected, the W7220 Economizer indicates a device fail
error on its LCD.
System Components
The JADE™ Economizer System includes an Economizer
Module, 20k mixed air sensor, damper actuator, an optional
CO
sensor, and either a 20k outdoor air temperature sensor
2
or Sylk Bus sensors for measuring outside air and return air
enthalpy, temperature, and humidity.

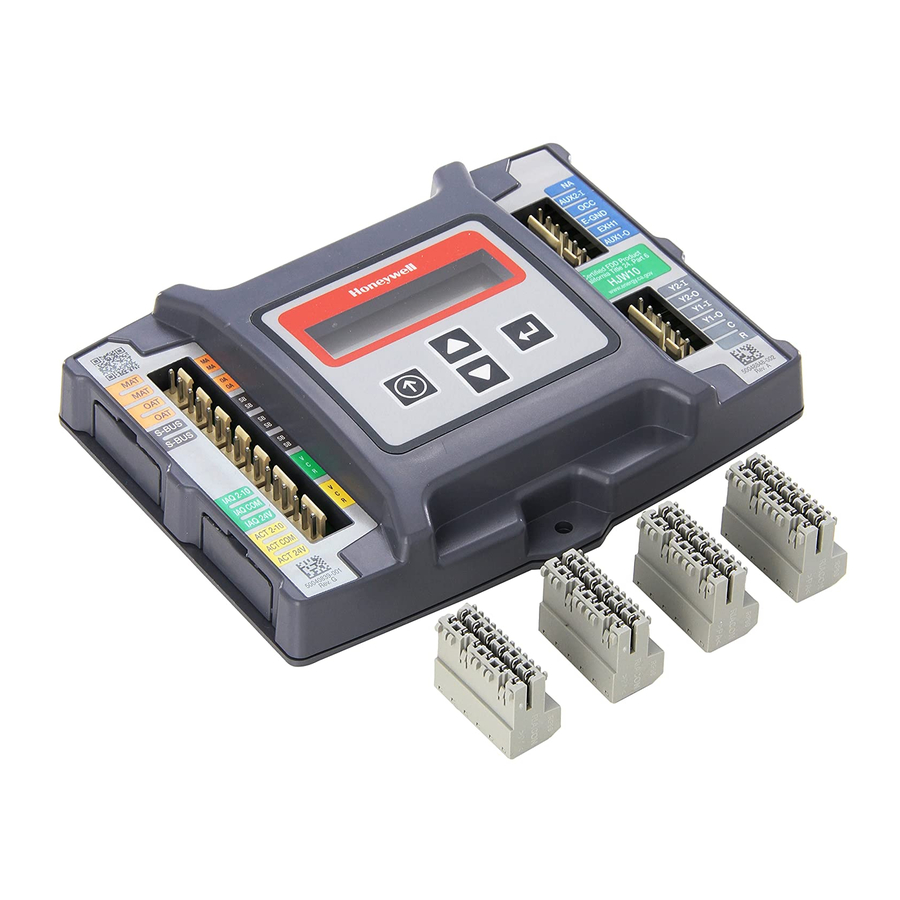

Economizer Module
This is the core of the JADE™ Economizer System and
includes the user interface for the system. The W7220
Economizer Module provides the basic inputs and outputs to
provide simple economizer control. When used with the
optional Sylk Bus sensors, the Economizer Module provides
more advanced economizer functionality.
Sylk Bus Sensors (optional)
The Sylk Bus Sensor is a combination temperature and
humidity sensor which is powered by and communicates on
the Sylk Bus. Up to three sensors may be configured with the
JADE™ Economizer Module.
CO
Sensor (optional)
2
A CO
sensor (non-communicating or non-Sylk Bus) can be
2
added for Demand Control Ventilation (DCV).
Product Description ..........................................................
Specifications ...................................................................
Before Installation .............................................................
Installation and Setup .......................................................
Mounting ...........................................................................
Wiring ...............................................................................
Wiring Application Examples ............................................
Interface Overview ........................................................... 11
Setup and Configuration ................................................... 15
Checkout .......................................................................... 18
Troubleshooting ................................................................ 20
E4436
PRODUCT DATA
Contents
1
2
3
3
3
4
7
63-2700-01

Advertisement

Table of Contents
loading

Related Manuals for Honeywell JADE W7220

Summary of Contents for Honeywell JADE W7220

  • Page 1 JADE™ Economizer Module (MODEL W7220) PRODUCT DATA The W7220 Economizer Module automatically detects sensors by polling the Sylk Bus to determine which sensors are present. If a sensor loses communications after it has been detected, the W7220 Economizer indicates a device fail error on its LCD.

  • Page 2: Specifications

    Actuator signal: 2-10 Vdc; minimum actuator impedance is W7220A Economizer Module 2k ohm The module is designed for use with any Honeywell 2 to 10 Exhaust fan and AUX: Contact closure (24 Vac) Vdc or Honeywell Sylkbus communicating actuator. The...

  • Page 3: Before Installation

    JADE™ ECONOMIZER MODULE BEFORE INSTALLATION MOUNTING Review the “Specifications” on page 2 before installing the The This section describes the mounting procedures for the JADE™ Economizer System. JADE™ Economizer module and the sensors. When Installing This Product Economizer Module Location and Mounting 1.

  • Page 4: Wiring

    JADE™ ECONOMIZER MODULE WIRING Sensor Mounting The sensors can be mounted directly on to the sheet metal of unit or can be mounted in the air stream using the duct All wiring must comply with applicable electrical codes and mounting kit. ordinances, or as specified on installation wiring diagrams.
  • Page 5 JADE™ ECONOMIZER MODULE Table 1. Economizer Module - Left hand terminal blocks. 1. STRIP 1/2 IN. (13 MM) FROM WIRES TO Label Type Description BE ATTACHED AT 1/2 (13) ONE TERMINAL. Top Left Terminal Block 20k NTC Mixed Air Temperature Sensor 2.
  • Page 6 JADE™ ECONOMIZER MODULE Sylk Bus Sensor Wiring Use Fig. 6 and Table 3 to locate the wiring terminals for each Sylk Bus sensor. Use Fig. 6 and Table 4 to set the DIP switches for the desired use of the sensor. SWITCH LABEL SWITCHES...

  • Page 7: Wiring Application Examples

    JADE™ ECONOMIZER MODULE WIRING APPLICATION Stand-alone Economizer The most basic configuration is the stand-alone Economizer EXAMPLES (see Fig. 7 and Fig. 8 on page 8). A stand-alone Economizer is directly wired to sensors, This section describes the wiring configurations for the JADE™ actuators, thermostat, and mechanical controls in the roof top Economizer system.
  • Page 8 NOTE THAT THE C7250 20K NTC SENSOR CAN BE MOUNTED IN THE OAT ONLY IN THIS CONFIGURATION. THERMOSTAT IF THE COMMUNICATING ACTUATOR IS USED, IT IS CONNECTED TO THE S-BUS TERMINALS USING M32284 2-WIRE SYLKBUS WIRING. Fig. 8. Stand-alone dry-bulb Economizer configuration with Honeywell MS7503 Direct Coupled Actuator. 63-2700—01...
  • Page 9 IF THE COMMUNICATING ACTUATOR IS USED, IT IS CONNECTED TO THE S-BUS DISCHARGE AIR TERMINALS USING 2-WIRE SYLKBUS WIRING. TEMP/HUMIDITY (ENTHALPY) SYLKBUS SENSOR M28979 Fig. 9. Economizer with Sylk Bus sensors for enthalpy configuration with Honeywell M7215 black motor. 63-2700—01...
  • Page 10 IF THE COMMUNICATING ACTUATOR IS USED, IT IS CONNECTED TO THE S-BUS DISCHARGE AIR TERMINALS USING 2-WIRE SYLKBUS WIRING. TEMP/HUMIDITY (ENTHALPY) SYLKBUS SENSOR M32285 Fig. 10. Economizer with Sylk Bus sensors for enthalpy configuration with a Honeywell MS7305 Direct Coupled Actuator. 63-2700—01...

  • Page 11: Interface Overview

    JADE™ ECONOMIZER MODULE INTERFACE OVERVIEW Using the Keypad with Settings and Parameters This section describes how to use the Economizer’s user To use the keypad when working with Setpoints, System and interface for: Advanced Settings, Checkout tests, and Alarms: • Keypad and menu navigation •...
  • Page 12 JADE™ ECONOMIZER MODULE Table 5. Menu Structure Parameter Parameter Default Menu Parameter Value Range and Increment Notes YES = economizing available; the system can use outside air for STATUS ECON AVAIL YES/NO free cooling when required. ECONOMIZING YES/NO YES = outside air being used for 1 stage cooling.
  • Page 13 JADE™ ECONOMIZER MODULE Table 5. Menu Structure . (Continued) Parameter Parameter Default Menu Parameter Value Range and Increment Notes Setpoint determines where the economizer will modulate the OA SETPOINTS MAT SET 53ºF 38 to 65 ºF; damper to maintain the mixed air temperature. increment by 1 LOW T LOCK 32ºF...
  • Page 14 JADE™ ECONOMIZER MODULE Table 5. Menu Structure . (Continued) Parameter Parameter Default Menu Parameter Value Range and Increment Notes Temp to activate Freeze Protection (close damper and alarm if ADVANCED MA LO SET 45ºF 35 to 55 ºF; temp falls below setup value) SETUP increment by 1º...

  • Page 15: Setup And Configuration

    JADE™ ECONOMIZER MODULE SETUP AND CONFIGURATION Time-out and Screensaver When no buttons have been pressed for 10 minutes, the LCD displays a screen saver, which cycles through the Status items. Before being placed into service, the JADE™ Economizer Each Status items displays in turn and cycles to the next item module must be setup and configured for the installed system.
  • Page 16 JADE™ ECONOMIZER MODULE ↵ To make a parameter or setpoint change: 6. Press the button (Enter) to store the new value for the   1. Use the buttons to move to the desired menu. parameter. ↵ 2. Press the button (Enter) to display to the first 7.
  • Page 17 JADE™ ECONOMIZER MODULE Table 7. Setup and Setpoint Menus. (Continued) Parameter Default Parameter Menu Parameter Value Range and Increment Notes Indicates shutdown signal from space thermostat or ADVANCED SETUP SD INPUT unitary controller. When controller receives 24 Vac (continued) input on the SD terminal in conventional mode, the OA damper will open if programmed for OPN and OA damper will close if programmed for CLO.

  • Page 18: Checkout

    Initial Menu Display For checkout, review the Status of each configured parameter On initial start up, Honeywell displays on the first line and and perform the Checkout tests. Economizer W7220 on the second line. After a brief pause, the revision of the software appears on the first line and the NOTE: See “Interface Overview”...
  • Page 19 JADE™ ECONOMIZER MODULE Table 8. Status Menu. (Continued) Parameter Default Parameter Menu Parameter Value Range and Increment Notes Displays when Discharge Air Sylk Bus sensor is STATUS (continued) DA TEMP _ _._ ºF 0 to 140 ºF connected and displays measured discharge air temperature.

  • Page 20: Troubleshooting

    Automation and Control Solutions Honeywell International Inc. 1985 Douglas Drive North Golden Valley, MN 55422 Honeywell Limited-Honeywell Limitée 35 Dynamic Drive ® U.S. Registered Trademark Toronto, Ontario M1V 4Z9 © 2010 Honeywell International Inc. 63-2700—01 M.S. Rev. 11-10 customer.honeywell.com Printed in U.S.A.
