Mounting and Connection Instructions IDENT-KEY operating units
6.

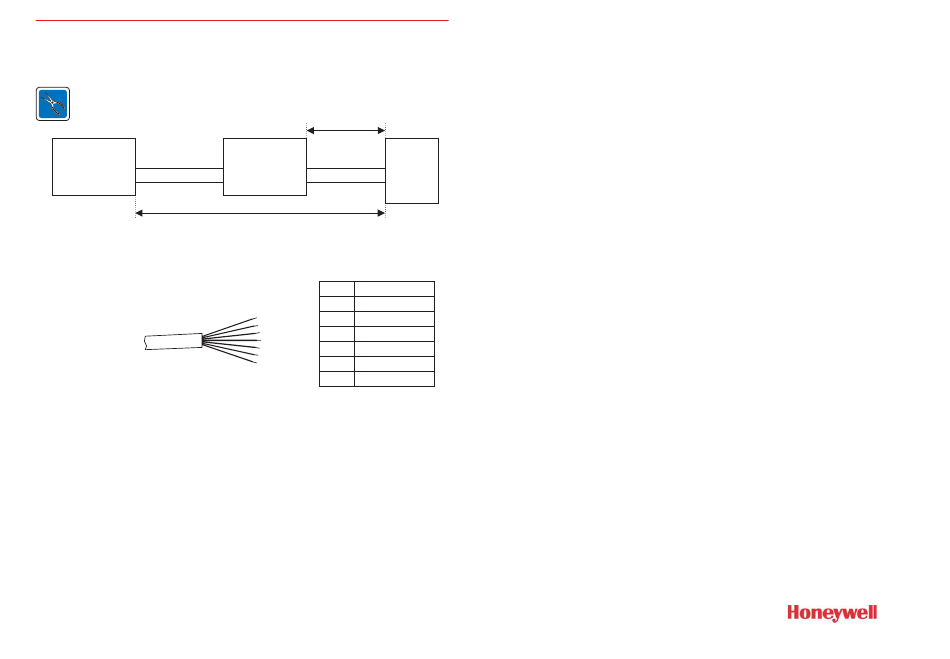

Connecting instructions / grounding
Please observe:
Provided that the operating voltage drop does not exceed 0.5 V DC (see drawing) the
IDENT-KEY operating unit can be mounted with a maximum distance of 100 m to the
evaluation unit
.
Intrusion detection
control unit
+U_b
0V
max. operating voltage drop = 0.5 V
Grounding:
The ground connection is realized via the shielding of the feed lines. For this purpose the shielding of
the operating unit in the evaluation unit must be connected with the intrusion detection central unit.
7.

Connection diagram

8.

Technical data

Operating rated voltage U_b
Operating voltage rate
Current consumption (Item-No. 022194)
Current consumption (Item-Nr. 022195.10)
Additional current consumption:
for reading process
each LED
Buzzer
Operating temperature range
Storage temperature range
International protection acc. to DIN 40 050
Environmental class acc. to VdS
Color
Length of the connecting cable
Reading distance
In case of unfavourable mounting ground (e.g. metal) the range might be reduced.
The IK-operating units 022194 and 022195.10
R&TTE 1999/5/EC Directive, if used for its intended use.
The EC-Declaration of Conformity can be downloaded from our homepage (Service / Download).
max. 100 m
IDENT-KEY
Evaluation unit
operating unit
+U_b
+U_b
+U_b
0V
0V
0V
white
U_b 0 V
brown
U_b +12 V DC
wh
green
enable
br
gn
yellow
data
ye
gr
grey
LED alarm
pi
bl
pink
buzzer
blue
LED disarmed
12 V DC
10 V to15 V DC
4 mA
5.5 mA
40 mA
10 mA
75 mA
-20 °C to +50 °C
-30 °C to +60 °C
IP 65
III
greywhite (similar to RAL 9002)
6 m
up to 6 cm (key cap)
up to 8 cm (key fob)
up to 12 cm (ID-card)
comply with the essential requirements of the
19
Honeywell Security Deutschland
Novar GmbH
Johannes-Mauthe-Straße 14
D-72458 Albstadt
www.honeywell.com/security/de
info.security.de@honeywell.com
P00624-10-002-05
09.03.2006
© 2006 Novar GmbH
