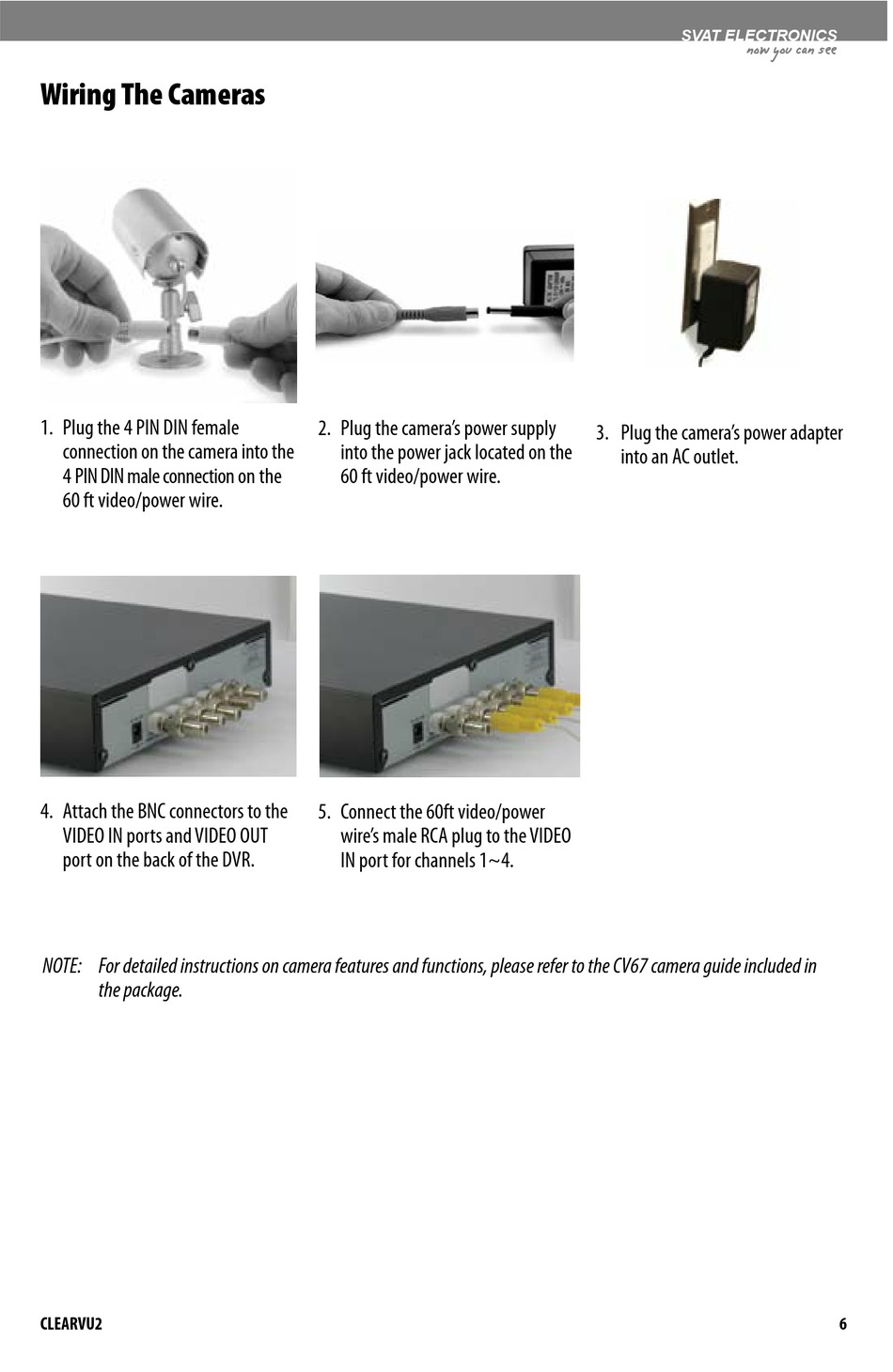

Wiring The Cameras

1. Plug the 4 PIN DIN female

connection on the camera into the

4 PIN DIN male connection on the

60 ft video/power wire.

4. Attach the BNC connectors to the

VIDEO IN ports and VIDEO OUT

port on the back of the DVR.

NOTE: For detailed instructions on camera features and functions, please refer to the CV67 camera guide included in

the package.

CLEARVU2

2. Plug the camera's power supply

into the power jack located on the

60 ft video/power wire.

5. Connect the 60ft video/power

wire's male RCA plug to the VIDEO

IN port for channels 1~4.

SVAT ELECTRONICS

now you can see

3. Plug the camera's power adapter

into an AC outlet.
