SVAT Compact Security System CLEARVU5 Quick Start Manual

NOTE: The CV67 does not support audio.
For more information on your SVAT product please visit: www.svat.com
CLEARVU5 QUICK START GUIDE
Follow these instructions for the installation
of each camera. The 60ft video/power wire
has two connections: one for video out, and
one for power.

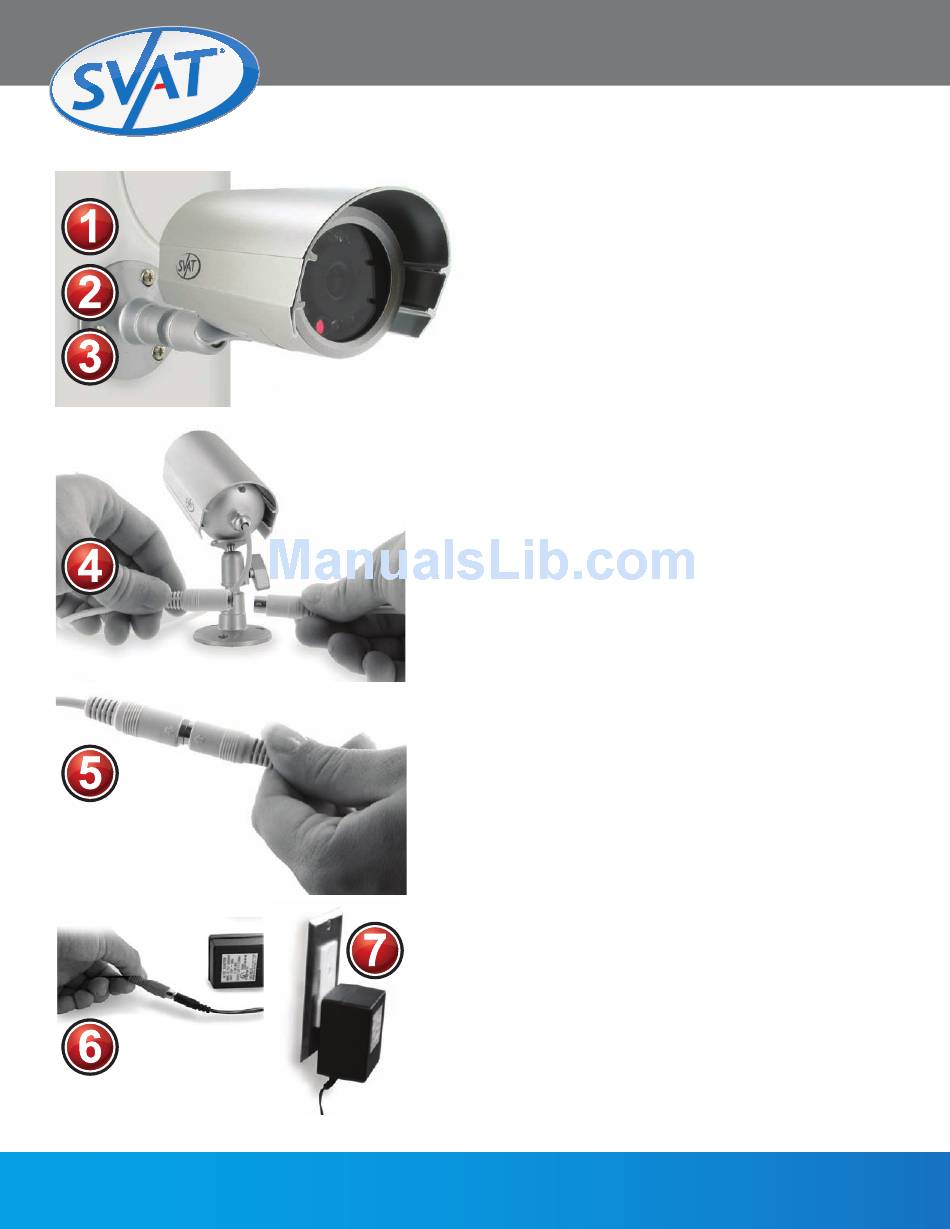

1. Screw the mounting bracket into the camera's
2. Mount the camera in the desired location no
3. Adjust cameras to the desired viewing
4. Plug the 4 PIN DIN female connection
5. Match the two arrows on top of both
6. Plug the camera's power supply into the
7. Plug the camera's power adapter into an AC
STEP 1: Camera Installation
mounting hole, turning it clockwise.
more than 60 feet from the TV/Monitor/VCR
DVR unless you have purchased additional
wiring. You may wall mount or desk mount
these cameras.
angles.
on the camera into the 4 PIN DIN male
connection on the 60ft video/power wire.
connecting cables.
power jack located on the 60ft video/power
wire.
outlet.
