Door contact

Advertisement

Quick Links

Product Summary
The Door Contact Models CT 600 (white) CT 610 (brown),
are wireless, universal door contacts designed for use in
RSIalarm ™ security systems. The contact includes the
following features:
>
Lithium battery for long life
>
External input for normally closed (NC) intrusion devices
>
Dual tamper function provides detection for both wall
and cover tamper.
>
Transmits check-in/status signal every 8 minutes
Programming/RF Testing
The following provides summarized steps for device
programming and testing. For complete details, refer
to the control panel installation manual.
1

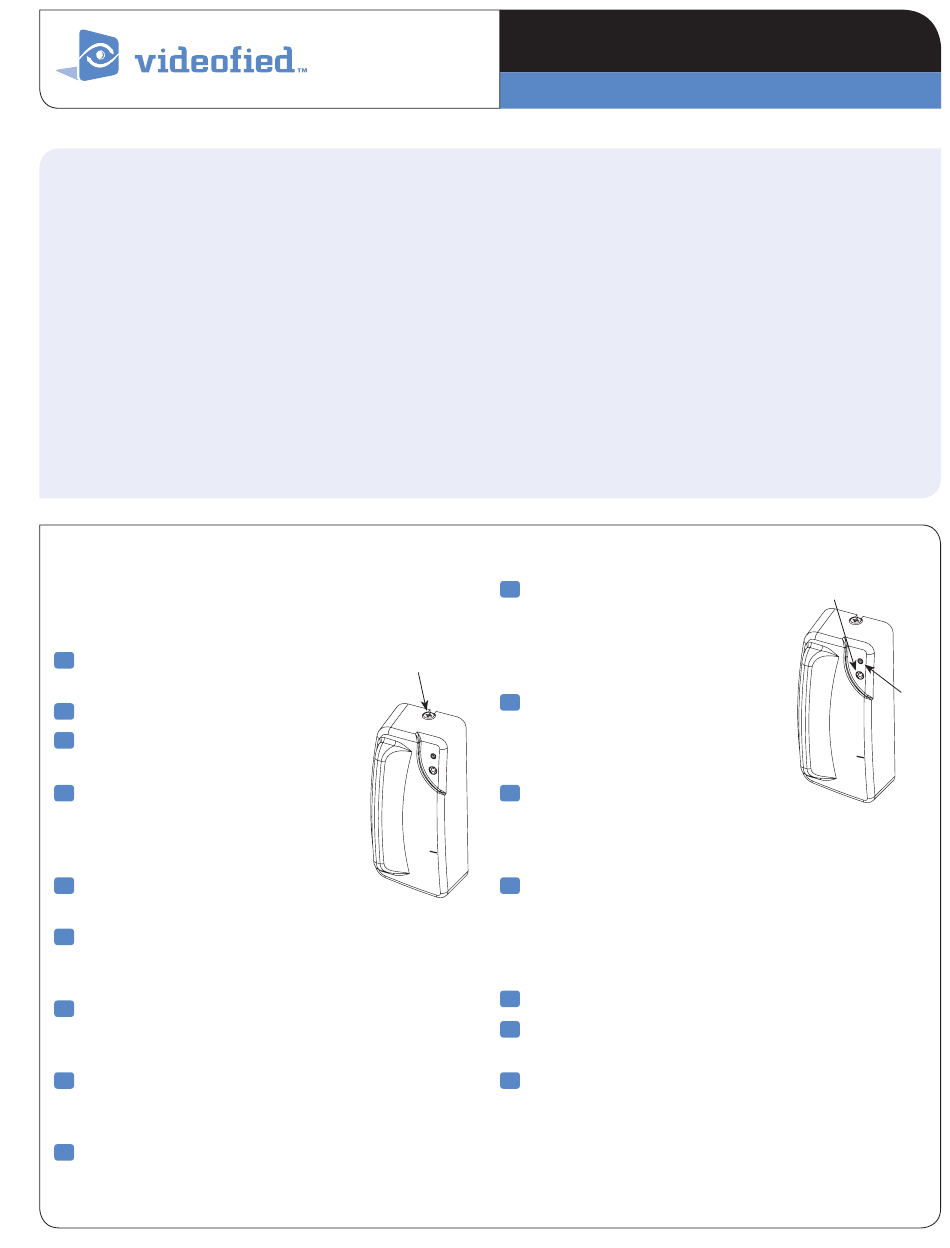

Loosen bottom screw, separate base
from detector and install battery.
2
Re-attach base to secure tamper switch.
3
Put control panel into programming/
confi guration mode.
4
Using a programmed alphanumeric
keypad, proceed through menus
until the display shows ADD A
NEW DEVICE.
5
Press Yes. The display shows
PRESS PROGRAM BUTTON OF DEVICE.
6
Press and release program button on detector using a
paper clip end. The detector LED fl ashes. Wait for keypad
display to show DETECTOR (1 - 25) RECORDED.
7
Press Yes. The display shows RADIO RANGE TEST?
Press Yes again. The detector LED starts fl ashing and
keypad display shows TEST IN PROGRESS.
8
Take detector to its intended mounting location and
make sure LED fl ashes continuously, indicating good
communication with control panel.
9
Press Yes to end radio range test, then press Esc/No.
Door Contact Models CT600/610
I N S T A L L A T I O N I N S T R U C T I O N S
Manufactured by RSIalarm
Installation Guidelines
For easier installation, programming and RF testing
should be done to check for good communication between
the control panel and all system devices before mounting
system devices. Install the detector and other system
devices in the following order:
>
Programming/RF Testing—program detector and
all other devices into the control panel and test RF
communication from each intended device location
to the control panel.
>
Mounting—mount detector at the tested location.
10
The display shows AREA
ASSIGNMENT AREA: 1. Press
either arrow button repeatedly
until desired AREA number
Screw
appears, then press Yes.
11
The display shows PROTECT AN
EXTERNAL ACCESS? Press Yes or
Esc/No, whichever is appropriate
for this device.
12
The display shows NAME + LOCATION.
Enter appropriate device name/location (up to
16 characters), then press Yes. The display shows
the device number and name for your verifi cation.
13
Press Yes. The display shows FUNCTIONAL DEVICE
TEST? Press Yes again and verify detector operation.
For example, move magnet next to detector to make
LED go out, then move magnet away from detector
to make LED turn on indicating detection.
14
Press Yes to end detection verifi cation.
15
The display shows ENTERING A NEW DEVICE?
Repeat steps 1 - 14 for remaining detectors.
16
When fi nished, exit from confi guration mode.
Document No. 1008-c November 2006
Program Button
www.videofied.com
LED
