Installation and Operation

Mounting the CVEQ 100 and SVEQ 100

The CVEQ 100 composite video line driver and the SVEQ 100
S-video line driver can be set on a table; mounted on a rack
shelf; mounted under a desk or table; mounted through
furniture (CVEQ 100 only); or mounted on the back of a rack
(SVEQ 100 only).

Tabletop use

Four self-adhesive rubber feet are included with the line driver.
For tabletop use, attach one foot at each corner of the bottom
side of the unit and place the unit in the desired location.

UL rack mounting requirements

The following Underwriters Laboratories (UL) requirements
pertain to the safe installation of the line drivers in a rack.
1. Elevated operating ambient temperature — If installed in a
closed or multi-unit rack assembly, the operating ambient
temperature of the rack environment may be greater than
room ambient temperature. Therefore, install the line
driver in an environment compatible with the maximum
ambient temperature (Tma = +113 °F, +45 °C) specified by
Extron.
2. Reduced air flow — Install the equipment in a rack so that
the amount of air flow required for safe operation of the
equipment is not compromised.
3. Mechanical loading — Mount the equipment in the rack so
that a hazardous condition is not achieved due to uneven
mechanical loading.
4. Circuit overloading — Connect the equipment to
the supply circuit and consider the effect that circuit
overloading might have on overcurrent protection and
supply wiring. Appropriate consideration of equipment
nameplate ratings should be used when addressing this
concern.
5. Reliable earthing (grounding) — Maintain reliable
grounding of rack-mounted equipment. Pay particular
attention to supply connections other than direct
connections to the branch circuit (e.g. use of power strips).
www.camboard.de
2-2 CVEQ 100 & SVEQ 100 • Installation and Operation
CAMBOARD Electronics

Rack mounting

Tel. 07131 911201
Fax 07131 911203
For rack mounting, do not install the rubber feet. Mount the
distribution amplifier on a 19" wide 1U VersaTools
(Extron RSF 123, part #60-190-20; Extron RSB, part #60-604-20), a
standard 1U Universal or Basic rack shelf (Extron RSU 129,
part #60-190-01; Extron RSB 129, part #60-604-01), or a Universal
or Basic 1U 6-inch Deep Rack Shelf (Extron RSU 126,
part #60-190-10; Extron RSB 126, part #60-604-10).
QuarterRackVersaToolsShelf
1. If feet were previously installed on the bottom of the line
driver, remove them.
2. Mount the line driver on the rack shelf, using two
4-40 x 3/16" screws in opposite (diagonal) corners to
secure the unit to the shelf.
3. Install blank panel(s) or other unit(s) on the rack shelf.
VersaTools Rack Shelf
1/4 Rack Width Front
False Faceplate
Use 2 mounting holes on
opposite corners.

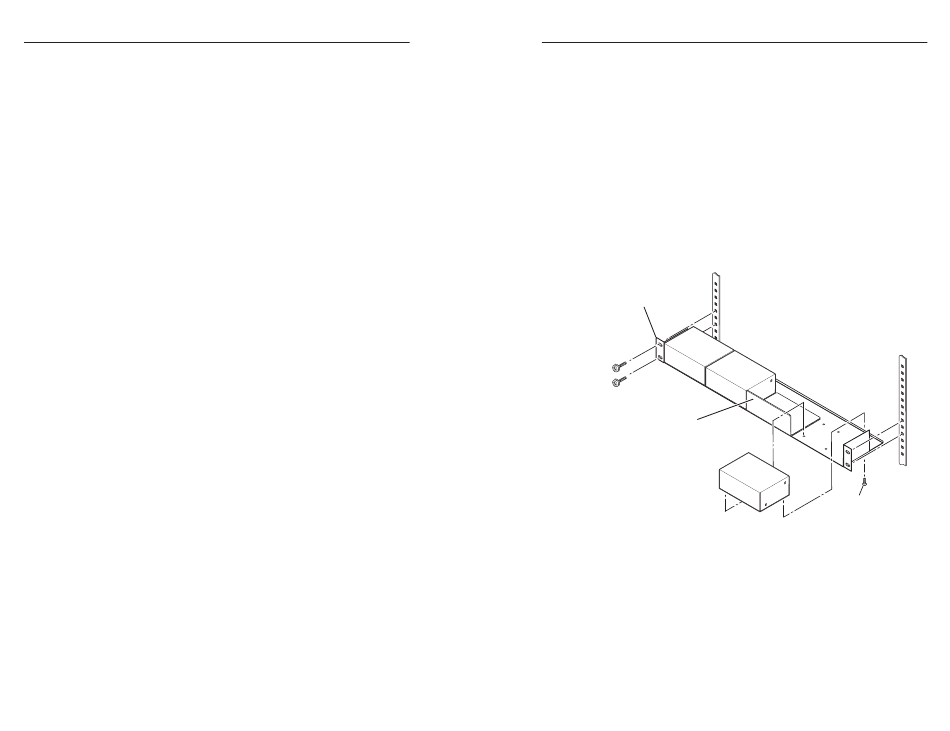

Mounting the line driver on a VersaTools rack shelf
ce-info@camboard.de
CVEQ 100 & SVEQ 100 • Installation and Operation
®
rack shelf
(2) 4-40 x 3/16"
Screws
2-3
