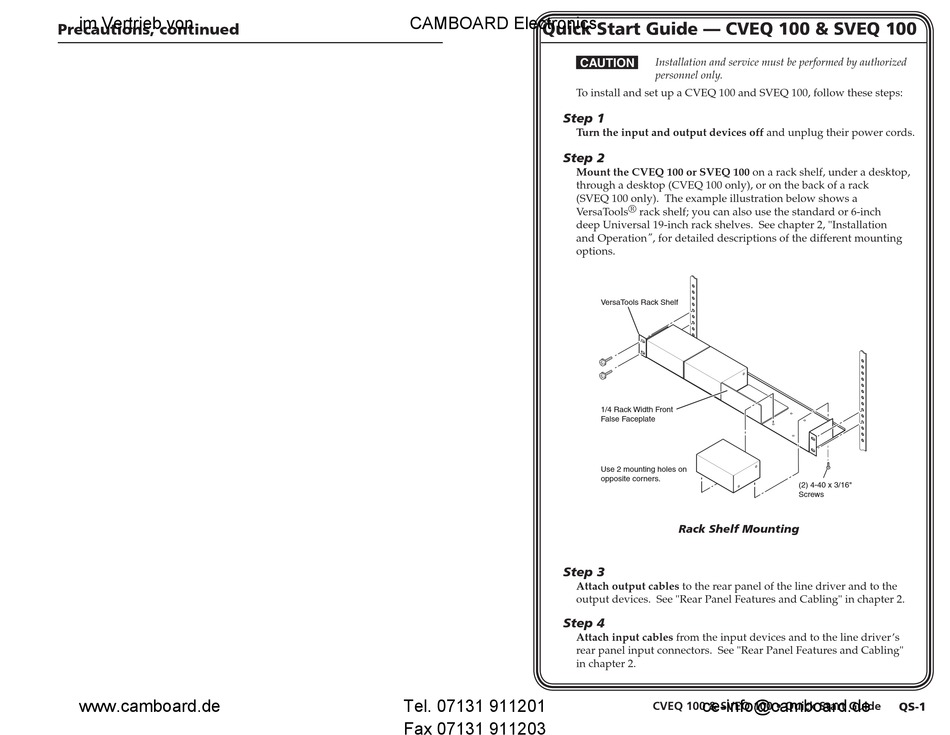

Quick Start Guide — CVEQ 100 & SVEQ 100
C
To install and set up a CVEQ 100 and SVEQ 100, follow these steps:
Step 1
Turn the input and output devices off and unplug their power cords.
Step 2
Mount the CVEQ 100 or SVEQ 100 on a rack shelf, under a desktop,
through a desktop (CVEQ 100 only), or on the back of a rack
(SVEQ 100 only). The example illustration below shows a
VersaTools ® rack shelf; you can also use the standard or 6-inch
deep Universal 19-inch rack shelves. See chapter 2, "Installation
and Operation", for detailed descriptions of the different mounting
options.
Step 3
Attach output cables to the rear panel of the line driver and to the
output devices. See "Rear Panel Features and Cabling" in chapter 2.
Step 4
Attach input cables from the input devices and to the line driver's
rear panel input connectors. See "Rear Panel Features and Cabling"
in chapter 2.
Tel. 07131 911201
Fax 07131 911203
Installation and service must be performed by authorized
personnel only.
QuarterRackVersaToolsShelf
VersaTools Rack Shelf
1/4 Rack Width Front
False Faceplate
Use 2 mounting holes on
opposite corners.
Rack Shelf Mounting
ce-info@camboard.de
CVEQ 100 & SVEQ 100 • Quick Start Guide
(2) 4-40 x 3/16"
Screws
QS-1
