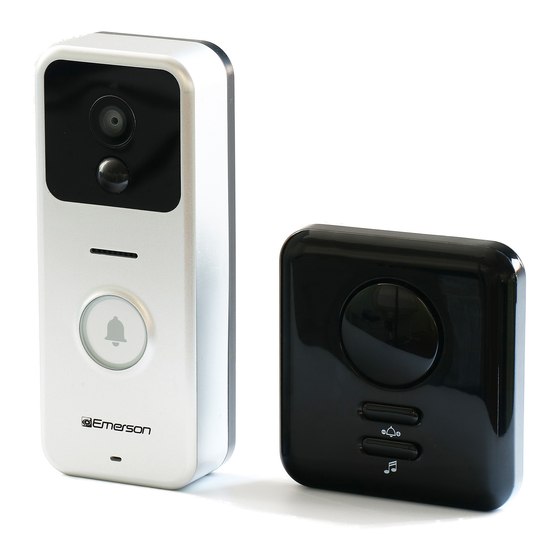

- Page 1 Wireless 720P HD Video Doorbell and Indoor Chime with Two-Way Audio, Motion-Activated Alerts and Night Vision for IOS and Android App OWNER’S MANUAL ER107001 Visit our web site at www.emersonradio.com UNAUTHORIZED MODIFICATIONS TO THIS DEVICE COULD VOID MANUFACTURER’S WARRANTY...
- Page 2 1.Open the App Store (for iPhone) or Google Play Store (for Android device). 2.Search "Emerson Doorbell" App and install. 3.Choose your country . 4.The settings of different phones may be different. You may be asked to allow different kinds of permissions during USB Charging Slot installation of the App or during video doorbell setup.
- Page 3 4. Video Doorbell Setup for iPhone 4 .Follow the in-app instructions . Press and hold the Call Button for 5 seconds and the doorbell light will start blinking. This section is for iPhone only. For Android device, please refer to section 5. 1.
- Page 4 6. Please wait until the connection to "Wifi_Doorbell_AP" is 8.Enter Wifi password and tap "OK" to proceed. successful. Then go back to Emerson Doorbell App to continue. 7. Tap "Next" and select your desired Wifi network (2.4 GHz Wifi only).
- Page 5 5. Follow the in-app instructions . Press and hold the Call Button 5. Video Doorbell Setup for Android Device for 5 seconds and the doorbell light will flash. Tap "Next". This section is for Android device only. For iPhone, please refer to section 4.
- Page 6 7. Please wait until there is pop-up for the password of device. Enter the password and tap "OK" (default password is: admin). OFF ON 4.Option 1: a. Press the Call Button once and the Wifi signal indicator wil l become steady blue. Successfully added the device WiFi Signal Indicator 8.
- Page 7 c. Select the device and enter password. Then tap "OK". Note: Default password is "admin" but it may be changed by the first user. Please check and confirm the password first. DID (uppercase and lowercase letters should match) Successfully added the device Successfully added the device...
- Page 8 2.Tap the below icons shown on device list. Device List a. Device name (Refer to point 2 to rename) b. Device ID (For information only, cannot be changed) Rename the device c. Modify password (any characters or numbers and 4-16 in Device ID(cannot be changed) length) Noted: please alert other users after change of password...
- Page 9 1. Press (3) to select ringtone 2. Press (2) to set volume 3. Chime is already paired with the doorbell. The following Enable/Disable Ringtone on phone procedures applies to new chime or additional chime only. Enable/Disable Vibration Notice on a. Press the paring button (4) under standby mode. Phone (only for Android Device) b.
- Page 10 Event History: Intercom Interface: When PIR is enabled and Micro SD card has been inserted to the device, snapshots will be saved in Micro SD card whenever ON: Talk and hear at the same time (Max. 120 seconds) motion is detected. Tap the below icon to view the snapshots. OFF: Slide the below icon to the right and hold to talk.
- Page 11 11. Specifications Doorbell Operating Frequency 433.92MHz 120m Unobstructed Effective Range WIFI Operating Frequency 2.4GHz Video Resolution 720P Operating Temperature -10℃~ +50℃/ +14℉~+122℉ Storage Temperature 20℃~ +60℃/+14℉~+140℉ ≤85%RH Operating Humidity Imaging Sensor Type CMOS When mounting the outdoor panel, about 10 ° about 7 °...
- Page 12 Trouble Shooting Guide 13. FCC Statement and Safety Warnings Error message "Set up There may be trouble connecting to FCC STATEMENT: failed" or "Initial failed, the server. Please check firewall This device complies with Part 15 of the FCC Rules. Please check whether settings or try another network.
- Page 13 To prevent fire or shock, do NOT attempt to 14. LIMITED WARRANTY power this unit if it is damp. Emerson Radio Corp. warrants this product to be free from SAFETY ADVISORY & WARNING: manufacturing defects in original material, including original Read and follow all instructions.
- Page 14 WARRANTIES, WHETHER EXPRESSED OR IMPLIED, OR OPERATING ASSISTANCE SHALL APPLY TO THE PRODUCT THEREAFTER. PLEASE CALL: EMERSON MAKES NO WARRANTY AS TO THE FITNESS 1-800-898-9020 OF THE PRODUCT FOR ANY PARTICULAR PURPOSE OR USE. THE EXTENT OF EMERSON RADIO CORP’S FOR CUSTOMER SERVICE, PLEASE E-MAIL TO: internet@emersonradio.com...
