Emerson Rosemount 0065 Quick Start Manual
Din-style sensor
Hide thumbs
Also See for Rosemount 0065:
- Quick start manual (16 pages) ,
- Quick start manual (16 pages)
Related Manuals for Emerson Rosemount 0065
Summary of Contents for Emerson Rosemount 0065

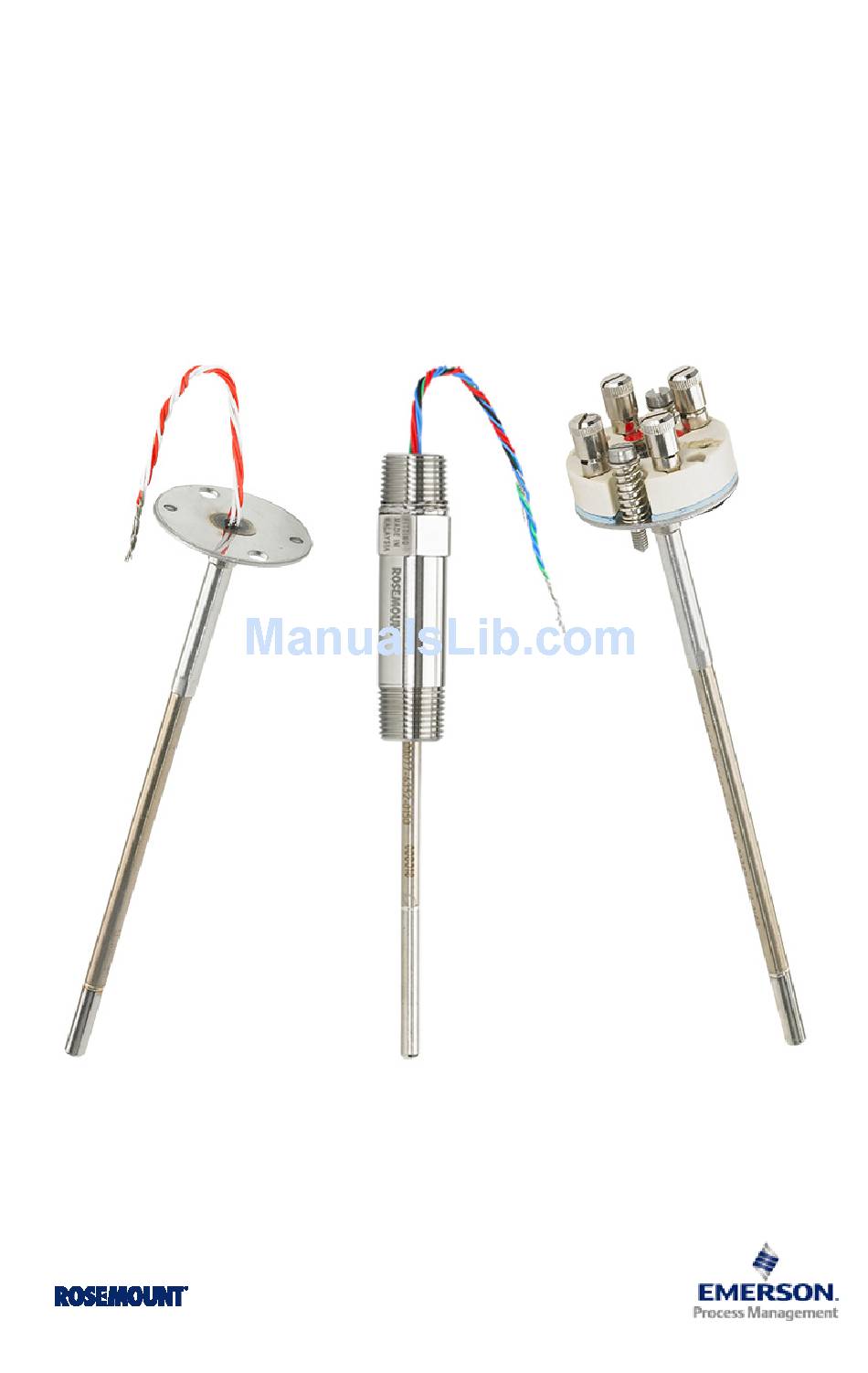

- Page 1 Quick Start Guide 00825-0200-2654, Rev BC April 2015 Rosemount 0065/0185 Sensor Assembly...
- Page 2 April 2015 Quick Start Guide NOTICE This guide provides basic guidelines for Rosemount 0065 and 0185 Sensor models. It does not provide instructions for configuration, diagnostics, maintenance, service, troubleshooting, Explosion-proof, Flameproof, or intrinsically safe (I.S.) installations. If the Rosemount 0065 or 0185 Sensor was ordered assembled to a Rosemount temperature transmitter, see the appropriate Quick Start Guide for information on configuration and hazardous locations certifications.
-
Page 3: Wiring Diagrams
Quick Start Guide April 2015 Wiring Diagrams Figure 1. Series 65 RTD Lead Wire Configuration Series 65 RTD flying leads and spring-loaded adapter-termination codes 0, 1, or 3 only Single element Dual element White White Black Blue Blue Green Series 65 RTD terminal block termination code 2 and 4 Single element Dual element White... - Page 4 April 2015 Quick Start Guide Figure 2. Series 185 Thermocouple Lead Wire Configuration Series 185 RTD thermocouple terminal block Single element Dual element 3(+) 3(+) 1(-) 1 (-) 6(-) 4(+) Table 1. Series 185 Thermocouple Characteristics Limits of error Alloys Tolerance Type Sheath material...
- Page 5 Quick Start Guide April 2015 Sensor Assembly Dimensions Sensor assembly without thermowell 644 with LCD meter Head or field mount transmitters 3144 IP68 or IP65 connection heads 25 mm 40 mm Sensor with flying leads, terminal block, or 11 mm spring-loaded adapter 16 mm ★★...
- Page 6 April 2015 Quick Start Guide Tubular thermowell sensor assembly 644 with LCD meter Head or field mount transmitters IP68 or IP65, connection heads 40 mm 25 mm Sensor with flying leads or terminal block ★★ Threaded and flanged ★★ ★★ tubular thermowells ★★...
- Page 7 Quick Start Guide April 2015 Barstock thermowell sensor assembly 644 with LCD meter Head or field mount transmitters 3144 IP 68 or IP 65 connection heads 25 mm 40 mm Sensor with flying leads, 11 mm terminal block, or spring-loaded adapter 16 mm 11 mm Stand-alone...
- Page 8 April 2015 Quick Start Guide Product Certifications European Directive information A copy of the EC Declaration of Conformity can be found at the end of the Quick Start Guide. The most recent revision of the EC Declaration of Conformity can be found at www.emersonprocess.com.
- Page 9 Quick Start Guide April 2015 I1 ATEX Intrinsic Safety Certificate: IBExU03ATEX1066X Standards Used: EN 60079-0:2012, EN 6079-11:2012, EN 60079-26:2007 Markings: II 1 G Ex ia IIC T6; II 1/2 G Ex ia IIC T6; II 2 G Ex ia IIC T6; 1180 Special Conditions for Safe Use (X): 1.
- Page 10 April 2015 Quick Start Guide 5. A suitable certified Ex d or Ex tb enclosure is required to be connected to temperature probes with Enclosure option "N". 6. Care shall be taken by the end user to ensure that the external surface temperature on the equipment and the neck of DIN Style Sensor probe does not exceed 130 °C.
- Page 11 Quick Start Guide April 2015 Figure 3. Rosemount 0065 Sensor Assembly Declaration of Conformity...
- Page 12 April 2015 Quick Start Guide...
- Page 13 Quick Start Guide April 2015...
- Page 14 Emerson FZE P.O. Box 17033, www.rosemount.com\terms_of_sale. Jebel Ali Free Zone - South 2 The Emerson logo is a trademark and service mark of Emerson Electric Co. Dubai, United Arab Emirates Rosemount and Rosemount logotype are registered trademarks of +971 4 8118100 Rosemount Inc.
