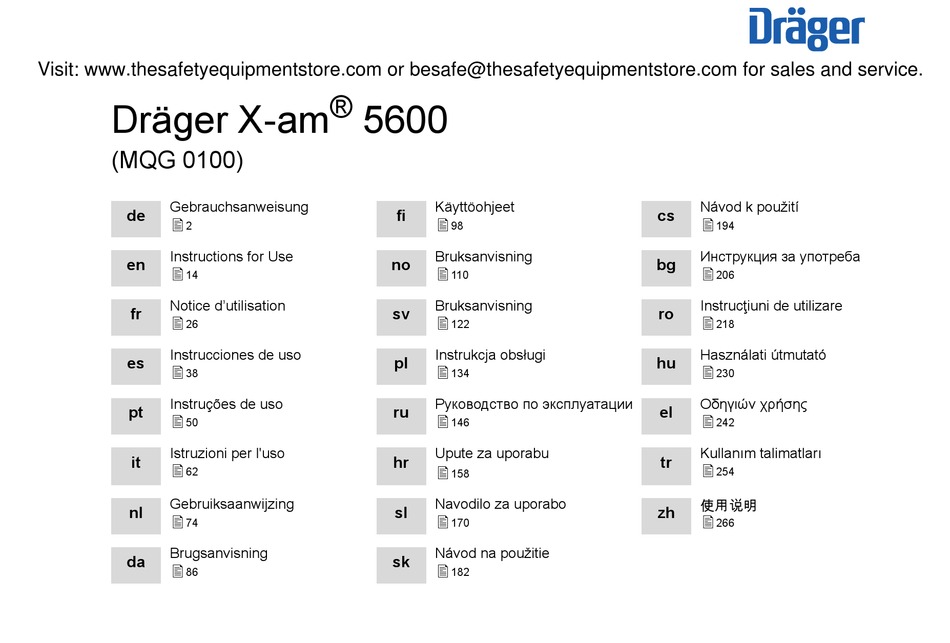

- Page 1 Visit: www.thesafetyequipmentstore.com or besafe@thesafetyequipmentstore.com for sales and service. ® Dräger X-am 5600 (MQG 0100) Gebrauchsanweisung Käyttöohjeet Návod k použití Instructions for Use Bruksanvisning Инструкция за употреба Notice d’utilisation Bruksanvisning Instrucţiuni de utilizare ...
- Page 2 The Technical Handbook and Instructions for Use/data sheets for the sensors used and the PC software CC-Vision for Dräger X-am 5600 are available on the product page of the X-am 5600 at the following Internet address: www.draeger.com.
- Page 3 S and the Vol% XXS CO as well as by the negative affect with XXS O X-am 5600 WARNING Only use power packs ABT 0100 (83 22 237), HBT 0000 (83 18 704) or HBT 0100 (83 22 244). See marking on power pack for approved batteries and related temperature class.
- Page 4 83 22 244) (see “Replacing the batteries / rechargeable batteries” on perform the configuration. page 19). Changing the configuration: see the Technical Handbook. – The Dräger X-am 5600 is ready for operation. Standard instrument configuration: Operation Dräger X-am 5600 Switching on the instrument Bump Test Mode...
- Page 5 WARNING When using an IR Sensor in the Dräger X-am 5600, the zero point and sensitivity must be adjusted after an impact load that causes a display other than zero for the IR sensor when the instrument is at fresh air.
- Page 6 STEL / TWA exposure alarm Special symbol » « displayed on the right side of the display: – The instrument is not ready for operation. The alarm is indicated by an intermittent alarm Commission maintenance personnel or the Dräger Service to eliminate the message: error.
- Page 7 Danger of explosion! range is left, the charging is automatically interrupted and automatically The Dräger X-am 5600 must only be operated with battery holder ABT 0100 continued after the temperature range has been reached again. The charging (X-am 5600), identified with a silver sticker.
- Page 8 Carrying out the bump test Adjustment Adjustment may not be possible due to instrument and channel errors. NOTICE NOTICE In the case of a manual function test the effect of the H added signal must be taken into account accordingly. A potentially activated H added signal is automatically temporarily deactivated during a manual calibration, a PC calibration or an automatic Bump Test for the...
- Page 9 Adjusting the sensitivity for an individual NOTICE measuring channel In the case of the CO channel there is a 2-stage calibration routine: The zero point adjustment takes place first and is then followed by the span NOTICE adjustment. A potentially activated H offsetting is automatically temporarily deactivated during a manual adjustment, a PC calibration or an automatic Bump Test for –...
- Page 10 Care Disposing of the instrument Dispose of the product in accordance with the applicable rules and regulations. The instrument does not need any special care. Dirt and deposits can be removed from the instrument by washing it with WEEE cold water.
- Page 11 (see“Notes on Approval” on page 279) The Technical Handbook and Instructions for Use/data sheets for the sensors used and the PC software CC-Vision for Dräger X-am 5600 are available on the product page of the X-am 5600 at the following Internet address: www.draeger.com.
- Page 12 The Technical Handbook and Instructions for Use/data sheets for the sensors used and the PC software CC-Vision for Dräger X-am 5600 are available on the product page of the X-am 5600 at the following Internet address: www.draeger.com. See also attached Instructions for Use and Data Sheets of the sensors used.
- Page 13 DrägerSensor XXS CO DUAL IR CO DUAL IR Ex IR CO IR Ex Measuring principle electrochemical infrared infrared ≤ 25 seconds ≤ 31 seconds Meauserement value configuration time t 0...90 ≤ 20 seconds for methane ≤ 40 seconds for propane ≤...
- Page 14 Sensor Dräger XXS CO DUAL IR CO DUAL IR Ex IR CO IR Ex Principio de medición electroquímico infrarrojos infrarrojos ≤ 25 segundos ≤ 31 segundos Tiempo de ajuste de valor de medición t 0...90 ≤ 20 segundos para metano ≤...
- Page 16 Notes on Approval Battery Pack Type ABT 0100 Temperature Class T4 –20 °C ≤ Ta ≤ +50 °C Marking if used with alkaline batteries Duracell Procell MN1500 Temperature Class T3 –20 °C ≤ Ta ≤ +40 °C if used with NiMH batteries GP 180AAHC (1800 mAh) or alkaline batteries...
- Page 17 Visit: www.thesafetyequipmentstore.com or besafe@thesafetyequipmentstore.com for sales and service. Dräger Safety AG & Co. KGaA Revalstraße 1 D-23560 Lübeck Germany Phone +49 451 8 82- 0 +49 451 8 82- 20 80 www.draeger.com 90 33 069 - GA 4638.220 MUL077 © Dräger Safety AG & Co. KGaA Edition 07 - October 2012 (Edition 01 - September 2009) Subject to alteration...
