Summary of Contents for Dräger MQG 02 0 Series

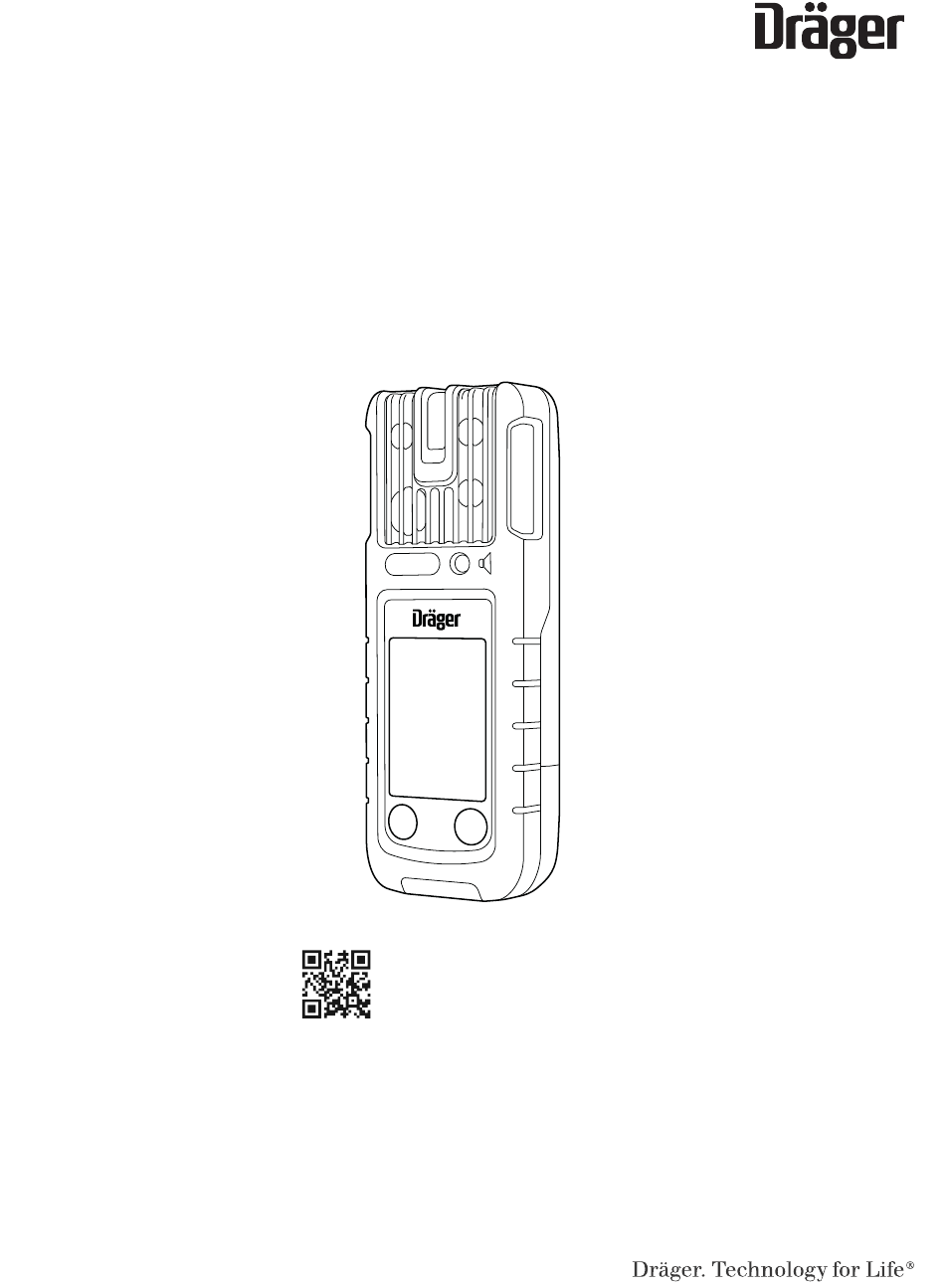

- Page 1 Technical manual ® ® X-am 2800 / X-am 5800 MQG 02*0 More languages available for download at draeger.com/ifu...
-
Page 2: Table Of Contents
Contents Contents ® ® X-am MQG 02*0 2800 / X-am 5800 Safety-related information............... Basic safety information..............Use in areas subject to explosion hazards ........Conventions in this document ..............Meaning of the warning notes............Trade marks..................Glossary..................Abbreviations .................. Description....................Product overview ................ - Page 3 Contents Calibration intervals ................ Test gases ..................Performing the bump test ............... Perform a bump test with the Bump Test Station ......Check response time (t90).............. Calibrating the gas detector............6.7.1 Notes on calibration............6.7.2 Performing a fresh air calibration........6.7.3 Carrying out a single-gas calibration ........
-
Page 4: Safety-Related Information
Safety-related information Safety-related information The calibration certificate can be downloaded from https://www.draeger.com/productioncertificates. The manufacturer's certificate can be requested from Dräger. Basic safety information – Before using the product, carefully read through these instructions for use, the instructions for use provided with the associated products and the general instructions for use for sensors (9023657). - Page 5 Safety-related information Oxygen enriched atmospheres Explosion protection is not ensured in oxygen enriched atmospheres (>21 Vol% ► Remove the device from the explosion-hazard area. Oxygen deficient atmospheres The CatEx sensor may display false readings and incorrect measured values when used for measurements in an oxygen deficient atmosphere (<12 Vol% O ).
-
Page 6: Conventions In This Document
Conventions in this document Conventions in this document Meaning of the warning notes The following warning notes are used in this document to notify users of possible dangers. The meanings of the warning notes are defined as follows: Alert icon Signal word Consequences in case of nonob- servance... -
Page 7: Abbreviations
Description Term Description D-Light The D-Light feature allows the user to check and indicate compliance with certain settings. Physical sensors The CatEx, IR, and PID sensor types are designated as physical sensors. There are also the electrochemical sensors. Abbreviations Abbreviation Explanation Pre-alarm Main alarm... -
Page 8: Intended Use
Description Graphic A Alarm LED Fastening clip 2a D-Light 10 Name plate Horn 11 Charging contacts 12 Measured gas display Power pack 13 Measuring value display 14 Special symbols Display 15 Allen key (2 mm; alternative: Torx T8) Marking added-signal channels (X-am 5800 only): Feature Shown in display Toxic Twins... -
Page 9: Operation
Operation Operation Symbol explanations Symbol Explanation Bump test Fresh air calibration Single-gas calibration Mixed gas calibration Measurement range exceeded Readings below the measurement range Peak value Protection alarm (only CatEx sensor) Channel error Compliance with bump test interval. Warning message The gas detector can be operated normally. -
Page 10: Visual Life Signal And D-Light
Operation 4.2.2 Visual life signal and D-Light The visual life signal can be extended by the D-Light feature with activated interval check. An activated D-Light feature allows the user to also check and indicate compliance with certain settings. The D-Light feature can be activated using the Dräger CC-Vision PC software. Visual life signal with deactivated D-Light: The green LED flashing periodically (every 5 s) indicates: –... -
Page 11: Switching Off The Gas Detector
Operation 1. Hold down the button for approx. 3 s. The display shows the following screens one after the other. Countdown The switch-on sequence and the warm-up phase of the sensors start. Display test Start screen ... -
Page 12: Connecting A Gas Detector To A Smartphone
Operation 1. Switch on the gas detector. The current measured values are shown in the display. 2. Observe warnings, error messages and special states. 3. Verify that the gas inlet openings and membranes are clean, freely accessible, dry and undamaged. 4. -
Page 13: During Operation
Operation 4. Select the gas detector on the smartphone: ® a. Short name of the gas detector in the Android/iOS Bluetooth menu. b. Part number and serial number in optional Dräger app. A 6-digit number is displayed on the smartphone and on the gas detector. 5. -
Page 14: Measuring Mode
Operation CAUTION The volume of the horn is reduced! If water gets into the opening on the horn (e.g. by immersing the gas detector in water or due to heavy rain), the volume of the horn can be significantly reduced. ►... -
Page 15: Alarms
Operation 4.6.2 Alarms In the event of an alarm, corresponding displays, the visual alarm, vibration alarm as well as the audible alarm are activated. For further information, see the following chapter: "Alarm settings (factory setting)", page 48 To acknowledge an alarm: 1. -
Page 16: Panic Alarm
Operation 4.6.6 Panic alarm A panic alarm can be triggered in order to request assistance in an emergency and if there is a danger to persons or property. If there is an active Bluetooth connection to Dräger Gas Detection Connect, a panic alarm can be forwarded and assistance requested in this way. -
Page 17: Opening Channel Information When The Device Is Switched Off
Troubleshooting 1. Press 3x in measuring mode. Device information is displayed. 2. Press to scroll through the available device information. 4.8.2 Opening channel information when the device is switched off 1. Press for at least 1 s when the device is switched off. ... -
Page 18: Error
Troubleshooting Error The sensor technology that can be used depends on the device type. The first digit of the code represents the sensor channel: Code Sensor channel Code Sensor channel DrägerSensor CatEx SR Code Cause Remedy Customer’s period of use counter Reset period of use counter with has expired. - Page 19 Troubleshooting Code Cause Remedy Motionless detector faulty Switch the gas detector off and then on again; replace the sensor. Self-test failed Contact DrägerService. Vibration motor defective. Contact DrägerService. Ambient pressure too low. Operate gas detector within per- mitted ambient pressure range. DB version invalid for this firm- Repeat the software update or ware.
-
Page 20: Warnings
Troubleshooting Code Cause Remedy Error in the compensation chan- Switch the gas detector off and nel. then on again; replace the sensor. Error in a connected channel. Switch the gas detector off and then on again; replace the sensor. Condensation on sensor Acclimatise the gas detector. - Page 21 Troubleshooting Code Cause Remedy Error sent from Bluetooth control. Switch the gas detector off and then on again / Contact Dräger- Service. Bluetooth connection interrupted. Reconnect the device. Subsystem software version too Carry out a software update. old. Device temperature too high. Operate gas detector within per- mitted temperature range.
-
Page 22: Instructions
Maintenance Instructions Code Cause Wait for fresh air. No sensor selected for this feature. Maintenance WARNING Risk of explosion! To reduce the risk of ignition of a flammable or explosive atmosphere, observe the following: ► Do not open the gas detector in explosion-hazard areas. WARNING Danger to health! Test gas may damage health if inhaled. -
Page 23: Calibration Intervals
Maintenance Calibration intervals ® Observe the relevant specifications in the DrägerSensor & Gas Detectors Manual and in the instructions for use/data sheets of the Dräger sensors installed. Recommended calibration intervals for DrägerSensors: Calibration interval ® DrägerSensor CatEx SR, XXS O , XXS H S LC, XXS Every 6 months... - Page 24 Maintenance The Dräger CC-Vision PC software can be used to configure whether a quick or advanced bump test should be performed with the menu or in the bump test station. Dräger recommends using the extended bump test for cross calibrations (see the Dräger X-dock instructions for use).
-
Page 25: Perform A Bump Test With The Bump Test Station
Maintenance 5. Wait until the detector displays the test gas concentration with sufficient tolerance. (The evaluation is carried out during the advanced bump test by the gas detector.) Ex: ±20 % of the test gas concentration IR Ex: ±20 % of the test gas concentration (X-am 5800 only) ... -
Page 26: Check Response Time (T90)
Maintenance 1. Prepare the Bump Test Station in accordance with the instructions provided in the quick reference guide on the Bump Test Station. 2. Insert the switched-on gas detector into the Bump Test Station and press it down until it locks into place. 3. -
Page 27: Performing A Fresh Air Calibration
Maintenance X-am 5800: An active H added signal will be automatically deactivated temporarily for the duration of a manual calibration, a PC calibration or an automatic bump test. 6.7.2 Performing a fresh air calibration Observe the following instructions for fresh air calibration: ●... -
Page 28: Carrying Out A Single-Gas Calibration
Maintenance 5. The fresh air calibration is complete when all participating measurement channels have passed or failed the fresh air calibration. ● Select to confirm the result. ● Select and then confirm the dialogue to discard the result. ● Select to return to the results. -
Page 29: Carrying Out A Mixed Gas Calibration
Maintenance 5. Enter and confirm the password. 6. Select and confirm single-gas calibration . The first measuring channel is displayed and the measured gas flashes. 7. Use to select the desired measuring channel. 8. Press to start the single-gas calibration for the selected measuring channel. ... -
Page 30: Charging The Battery
Maintenance WARNING Health hazard from test gas Breathing in of test gas can be harmful to health or lead to death. ► Do not inhale the test gas. ► Observe risks connected with the test gas, hazards notes and safety advice (see for example safety data sheets, instructions on the testing media). -
Page 31: Charge The Battery With The Multicharger
Maintenance The buffer battery can be replaced if necessary. WARNING Risk of explosion To reduce the risk of ignition of a flammable or potentially explosive atmosphere, observe the following: ► Do not charge or replace the battery in potentially explosive atmospheres or in explosion-hazard areas. - Page 32 Maintenance NOTICE Damage to charging modules If several charging modules are disconnected at the same time, care must be taken as otherwise the projecting tongue may break. ► Always connect or disconnect the charging modules individually and not in groups. 1.
-
Page 33: Replacing The Battery
Maintenance 6.10 Replacing the battery WARNING Risk of explosion To reduce the risk of ignition of a flammable or potentially explosive atmosphere, observe the following: ► Do not open the gas detector in explosion-hazard areas. ► Only the battery types specified in the technical data must be used. ►... - Page 34 Maintenance Designation and description Order no. Sensor damper set: 3703865 1x CatEx SR, XD-IR sensor damper Sensor damper set: 3703864 1x PID HC neo sensor damper Exchange the sensors using the Dräger CC-Vision PC program (refer to the Dräger CC-Vision online help). This tests the sensor compatibility and the respective gasses.
- Page 35 Maintenance b. Loosen 4 screws and carefully remove the front housing cradle. 5. Exchanging the EC sensors: a. Place the special tool on the trough. Using the special tool, carefully lift out the EC sensor in question. Do not bend the sensor pins. b.
- Page 36 Maintenance NOTICE Damage to the flexstrip If the flexstrip is excessively bent or twisted, it may become irreparably damaged. ► Do not allow the flexstrip to become excessively bent or twisted. a. Open the sensor damper. b. Carefully remove the flexstrip from the printed circuit board and pull out the sensor using a dull instrument (manually using the removal aid (IR) or with a dull instrument, e.g.
- Page 37 Maintenance c. Have the sensor type and code (marked on the new sensor) as well as the sensor position at hand for the new sensor inauguration. d. Carefully insert the new sensor. e. Carefully plug the flexstrip into the bushing on the options board. f.
-
Page 38: Cleaning The Pid Lamp (X-Am 5800 Only)
Maintenance 6.12 Cleaning the PID lamp (X-am 5800 only) III. During calibration of the PID, the gas detector identifies when there is dirt on the lamp and displays a corresponding warning. If this warning is displayed, the lamp window must be cleaned. Silicone-free disposable nitrile gloves and the DrägerSensor PID cleaning set (order no. -
Page 39: Exchange The Device Components
Maintenance 7. Put the UV lamp back in. Make sure that the metal surfaces (D) of the lamp are aligned so that they come into contact with the spring contacts in the sensor housing (VI). Apply gentle pressure to the lamp window to push the UV lamp into the opening, making sure not to scratch it or get dirt on it. -
Page 40: Rfid Transponder (Optional)
Maintenance Procedure: 1. Switch off the gas detector. 2. Loosen the screw and remove the power pack. NOTICE Damage to the display When lifting out the front housing cradle, it can happen (in rare cases) that the display remains caught in the front housing cradle and becomes damaged as a result. -
Page 41: Horn Resonator
Maintenance 1. Carefully remove the old RFID transponder (1) from the housing. 2. Remove the foil from the adhesive tape of the new transponder. 3. Insert the new RFID transponder (1) into the left upper corner of the lower part of the housing and press into place. -
Page 42: Cleaning
Configuration 6.14 Cleaning The gas detector does not require any special care. If it is heavily soiled, wash off the gas detector with cold water, using a sponge if necessary. Dry the gas detector with a cloth. NOTICE Damage to the gas detector! Harsh cleaning utensils (e.g. -
Page 43: Standard Gas Configuration For X-Am 5800
Configuration 2) Only available to order as an option in the modular variant 3703900. Standard gas configuration for X-am 5800 Different settings can be selected to meet customer requirements on delivery. The current setting can be checked and changed with the Dräger CC-Vision PC software. -
Page 44: Configuring The Gas Detector
Configuration Measuring Alarm A1 Alarm A2 DrägerSensor range - threshold - threshold XXS NO LC [ppm] 0 to 50 XXS SO [ppm] 0 to 100 XXS PH [ppm] 0 to 20 XXS PH HC [ppm] 0 to 2,000 XXS HCN [ppm] 0 to 50 XXS HCN PC [ppm] 0 to 50... -
Page 45: Device Settings
Device settings Procedure: 1. Plug the DIRA dongle mount with the dongle into the socket for the calibration adapter. 2. Insert the switched-on gas detector into the calibration adapter and press it down until it locks into place. 3. Connect the DIRA USB cable to the PC. 7.3.1.2 Configuring the gas detector with the Dräger CC-Vision PC software and reading the data memory... -
Page 46: Device And Sensor Settings
Device settings Feature Setting Fresh air calibration without password Bump test without password Hydrogen added signal Life signal (acoustic) Automatic distress signal ® Bluetooth Switch off is allowed Capture range LEL factor 4.4 Vol% (corresponds to 100 %LEL) (methane) 4.0 Vol% (corresponds to 100 %LEL) (hydrogen) 1.7 Vol% (corresponds to 100 %LEL) (propane) - Page 47 Device settings Name: Area / setting 60 - 1440 (in minutes; setting for expo- Shift length (TWA) sure alarm) Automatic distress signal Pre-alarm 1-600 s Period for triggering Additional main alarm 1-600 s. Sensor settings: A1 alarm: Latching On / Off Acknowledgeable On / Off A2 alarm:...
-
Page 48: Alarm Settings (Factory Setting)
Storage Alarm settings (factory setting) Definition: Pre-acknowledgement: If, during the alarm condition, the acknowledgement is actuated (by pressing the OK button), the audible alarm and the vibration are switched off. The alarm is only fully reset (LED and display) once the alarm condition no longer exists. -
Page 49: Disposal
Disposal Disposal This product must not be disposed of as household waste. This is indicated by the adjacent symbol. You can return this product to Dräger free of charge. For information please contact the national marketing organizations or Dräger. Batteries must not be disposed of as household waste. They are therefore marked with the adjacent symbol. -
Page 50: Dimensions
Technical data 1) The minimum permissible ambient temperature is reduced to -20 °C when the gas detector is equipped with a PID sensor. 2) Tested with power pack HBT 0010 (order no. 3703887) 3) The parameters are complied with when using the battery charger specified by Dräger. Operating time for X-am 2800 under normal conditions (diffusion mode) with CatEx and 3 EC sensors Typically 12 h... -
Page 51: Dimensions For Vehicle Mount
Technical data 11.3 Dimensions for vehicle mount ® ® Technical manual X-am 2800 / X-am 5800... - Page 52 Manufacturer Dräger Safety AG & Co. KGaA Revalstraße 1 D-23560 Lübeck Germany +49 451 8 82-0 9300310 – 4638.280 en © Dräger Safety AG & Co. KGaA Edition: 6 – 2024-03 (Edition: 1 – 2021-10) Subject to alterations www.draeger.com ...
