Supermicro SUPERSERVER 5014C-T 5014C-T User Manual

Supermicro SUPERSERVER 5014C-T 5014C-T User Manual

Super micro computer user's manual
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
S
®
UPER
S
S
5014C-T
UPER
ERVER
USER'S MANUAL
Revision 1.0b

Advertisement

Table of Contents
loading

Related Manuals for Supermicro SUPERSERVER 5014C-T 5014C-T

Summary of Contents for Supermicro SUPERSERVER 5014C-T 5014C-T

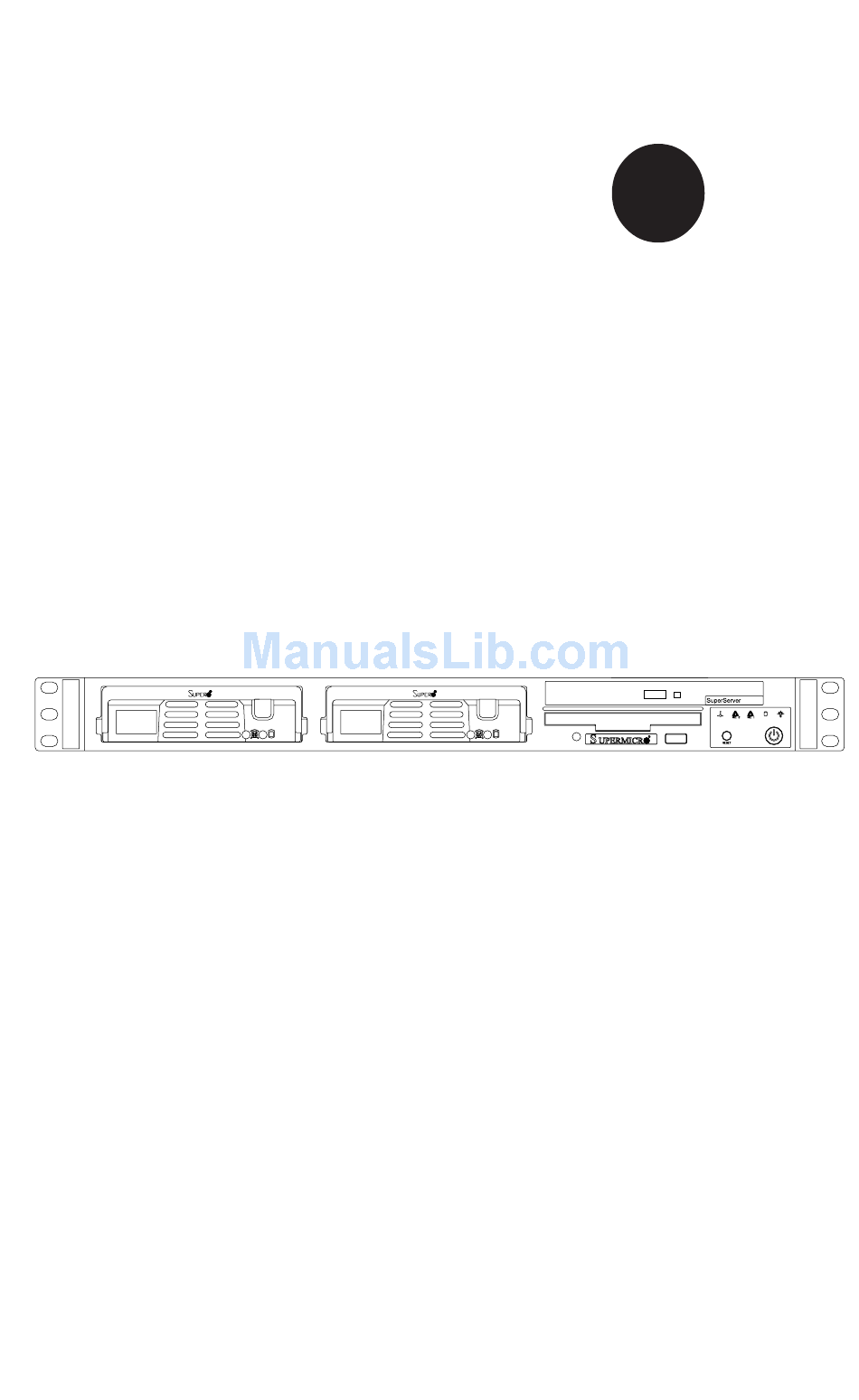

  • Page 1 ® UPER 5014C-T UPER ERVER USER’S MANUAL Revision 1.0b...
  • Page 2 Supermicro's total liability for all claims will not exceed the price paid for the hardware product. Unless you request and receive written permission from SUPER MICRO COMPUTER, you may not copy any part of this document. Information in this document is subject to change without notice. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.

  • Page 3: Preface

    About This Manual This manual is written for professional system integrators and PC techni- cians. It provides information for the installation and use of the Super- Server 5014C-T. Installation and maintainance should be performed by ex- perienced technicians only. The SuperServer 5014C-T is a high-end single processor 1U rackmount server based on the SC811T-260 server chassis and the Super P8SCi motherboard.
  • Page 4 UPER ERVER 5014C-T User's Manual Chapter 4: System Safety You should thoroughly familiarize yourself with this chapter for a general overview of safety precautions that should be followed when installing and servicing the SuperServer 5014C-T. Chapter 5: Advanced Motherboard Setup Chapter 5 provides detailed information on the P8SCi motherboard, including the locations and functions of connectors, headers and jumpers.
  • Page 5 Preface Notes...

  • Page 6: Table Of Contents

    UPER ERVER 5014C-T User's Manual Preface About This Manual ... iii Manual Organization ... iii Chapter 1: Introduction Overview ... 1-1 Motherboard Features ... 1-2 Server Chassis Features ... 1-5 Contacting Supermicro ... 1-7 Chapter 2: Server Installation Overview ... 2-1 Unpacking the System ...
  • Page 7 ESD Precautions ... 4-3 Operating Precautions ... 4-4 Chapter 5: Advanced Motherboard Setup Handling the Motherboard ... 5-1 Motherboard Installation ... 5-2 Connecting Cables ... 5-3 Connecting Data Cables ... 5-3 Connecting Power Cables ... 5-3 Connecting the Control Panel ... 5-3 I/O Ports ...
  • Page 8 UPER ERVER 5014C-T User's Manual CMOS Clear ... 5-17 USB Wake-Up ... 5-18 Watch Dog Enable/Disable ... 5-18 Speaker Jumper ... 5-18 Keyboard Wake-Up ... 5-19 JLAN1 Enable/Disable ... 5-19 JLAN2 Enable/Disable ... 5-19 Power Force On Enable/Disable ... 5-19 5-11 Parallel Port/Floppy and Hard Drive Connections ...

  • Page 9: Chapter 1: Introduction

    Overview The Supermicro SuperServer 5014C-T is a high-end single processor, 1U rackmount server with state-of-the-art features. The 5014C-T is comprised of two main subsystems: the SC811T-260 1U chassis and the P8SCi motherboard. Please refer to our web site for information on operating systems that have been certified for use with the 5014C-T.

  • Page 10: Motherboard Features

    UPER ERVER 5014C-T User's Manual Motherboard Features At the heart of the SuperServer 5014C-T lies the P8SCi, a single processor motherboard based upon Intel's E7221 chipset. tures of the P8SCi. Processor The P8SCi has an LGA775 ZIF socket to support a single Intel ("Prescott"...
  • Page 11 Onboard Controllers/Ports An onboard IDE controller supports one floppy drive and up to four Ultra ATA 100 hard drives or ATAPI devices. clude one COM port, one parallel port, two USB ports, PS/2 mouse and keyboard ports and two Gigabit LAN (NIC) ports. Other Features Other onboard features that promote system health include voltage moni- tors, a chassis intrusion header, auto-switching voltage regulators, chassis...
  • Page 12 UPER ERVER 5014C-T User's Manual Figure 1-1 . Intel E7221 Chipset: System Block Diagram Note: This is a general block diagram. Please see Chapter 5 for details.

  • Page 13: Server Chassis Features

    Server Chassis Features The SuperServer 5014C-T is built on the SC811T-260 1U rackmount server chassis. The following is a general outline of the main features of the SC811T-260 chassis. System Power When configured as a SuperServer 5014C-T, the SC811T-260 chassis in- cludes a single 260W power supply.
  • Page 14 UPER ERVER 5014C-T User's Manual Figure 1-2. Rear I/O Panel...

  • Page 15: Contacting Supermicro

    Contacting Supermicro Headquarters Address: SuperMicro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: SuperMicro Computer B.V. Het Sterrenbeeld 28, 5215 ML 's-Hertogenbosch, The Netherlands Tel: +31 (0) 73-6400390...
  • Page 16 UPER ERVER 5014C-T User's Manual Notes...

  • Page 17: Chapter 2: Server Installation

    2-1 Overview This chapter provides a quick setup checklist to get your SuperServer 5014C-T up and running. enable you to have the system operational within a minimal amount of time. This quick setup assumes that your 5014C-T system has come to you with the processor and memory preinstalled.

  • Page 18: Choosing A Setup Location

    UPER ERVER 5014C-T User's Manual Choosing a Setup Location - Leave enough clearance in front of the rack to enable you to open the front door completely (~25 inches). - Leave approximately 30 inches of clearance in the back of the rack to allow for sufficient airflow and ease in servicing.

  • Page 19: Rack Mounting Considerations

    Chapter 2: Server Installation Rack Mounting Considerations Ambient Operating Temperature If installed in a closed or multi-unit rack assembly, the ambient operating temperature of the rack environment may be greater than the ambient temperature of the room. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer’s maximum rated ambient temperature (Tmra).

  • Page 20: Installing The System Into A Rack

    UPER ERVER 5014C-T User's Manual Installing the System into a Rack This section provides information on installing the SuperServer 5014C-T into a rack unit. If the system has already been mounted into a rack, you can skip ahead to Sections 2-5 and 2-6. There are a variety of rack units on the market, which may mean the assembly procedure will differ slightly.
  • Page 21 Chapter 2: Server Installation Installing the Chassis Rails Position the fixed chassis rail sections you just removed along the side of the chassis making sure the five screw holes line up. Note that these two rails are left/right specific. Screw the rail securely to the side of the chassis (see Figure 2-2).
  • Page 22 UPER ERVER 5014C-T User's Manual other assembly to the other side of the rack, making sure that both are at the exact same height and with the rail guides facing inward. Installing the Server into the Rack You should now have rails attached to both the chassis and the rack unit.
  • Page 23 Chapter 2: Server Installation Installing the Server into a Telco Rack If you are installing the SuperServer 5014C-T into a Telco type rack, follow the directions given on the previous pages for rack installation. The only difference in the installation procedure will be the positioning of the rack brackets to the rack.

  • Page 24: Checking The Motherboard Setup

    UPER ERVER 5014C-T User's Manual Checking the Motherboard Setup After you install the 5014C-T in the rack, you will need to open the unit to make sure the motherboard is properly installed and all the connections have been made. 1. Accessing the inside of the system (Figure 2-5) First, release the retention screws that secure the unit to the rack.
  • Page 25 Chapter 2: Server Installation Figure 2-5. Accessing the Inside of the System...

  • Page 26: Checking The Drive Bay Setup

    UPER ERVER 5014C-T User's Manual Checking the Drive Bay Setup Next, you should check to make sure the peripheral drives and the Serial ATA drives and Serial ATA backplane have been properly installed and all essential connections have been made. 1.

  • Page 27: Chapter 3: System Interface

    Overview There are several LEDs on the control panel as well as others on the Serial ATA drive carriers to keep you constantly informed of the overall status of the system as well as the activity and health of specific components. There are also two buttons on the chassis control panel.

  • Page 28: Control Panel Leds

    UPER ERVER 5014C-T User's Manual Control Panel LEDs The control panel located on the front of the chassis has five LEDs. These LEDs provide you with critical information related to different parts of the system. This section explains what each LED indicates when illuminated and any corrective action you may need to take.

  • Page 29: Power

    Power: Indicates power is being supplied to the system's power supply units. This LED should normally be illuminated when the system is operating. Serial ATA Drive Carrier LED Each Serial ATA drive carrier has a green LED. green LED (on the front of the Serial ATA drive carrier) indicates drive activity.
  • Page 30 UPER ERVER 5014C-T User's Manual Notes...

  • Page 31: Chapter 4: System Safety

    Electrical Safety Precautions Basic electrical safety precautions should be followed to protect yourself from harm and the SuperServer 5014C-T from damage: Be aware of the locations of the power on/off switch on the chassis as well as the room's emergency power-off switch, disconnection switch or electrical outlet.

  • Page 32: General Safety Precautions

    UPER ERVER 5014C-T User's Manual Motherboard Battery: CAUTION - There is a danger of explosion if the onboard battery is installed upside down, which will reverse its polarites (see Figure 4-1). This battery must be replaced only with the same or an equivalent type recommended by the manufacturer. Dispose of used batteries according to the manufacturer's instructions.

  • Page 33: Esd Precautions

    ESD Precautions Electrostatic discharge (ESD) is generated by two objects with different electrical charges coming into contact with each other. An electrical discharge is created to neutralize this difference, which can damage electronic components and printed circuit boards. measures are generally sufficient to neutralize this difference before contact is made to protect your equipment from ESD: Use a grounded wrist strap designed to prevent static discharge.

  • Page 34: Operating Precautions

    UPER ERVER 5014C-T User's Manual Operating Precautions Care must be taken to assure that the chassis cover is in place when the 5014C-T is operating to assure proper cooling. Out of warranty damage to the 5014C-T system can occur if this practice is not strictly followed.

  • Page 35: Chapter 5: Advanced Motherboard Setup

    Advanced Motherboard Setup This chapter covers the steps required to install the P8SCi motherboard into the SC811T-260 chassis, connect the data and power cables and install add-on cards. All motherboard jumpers and connections are also de- scribed. A layout and quick reference chart are included in this chapter for your reference.

  • Page 36: Motherboard Installation

    UPER ERVER 5014C-T User's Manual Unpacking The motherboard is shipped in antistatic packaging to avoid electrical static discharge. When unpacking the board, make sure the person handling it is static protected. Motherboard Installation This section explains the first step of physically mounting the P8SCi into the SC811T-260 chassis.

  • Page 37: Connecting Cables

    Connecting Cables Now that the motherboard is installed, the next step is to connect the cables to the board. These include the data (ribbon) cables for the peripherals and control panel and the power cables. Connecting Data Cables The ribbon cables used to transfer data from the peripheral devices have been carefully routed to prevent them from blocking the flow of cooling air that moves through the system from front to back.

  • Page 38: I/O Ports

    UPER ERVER 5014C-T User's Manual Figure 5-1. Control Panel Header Pins Power LED IDE LED LAN1 LED LAN2 LED Overheat/Fan Fail LED I/O Ports The I/O ports are color coded in conformance with the PC 99 specification. See Figure 5-2 below for the colors and locations of the various I/O ports. Mouse (Green) Keyboard USB 0/1 Ports...

  • Page 39: Installing Processors

    Installing Processors Avoid placing direct pressure to the top of the processor package. Always remove the power cord first before add- ing, removing or changing any hardware components. Processor Support The P8SCi has a single LGA775 socket, which supports Intel Pentium 4 and Intel Celeron processors.
  • Page 40 UPER ERVER 5014C-T User's Manual 4. Use your thumb and index finger to hold the CPU at the north center and south center edges of the CPU. 5. Align Pin 1 of the CPU with Pin 1 of the socket. Once aligned, care- fully lower the CPU straight down and into the socket.
  • Page 41 Chapter 5: Advanced Motherboard Setup Heatsink Installation 1. Do not apply any thermal grease to the heatsink or the CPU die; the re- quired amount has already been ap- plied. 2. Place the heatsink on top of the CPU so that the four mounting holes are aligned with those on the retention mechanism.

  • Page 42: Installing Memory

    UPER ERVER 5014C-T User's Manual Installing Memory CAUTION! Exercise extreme care when installing or remov- ing DIMM modules to prevent any possible damage. Memory support The P8SCi supports up to 4 GB of DDR2-533/400 unbuffered ECC SDRAM. The P8SCi employs a dual-channel memory configuration, meaning DIMM sockets must be populated in pairs with the same size/same type of memory modules.

  • Page 43: Adding Pci Cards

    Adding PCI Cards Expansion slots The P8SCi has two PCI-Express x1 slots, one 64-bit 133 MHz PCI-X slot and one 32-bit PCI slot. SC811T-260 chassis is included with your system. an installed PCI card to sit at a 90 degree angle so it can fit inside the chassis.

  • Page 44: Motherboard Details

    UPER ERVER 5014C-T User's Manual Motherboard Details JPWAKE1 Keyboard/ ATX Power Connector Mouse USB0/1 COM1 JPUSB1 GLAN1 GLAN2 BANK1 BANK2 GLAN Controller GLAN Controller ICH6R South Bridge JPL1 JPL2 33 MHz PCI PCI-Exp x1 PCI-Exp x1 JWOR SATA3 SATA2 SATA1 SATA0 Jumpers not indicated are for test purposes only.

  • Page 45: P8Sci Quick Reference

    P8SCi Quick Reference Jumpers Description Speaker Setting JBT1 CMOS Clear Power Force On JPL1/PL2 GLAN1/2 JPUSB1 USB1/2 Wake Up JPWAKE1 Keyboard Wake-up Watch Dog Reset/NMI Connector Description COM1/COM2 COM Port 1 Connector /COM Port2 Header Fan1-5 Fan Headers Floppy Floppy Disk Drive Connector IDE Port IPMI IPMI Connector...

  • Page 46: Connector Definitions

    UPER ERVER 5014C-T User's Manual Connector Definitions Power Supply Connectors The primary power supply connec- tor on the P8SCi meets the SSI (Superset ATX) 24-pin specifica- tion. Refer to the table on the right for the pin definitions of the ATX 24-pin power connector (J1).

  • Page 47: Pwr_On Connector

    PW_ON Connector The PW_ON connector is located on pins 1 and 2 of JF1. header should be connected to the chassis power button, which you may also configure to put the system into suspend mode (see the Power Button Mode setting in BIOS).

  • Page 48: Ide Led

    UPER ERVER 5014C-T User's Manual IDE LED The IDE LED is located on pins 13 and 14 of JF1. This LED is used to display all IDE and SATA activity on all drives. See the table on the right for pin definitions. Power_LED Connector The Power LED connector is lo- cated on pins 15 and 16 of JF1.

  • Page 49: Chassis Intrusion

    Chassis Intrusion The Chassis Intrusion header is designated JL1 and located near the FAN4 header. See the table on the right for pin definitions. ATX PS/2 Keyboard and PS/2 Mouse Ports The ATX PS/2 keyboard and the PS/2 mouse ports are designated J14.

  • Page 50: Wake-On-Lan

    UPER ERVER 5014C-T User's Manual Wake-On-LAN The Wake-On-LAN header is des- ignated JWOL on the motherboard. See the table on the right for pin definitions. You must enable the appropriate WOL setting in BIOS to use this function. You must also have a LAN card with a Wake-On- LAN connector and cable to use this feature.

  • Page 51: 5-10 Jumper Settings

    5-10 Jumper Settings Explanation of Jumpers To modify the operation of the motherboard, jumpers can be used to choose between optional set- tings. Jumpers create shorts be- tween two pins to change the function of the connector. Pin 1 is identified with a square solder pad on the printed circuit board.

  • Page 52: Usb Wake-Up

    UPER ERVER 5014C-T User's Manual USB Wake-Up Use JPUSB1 to enable or disable USB Wake-Up, which allows you to wake up the system by de- pressing a key on the keyboard or by clicking the mouse when either is connected to the USB0 or USB1 port.

  • Page 53: Keyboard Wake-Up

    Keyboard Wake-Up The JPWAKE1 jumper is used to allow the system to be woken up by depressing a key on the key- board from an S1 or S3 state in Windows OS. See the table on the right for jumper settings. Your power supply must meet ATX specification 2.01 or higher and supply 720 mA of standby power...

  • Page 54: 5-11 Parallel Port, Floppy And Hard Drive Connections

    UPER ERVER 5014C-T User's Manual 5-11 Parallel Port, Floppy and Hard Drive Connections Use the following information to connect the floppy and hard disk drive cables. • The floppy disk drive cable has seven twisted wires. • A red mark on a wire typically designates the location of pin 1. •...

  • Page 55: Floppy Connector

    Floppy Connector The floppy connector is desig- nated "Floppy". See the table on the right for pin definitions. IDE Connector There are no jumpers to config- ure the onboard IDE interface, which is designated "IDE". See the table below for pin defini- tions.
  • Page 56 UPER ERVER 5014C-T User's Manual Notes 5-22...

  • Page 57: Chapter 6: Advanced Chassis Setup

    Advanced Chassis Setup This chapter covers the steps required to install components and perform maintenance on the SC811T-260 chassis. For component installation, fol- low the steps in the order given to eliminate the most common problems encountered. If a step is unnecessary, skip ahead to the step that follows. Tools Required The only tool you will need to install components and perform maintainance is a Philips screwdriver.

  • Page 58: Control Panel

    UPER ERVER 5014C-T User's Manual Figure 6-1. Figure 6-2. Control Panel The control panel (located on the front of the chassis) must be connected to the JF1 connector on the motherboard to provide you with system control buttons and status indicators. These wires have been bundled together in a ribbon cable to simplify the connection.

  • Page 59: System Fans

    cabling out of the airflow path. The LEDs inform you of system status. See Chapter 3 for details on the LEDs and the control panel buttons. Details on JF1 can be found in Chapter 5. System Fans Two 10-cm blower fans provide the cooling for the SuperServer 5014C-T. The chassis includes air seals under the blower fans and at the chassis cross section, which separates the drive bay area from the motherboard area of the chassis to promote better airflow.

  • Page 60: Serial Ata Drive Installation

    UPER ERVER 5014C-T User's Manual Serial ATA Drive Installation Mounting a Serial ATA drive in a drive carrier The Serial ATA drives are mounted in drive carriers to simplify their installation and removal from the chassis. These carriers also help promote proper airflow for the Serial ATA drive bays.
  • Page 61 Installing/removing hot-swap Serial ATA drives Two Serial ATA drive bays are located in the front of the chassis, making them easily accessible for installation and removal. These drives are hot- swappable, meaning they can be installed and removed without powering down the system.

  • Page 62: Cd-Rom And Floppy Drive Installation

    UPER ERVER 5014C-T User's Manual Serial ATA Power Cables Serial ATA power cables should be routed so that they do not block the airflow through the chassis. location of the cable connections. Serial ATA Backplane The Serial ATA drives plug into a backplane that provides power, drive ID and bus termination.

  • Page 63: Power Supply

    Power Supply The SuperServer 5014C-T has a single 260 watt power supply. This power supply has the capability of operating at 100 or 240 input volts. Depress the main power button on the front of the chassis and then unplug the AC power cord to completely remove power from the system before removing the power supply.
  • Page 64 UPER ERVER 5014C-T User's Manual Notes...

  • Page 65: Chapter 7: Bios

    Chapter 7: BIOS Chapter 7 BIOS Introduction This chapter describes the AwardBIOS Setup utility for the P8SCi. AwardBIOS is stored in a flash chip and can be easily upgraded using a floppy disk-based program. Due to periodic changes in the BIOS, some settings may have been added or deleted that might not yet be recorded in this manual.

  • Page 66: Running Setup

    UPER ERVER 5014C-T User's Manual Running Setup *Optimal default settings are in bold text unless otherwise noted. The BIOS setup options described in this section are selected by choosing the appropriate text from the Main BIOS Setup screen. All displayed text is described in this section, although the screen display is often all you need to understand how to set the options (see on next page).
  • Page 67 Chapter 7: BIOS Main BIOS Setup Menu Date/Time Set the system date and time. Key in the correct information in the "mm", "dd" and "yy" fields. Press the "Enter" key to save the data. Legacy Diskette A/Legacy Diskette B This setting allows the user to set the type of floppy disk drive installed as diskette A and diskette B.

  • Page 68: Advanced Bios Setup

    UPER ERVER 5014C-T User's Manual IDE HDD Auto-Detection This option allows the user to determine the manner in which the AwardBIOS sets the settings for IDE Channel 0 to IDE Channel 3 Master Devices. The options are "None", "Auto" and "Manual." IDE Channel 0 to IDE Channel 3 Master Press the <Enter>...

  • Page 69: Advanced Bios Features

    Chapter 7: BIOS 7-4.1 Advanced BIOS Features When the item of Advanced BIOS Features is highlighted, press the <Enter> key to activate the screen below:...
  • Page 70 UPER ERVER 5014C-T User's Manual Quick Boot If enabled, this feature allows the system to skip certain tests while booting. This will decrease the time needed to boot the system. The settings are "Enabled" and "Disabled". Quiet Boot This feature allows the user to enable "Quiet Boot". When set to Enabled, the BIOS is in the graphic mode and displays only an OEM Logo during POST while booting.

  • Page 71: Advanced Chipset Control

    Chapter 7: BIOS 7-4.2 Advanced Chipset Control DRAM Data Integrity Mode If enabled, this feature allows the data stored in the DRMA memory to be integrated for faster data processing. The options are ECC and Non- ECC. On-Chip Frame Buffer Size This setting allows you to set On-Chip Frame Buffer Size.
  • Page 72 UPER ERVER 5014C-T User's Manual PATA IDE Mode When the item -On-chip Serial ATA is set to Combined Mode, the user can select either Primary or Secondary for Parallel ATA IDE. The options are Primary and Secondary. If On-chip Serial ATA is set to Enhanced Mode, only Serial ATA will be activated, and Primary PATA IDE will be available.
  • Page 73 Chapter 7: BIOS 7-4.3 I/O Device Configuration Onboard Serial Port1/Onboard Serial Port2 This setting allows the user to set the address and the corresponding IRQ for Serial Port1 and Serial Port 2. The options are "Disabled" , "3F8/IRQ4", "2F8/IRQ3", "3E8/IRQ4", "2E8/IRQ3", and "Auto". The default setting for Serial Port1 is "3F8/IRQ4"...
  • Page 74 UPER ERVER 5014C-T User's Manual Use IR Pins This item sets the usage of the IR pins. The options are "RxD2, TxD2" and "IR-Rx2Tx2". Onboard Parallel Port This setting allows the user to set the address and the corresponding IRQ for the onboard parallel port.
  • Page 75 Chapter 7: BIOS Initial Display From This feature sets the device that will initiate the monitor display when the system is first turned on. The options are "PCI Slot" and "PCI Ex(press)". Reset Configuration Data Enabling this setting resets the extended system configuration data when you exit setup.

  • Page 76: Hardware Monitors

    UPER ERVER 5014C-T User's Manual Onboard LAN Boot ROM This feature allows the user to determine if the Boot ROMs of the Onboard LAN chips should be activated. If activated, the user can boot the system from the Onboard LAN chips. The options are Disabled, LAN1, LAN2 and Both.
  • Page 77 Chapter 7: BIOS CPU Warning Temperature This allows you to set the CPU warning temperature. If the CPU temperature reaches this threshold, an alarm will activate and a warning message will be displayed onscreen. The options are "Disabled", "60 C/140 F", "65 F", "70 C/158...
  • Page 78 UPER ERVER 5014C-T User's Manual 7-4.6 Processor & Clock Options Thermal Management This setting determines the method used by the BIOS to control the thermal management of the system. The options are "Thermal Monitor 1 (On die throttling) " and "Thermal Monitor 2 (Ratio & VID transition)." (See Section 1-4 for details.) Limit CPUID MaxVal Select "Enabled"...

  • Page 79: Dmi Event Log

    Chapter 7: BIOS 7-4.7 DMI Event Log DMI Event Log This setting allows you to Enable or Disable the function of DMI Event Logging. The options are Disabled and Enabled. Clear All DMI Event Logs Select Yes and press <Enter> to clear all DMI event logs. The default setting is "No."...

  • Page 80: Console Redirection

    UPER ERVER 5014C-T User's Manual 7-4.8 Console Redirection Console Redirection This setting allows you to Enable or Disable the function of Console Redirection. The options are Disabled and Enabled. BAUD Rate Select the BAUD rate for console redirection. The options are 300, 1200, 2400, 9600, 19.2K, 38.4K, 57.6K and 115.2K.

  • Page 81: Security

    Chapter 7: BIOS Security Choose Security from the Award BIOS main menu with the Left/Right arrow keys. You should see the following display: Set Supervisor Password When the item "Set Supervisor Password" is highlighted on the above screen, press the <Enter> key. When prompted, type the Supervisor Password in the dialogue box to set or to change the Supervisor Password.

  • Page 82: Boot

    UPER ERVER 5014C-T User's Manual Boot Choose Boot from the Award BIOS main menu with the Left/Right arrow keys. You should see the following display: The Award BIOS attempts to load the operating system from devices specified by the users in a user-specified sequence. Removable Device Boot Priority/Hard Drive Boot Priority/CD-ROM Boot Priority This item allows the user to select the Boot Priority of Hard Disk...
  • Page 83 Chapter 7: BIOS Third Boot Device This item allows the user to set the third boot-up device. The options are "Floppy", "LS120", "HDD", "SCSI", "CDROM", "ZIP100", "USB-FDD", "USB- ZIP", "USB-CDROM", "USB-HDD", "LAN" and "Disabled". Boot Other Device If enabled, this option enables the BIOS to load the OS from another device rather than the ones that have been specified as the first, second and third boot up devices.

  • Page 84: Exit

    UPER ERVER 5014C-T User's Manual Exit Choose Exit from the Award BIOS main menu with the Left/Right arrow keys. You should see the following display: Save & Exit Setup When the item "Save & Exit Setup" is highlighted, press <Enter> to save the changes you've made in the BIOS program (CMOS) and exit.

  • Page 85: Appendix A: Bios Post Messages

    Appendix A BIOS POST Messages During the Power-On Self-Test (POST), the BIOS will check for problems. If a problem is found, the BIOS will activate an alarm or display a message. The following is a list of such BIOS messages. Beeps (1 long beep+1 short pause) continuously 1 long beep+2 short beeps...
  • Page 86 UPER ERVER 5014C-T User's Manual Notes...

  • Page 87: Appendix B: Bios Post Codes

    Award BIOS POST Codes This section lists the POST (Power On Self Testing) Codes for the Award BIOS. POST (hex) Test CMOS R/W functionality. Early chipset initialization: -Disable shadow RAM -Disable L2 cache (socket 7 or below) -Program basic chipset registers Detect memory -Auto-detection of DRAM size, type and ECC.
  • Page 88 UPER ERVER 5014C-T User's Manual POST (hex) Reserved Auto detect flash type to load appropriate flash R/W codes into the run time area in F000 for ESCD & DMI support. Reserved Use walking 1’s algorithm to check out interface in CMOS circuitry.
  • Page 89 POST (hex) Description 1. Initialize multi-language 2. Put information on screen display, including Award title, CPU type, CPU speed …. Reserved Reserved Reserved Reserved Reserved Reset keyboard except Winbond 977 series Super I/O chips. Reserved Reserved Reserved Reserved Reserved Reserved Reserved Reserved Test 8254...
  • Page 90 UPER ERVER 5014C-T User's Manual POST (hex) Description Reserved Initialize the combined Trend Anti-Virus code. Reserved (Optional Feature) Show message for entering AWDFLASH.EXE from FDD (optional) Reserved 1. Initialize Init_Onboard_Super_IO switch. 2. Initialize Init_Onboard_AUDIO switch. Reserved Reserved Okay to enter Setup utility; i.e. not until this POST stage can users enter the CMOS setup utility.
  • Page 91 POST (hex) Description Reserved Reserved 1. Call chipset power management hook. 2. Recover the text font used by EPA logo (not for full screen logo) 3. If password is set, ask for password. Save all data in stack back to CMOS Initialize ISA PnP boot devices 1.
  • Page 92 UPER ERVER 5014C-T User's Manual Notes...

  • Page 93: Appendix C: Software Installation

    Appendix C: Software Installation Appendix C Software Installation After all the hardware has been installed, you must first configure Intel's ICH6R SATA RAID before installing the Windows Operating System and other software drivers. The necessary drivers are all included on the Supermicro CDs that came packaged with your motherboard.
  • Page 94 UPER ERVER 5014C-T User's Manual ATA Operating Modes You can select from the following two modes: Legacy mode and Native mode. SATA Operating Modes You can select from the following modes: Auto, Combined, Enhanced and SATA Only Mode. The number of devices supported by these modes are listed below: SATA Only: a maximum of 4 devices are supported (4 SATA) Auto Mode: a maximum of 6 devices supported (4 SATA + 2 IDE)
  • Page 95 Appendix C: Software Installation Using the ICH6R SATA RAID Utility Program Creating, Deleting and Reseting RAID Volumes 1. After the system exits the BIOS Setup Utility, the system will automati- cally reboot. The following screen appears after the Power-On Self Test. 2.
  • Page 96 UPER ERVER 5014C-T User's Manual 2. Specify the RAID volume name and press the <Tab> key or the <Enter> key to go to the next field. (Use the <Esc> key to return to the previous menu.) 3.Use the<Tab>, <Up Arrow>, <Down Arrow> and <Enter> keys to enter the appropriate values for the items selected and go to the next field.
  • Page 97 Appendix C: Software Installation 5. You will return to the main menu with DISK/VOLUME INFORMATION up- dated as shown in the following screen. 6. Once the above screen appears, use the <Down Arrow> key to select "Exit" and press the <Enter> key. The following screen will appear:...
  • Page 98 UPER ERVER 5014C-T User's Manual 7. When asked "Are you sure you want to exit? (Y/N):", type "Y" to confirm the selections and exit the "Create RAID Volume" menu. Press the <Enter> key to return to the main menu. Deleting a RAID Volume 1.
  • Page 99 Appendix C: Software Installation 3. When asked "Are you sure you want to delete this volume?", type "Y" to confirm and press the <Enter> key to return to the main menu. (Use the <Esc> key to return to the previous menu.) Reset Disks to Non-RAID 1.
  • Page 100 UPER ERVER 5014C-T User's Manual 2. When asked "Are you sure you want to reset all RAID data (Y/N):", type "Y" to confirm the selection, and press the <Enter> key to return to the main menu. Exiting the ICH6R SATA RAID Configuration Utility Program 1.
  • Page 101 Appendix C: Software Installation C-3 Installing Drivers and Other Software Programs After the operating system has been installed, you may need to install some additional software drivers. The necessary drivers are all included on the Supermicro CDs that came packaged with your motherboard. (For Windows 2003, please refer to page C-14.) Insert the Supermicro CD that came with the package into the CD-ROM...
  • Page 102 UPER ERVER 5014C-T User's Manual Supero Doctor III The Supero Doctor III program is a web-based management tool that sup- ports remote management capabilities with both remote and local manage- ment tools. The local management tool is called the Supero Doctor III Client. Supero Doctor III (which is included on the CD-ROM that came with your motherboard) allows you to monitor the environment and operations of your system.
  • Page 103 Appendix C: Software Installation Supero Doctor III Interface (Remote Control Screen) Supero Doctor III revision 1.0 can be downloaded from our website at ftp://ftp.supermicro.com/utility/Supero_Doctor_III/. You can also download the SDIII User's Guide at: http://www.supermicro.com/PRODUCT/Manuals/ SDIII/UserGuide.pdf. For Linux, we recommend using Supero Doctor II. C-11...
  • Page 104 UPER ERVER 5014C-T User's Manual Notes C-12...

  • Page 105: Appendix D: System Specifications

    Appendix D: System Specifications Appendix D System Specifications Processors Single Intel® Pentium® 4 LGA775 ("Prescott" type) processors with hyper-threading technology at an 800/533 MHz FSB speed or single Intel® Celeron® processors at a 533 MHz FSB speed. Note: Please refer to the support section of our web site for a complete listing of supported processors (http://www.supermicro.com/support/).
  • Page 106 UPER ERVER 5014C-T User's Manual Chassis Model: SC811T-260: (1U Rackmount) Dimensions: (WxHxD) 16.7 x 1.7 x 22 in. (424 x 43 x 559 mm) Weight Net (Bare Bone): 28 lbs. (12.7 kg.) Net (Gross): 34 lbs. (15.5 kg.) System Cooling Two (2) 10-cm ball bearing blower fans System Input Requirements AC Input Voltage: 100-240 VAC...
  • Page 107 Appendix D: System Specifications Regulatory Compliance Electromagnetic Emissions: FCC Class B, EN 55022 Class B, EN 61000-3-2/-3-3, CISPR 22 Class B Electromagnetic Immunity: EN 55024/CISPR 24, (EN 61000-4-2, EN 61000-4-3, EN 61000-4-4, EN 61000-4-5, EN 61000-4-6, EN 61000-4-8, EN 61000-4-11) Safety: EN 60950/IEC 60950-Compliant UL Listed (USA)
