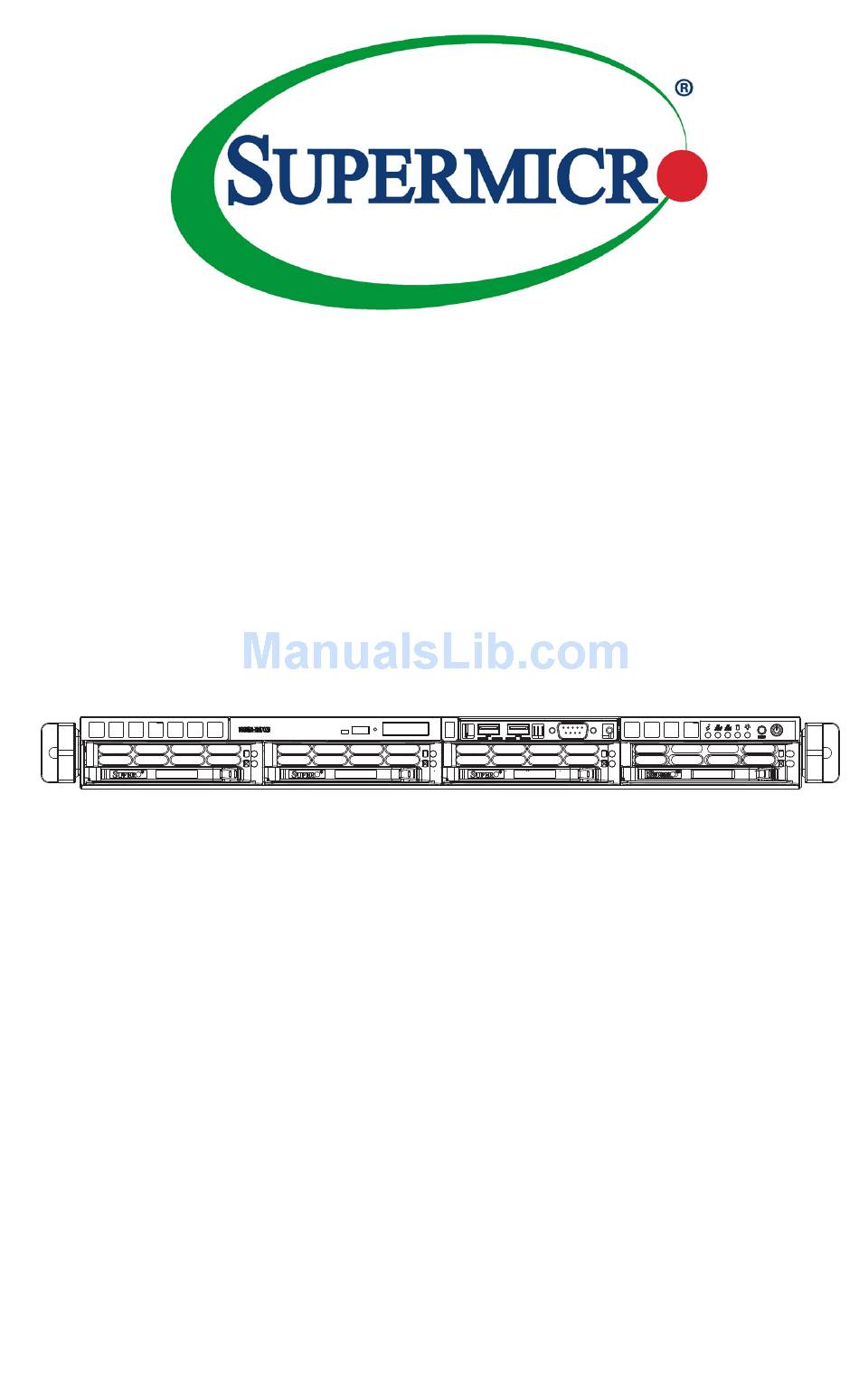

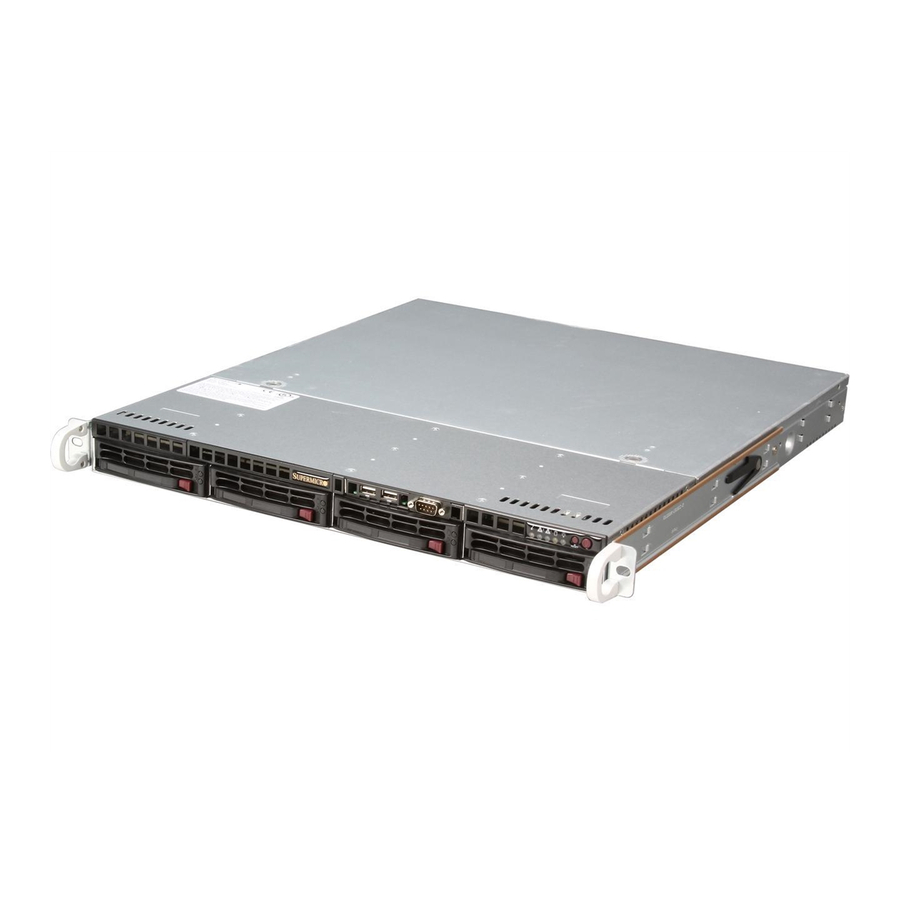

  • Page 1 UPER ERVER ® 5018R-M 5018R-MR USER’S MANUAL 1.0a...
  • Page 2 This product, including software and docu- mentation, is the property of Supermicro and/or its licensors, and is supplied only under a license. Any use or reproduction of this product is not allowed, except as expressly permitted by the terms of said license.

  • Page 3: About This Manual

    It provides information for the installation and use of the SuperServer 5018R- M/5018R-MR. Installation and maintenance should be performed by experienced technicians only. The SuperServer 5018R-M/5018R-MR is a high-end server based on the SC813MTQ-350CB/SC813MTQ-R400CB 1U rackmount chassis and the Super X10SRi-F single processor motherboard.
  • Page 4 UPER ERVER 5018R-M/5018R-MR User's Manual Chapter 5: Advanced Motherboard Setup Chapter 5 provides detailed information on the X10SRi-F motherboard, including the locations and functions of connections, headers and jumpers. Refer to this chapter when adding or removing processors or main memory and when reconfiguring the motherboard.
  • Page 5 Preface Notes...

  • Page 6: Table Of Contents

    Server Chassis Features ................1-3 System Power ....................1-3 SATA Subsystem ..................... 1-3 Control Panel ....................1-3 Cooling Fans ....................1-3 Contacting Supermicro ..................1-5 Chapter 2 Server Installation Overview ......................2-1 Unpacking the System ..................2-1 Preparing for Setup ..................2-1 Choosing a Setup Location ................
  • Page 7 Table of Contents Control Panel Buttons ..................3-1 Reset ....................... 3-1 Power ......................3-1 Control Panel LEDs ..................3-2 Overheat/Fan Fail ................... 3-2 NIC2 ........................ 3-2 NIC1 ........................ 3-2 HDD ......................... 3-2 Power ......................3-3 Hard Drive Carrier LEDs ................. 3-3 Chapter 4 Standardized Warning Statements for AC Systems About Standardized Warning Statements ............
  • Page 8 UPER ERVER 5018R-M/5018R-MR User's Manual Installing Memory .................... 5-8 Adding PCI Cards ..................5-10 Motherboard Details ..................5-11 X10SRi-F Quick Reference ................5-11 Connector Definitions ................... 5-13 Jumper Settings .................... 5-19 5-10 Onboard Indicators ..................5-22 5-11 SATA Ports ....................5-23 5-12 Installing Software ..................

  • Page 9: Chapter 1 Introduction

    Chapter 1 Introduction Overview The SuperServer 5018R-M/5018R-MR is a high-end server comprised of two main subsystems: the SC813MTQ-350CB/SC813MTQ-R400CB 1U server chassis and the X10SRi-F single processor motherboard. Please refer to our web site for information on operating systems that have been certified for use with the system (www.supermicro.com).

  • Page 10: Motherboard Features

    ERVER 5018R-M/5018R-MR User's Manual Motherboard Features At the heart of the SuperServer 5018R-M/5018R-MR lies the X10SRi-F, a single processor motherboard based on the Intel® C612 Express chipset. Below are the main features of the X10SRi-F (see Figure 1-1 for a block diagram of the chipset).

  • Page 11: Server Chassis Features

    The following is a general outline of the main features of the chassis. System Power When configured as a SuperServer 5018R-M, the SC813MTQ chassis includes a single 350W power supply. When configured as a SuperServer 5018R-MR, the SC813MTQ includes two (redundant) 400W power supplies.

  • Page 12: System Block Diagram

    UPER ERVER 5018R-M/5018R-MR User's Manual Figure 1-1. Intel C612 Express Chipset: System Block Diagram Note: This is a general block diagram. Please see Chapter 5 for details. VR12.5 5 PHASE 145W Skt-R3 LGA2011-3 3A/B DMI2 PCI-E X8 Gen3 PCI-E X16 Gen3 SLOT3 SLOT6 PCIe3.0 x8...

  • Page 13: Contacting Supermicro

    Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Web Site: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML...
  • Page 14 UPER ERVER 5018R-M/5018R-MR User's Manual Notes...

  • Page 15: Chapter 2 Server Installation

    Chapter 2: Server Installation Chapter 2 Server Installation Overview This chapter provides a quick setup checklist to get your SuperServer 5018R- M/5018R-MR up and running. Following the steps in the order given should enable you to have the system operational within a minimal amount of time. This quick setup assumes that your system has come to you with the processor and memory preinstalled.

  • Page 16: Warnings And Precautions

    UPER ERVER 5018R-M/5018R-MR User's Manual installation only in a Restricted Access Location (dedicated equipment rooms, service closets and the like). • This product is not suitable for use with visual display work place devices acccording to §2 of the German Ordinance for Work with Visual Display Units. Warnings and Precautions Rack Precautions •...

  • Page 17: Rack Mounting Considerations

    Chapter 2: Server Installation Rack Mounting Considerations Ambient Operating Temperature If installed in a closed or multi-unit rack assembly, the ambient operating tempera- ture of the rack environment may be greater than the ambient temperature of the room. Therefore, consideration should be given to installing the equipment in an environment compatible with the manufacturer’s maximum rated ambient tempera- ture (Tmra).

  • Page 18: Installing The System Into A Rack

    Identifying the Sections of the Rack Rails You may have received rack rail hardware with the SuperServer 5018R-M/5018R- MR. (Two front inner rails should already be attached to the chassis.) This hardware consists of two rear inner rails that secure to the chassis, one on each side just be- hind the preinstalled front inner rails.

  • Page 19: Installing The Rack Rails

    Figure 2-1. Installing Rear Inner Chassis Rails Installing the Rack Rails Determine where you want to place the SuperServer 5018R-M/5018R-MR in the rack (see Rack and Server Precautions in Section 2-3). Position the chassis rail guides at the desired location in the rack, keeping the sliding rail guide facing the inside of the rack.

  • Page 20: Installing The Server Into The Rack

    UPER ERVER 5018R-M/5018R-MR User's Manual Installing the Server into the Rack You should now have rails attached to both the chassis and the rack unit. The next step is to install the server into the rack. Do this by lining up the rear of the chassis rails with the front of the rack rails.

  • Page 21: Installing The Server Into A Telco Rack

    Chapter 2: Server Installation Installing the Server into a Telco Rack To install the SuperServer 5018R-M/5018R-MR into a Telco type rack, use two L- shaped brackets on either side of the chassis (four total). First, determine how far the server will extend out the front of the rack. Larger chassis should be positioned to balance the weight between front and back.
  • Page 22 UPER ERVER 5018R-M/5018R-MR User's Manual Notes...

  • Page 23: Chapter 3 System Interface

    Chapter 3: System Interface Chapter 3 System Interface Overview There are several LEDs on the control panel as well as others on the hard drive carriers to keep you constantly informed of the overall status of the system as well as the activity and health of specific components.

  • Page 24: Control Panel Leds

    UPER ERVER 5018R-M/5018R-MR User's Manual Control Panel LEDs The control panel located on the front of the SC813MTQ chassis has five LEDs. These LEDs provide you with critical information related to different parts of the system. This section explains what each LED indicates when illuminated and any corrective action you may need to take.

  • Page 25: Nic1

    Chapter 3: System Interface NIC1 Indicates network activity on LAN1 when flashing. Channel activity for all HDDs. This light indicates hard drive activity on the 5018R- M/5018R-MR when flashing. Power Indicates power is being supplied to the system's power supply units. This LED should normally be illuminated when the system is operating.
  • Page 26 UPER ERVER 5018R-M/5018R-MR User's Manual Notes...

  • Page 27: About Standardized Warning Statements

    The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components.
  • Page 28 UPER ERVER 5018R-M/5018R-MR User's Manual Warnung WICHTIGE SICHERHEITSHINWEISE Dieses Warnsymbol bedeutet Gefahr. Sie befinden sich in einer Situation, die zu Verletzungen führen kann. Machen Sie sich vor der Arbeit mit Geräten mit den Gefahren elektrischer Schaltungen und den üblichen Verfahren zur Vorbeugung vor Unfällen vertraut.
  • Page 29 Warning Statements for AC Systems ‫جسذٌة‬ ‫اصابة‬ ً‫تتسبب ف‬ ‫حالة ٌوكي أى‬ ً‫اًك ف‬ ‫خطز‬ ًٌ‫ٌع‬ ‫هذا الزهز‬ !‫تحذٌز‬ ‫الذوائز‬ ‫بالوخاطز الٌاجوة عي‬ ‫ي على علن‬ ، ‫ك‬ ‫هعذات‬ ‫تعول على أي‬ ‫قبل أى‬ ‫الكهزبائٍة‬ ‫حىادث‬ ‫أي‬ ‫وقىع‬ ‫وٌع‬ ‫ل‬ ‫الىقائٍة‬...

  • Page 30: Installation Instructions

    UPER ERVER 5018R-M/5018R-MR User's Manual Installation Instructions Warning! Read the installation instructions before connecting the system to the power source. 設置手順書 システムを電源に接続する前に、 設置手順書をお読み下さい。 警告 将此系统连接电源前,请先阅读安装说明。 警告 將系統與電源連接前，請先閱讀安裝說明。 Warnung Vor dem Anschließen des Systems an die Stromquelle die Installationsanweisungen lesen. ¡Advertencia! Lea las instrucciones de instalación antes de conectar el sistema a la red de alimentación.

  • Page 31: Circuit Breaker

    Chapter 4: Warning Statements for AC Systems Circuit Breaker Warning! This product relies on the building's installation for short-circuit (overcurrent) protection. Ensure that the protective device is rated not greater than: 250 V, 20 A. サーキッ ト ・ ブレーカー この製品は、 短絡 （過電流） 保護装置がある建物での設置を前提としています。 保護装置の定格が250 V、...

  • Page 32: Power Disconnection Warning

    UPER ERVER 5018R-M/5018R-MR User's Manual 경고! 이 제품은 전원의 단락(과전류)방지에 대해서 전적으로 건물의 관련 설비에 의존합니다. 보호장치의 정격이 반드시 250V(볼트), 20A(암페어)를 초과하지 않도록 해야 합니다. Waarschuwing Dit product is afhankelijk van de kortsluitbeveiliging (overspanning) van uw electrische installatie. Controleer of het beveiligde aparaat niet groter gedimensioneerd is dan 220V, 20A.
  • Page 33 Chapter 4: Warning Statements for AC Systems ¡Advertencia! El sistema debe ser disconnected de todas las fuentes de energía y del cable eléctrico quitado de los módulos de fuente de alimentación antes de tener acceso el interior del chasis para instalar o para quitar componentes de sistema. Attention Le système doit être débranché...

  • Page 34: Equipment Installation

    UPER ERVER 5018R-M/5018R-MR User's Manual Equipment Installation Warning! Only trained and qualified personnel should be allowed to install, replace, or service this equipment. 機器の設置 トレーニングを受け認定された人だけがこの装置の設置、 交換、 またはサービスを許可 されています。 警告 只有经过培训且具有资格的人员才能进行此设备的安装、更换和维修。 警告 只有經過受訓且具資格人員才可安裝、更換與維修此設備。 Warnung Das Installieren, Ersetzen oder Bedienen dieser Ausrüstung sollte nur geschultem, qualifiziertem Personal gestattet werden.

  • Page 35: Restricted Area

    Chapter 4: Warning Statements for AC Systems Waarschuwing Deze apparatuur mag alleen worden geïnstalleerd, vervangen of hersteld door geschoold en gekwalificeerd personeel. Restricted Area Warning! This unit is intended for installation in restricted access areas. A restricted access area can be accessed only through the use of a special tool, lock and key, or other means of security.

  • Page 36: Battery Handling

    UPER ERVER 5018R-M/5018R-MR User's Manual ‫אזור עם גישה מוגבלת‬ !‫אזהרה‬ ‫יש להתקין את היחידה באזורים שיש בהם הגבלת גישה. הגישה ניתנת בעזרת‬ .)'‫כלי אבטחה בלבד (מפתח, מנעול וכד‬ ‫محظورة‬ ‫مناطق‬ ٍ‫نتركُبها ف‬ ‫هذه انىحذة‬ ‫تخصيص‬ ‫تم‬ ،‫أداة خاصت‬ ‫من خالل استخذاو‬ ‫فقط‬...
  • Page 37 Chapter 4: Warning Statements for AC Systems Warnung Bei Einsetzen einer falschen Batterie besteht Explosionsgefahr. Ersetzen Sie die Batterie nur durch den gleichen oder vom Hersteller empfohlenen Batterietyp. Entsorgen Sie die benutzten Batterien nach den Anweisungen des Herstellers. Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant.

  • Page 38: Redundant Power Supplies

    UPER ERVER 5018R-M/5018R-MR User's Manual Redundant Power Supplies Warning! This unit might have more than one power supply connection. All connections must be removed to de-energize the unit. 冗長電源装置 このユニッ トは複数の電源装置が接続されている場合があります。 ユニッ トの電源を切るためには、 すべての接続を取り外さなければなりません。 警告 此部件连接的电源可能不止一个，必须将所有电源断开才能停止给该部件供电。 警告 此裝置連接的電源可能不只一個，必須切斷所有電源才能停止對該裝置的供電。 Warnung Dieses Gerät kann mehr als eine Stromzufuhr haben. Um sicherzustellen, dass der Einheit kein trom zugeführt wird, müssen alle Verbindungen entfernt werden.

  • Page 39: Backplane Voltage

    Chapter 4: Warning Statements for AC Systems ‫امداد الطاقة‬ ‫بوحدات‬ ‫عدة اتصاالت‬ ‫جهاز‬ ‫ال‬ ‫يكون لهذا‬ ‫قد‬ ‫الكهرباء‬ ‫عن‬ ‫وحدة‬ ‫ال‬ ‫لعسل‬ ‫كافة االتصاالت‬ ‫يجب إزالة‬ 경고! 이 장치에는 한 개 이상의 전원 공급 단자가 연결되어 있을 수 있습니다. 이 장치에 전원을...

  • Page 40: Comply With Local And National Electrical Codes

    UPER ERVER 5018R-M/5018R-MR User's Manual ‫מתח בפנל האחורי‬ !‫הרה‬ ‫אז‬ ‫קיימת סכנת מתח בפנל האחורי בזמן תפעול המערכת. יש להיזהר במהלך‬ .‫העבודה‬ ‫اللىحة‬ ‫أوالطاقة المىجىدة على‬ ‫التيار الكهزبائي‬ ‫مه‬ ‫خطز‬ ‫هناك‬ ‫هذا الجهاس‬ ‫خدمة‬ ‫كه حذرا عند‬ ‫يعمل‬ ‫النظام‬ ‫عندما يكىن‬ 경고! 시스템이...

  • Page 41: Product Disposal

    Chapter 4: Warning Statements for AC Systems Attention L'équipement doit être installé conformément aux normes électriques nationales et locales. ‫תיאום חוקי החשמל הארצי‬ !‫אזהרה‬ ‫הציוד חייבת להיות תואמת לחוקי החשמל המקומיים והארציים‬ ‫התקנת‬ ‫المتعلقة‬ ‫المحلية والىطىية‬ ‫قىاويه‬ ‫يجب أن يمتثل لل‬ ‫الكهربائية‬...

  • Page 42: Hot Swap Fan Warning

    UPER ERVER 5018R-M/5018R-MR User's Manual Attention La mise au rebut ou le recyclage de ce produit sont généralement soumis à des lois et/ou directives de respect de l'environnement. Renseignez-vous auprès de l'organisme compétent. ‫סילוק המוצר‬ !‫אזהרה‬ .‫חוקי המדינה‬ ‫סילוק סופי של מוצר זה חייב להיות בהתאם להנחיות ו‬ ‫القىانين...
  • Page 43 Chapter 4: Warning Statements for AC Systems Warnung Gefährlich Bewegende Teile. Von den bewegenden Lüfterblätter fern halten. Die Lüfter drehen sich u. U. noch, wenn die Lüfterbaugruppe aus dem Chassis genommen wird. Halten Sie Finger, Schraubendreher und andere Gegenstände von den Öffnungen des Lüftergehäuses entfernt. ¡Advertencia! Riesgo de piezas móviles.

  • Page 44: Power Cable And Ac Adapter

    Electrical Appliance and Material Safety Law prohibits the use of UL or CSA -certified cables (that have UL/CSA shown on the code) for any other electrical devices than products designated by Supermicro only. 電源コードとACアダプター 製品を設置する場合、 提供または指定された接続ケーブル、 電源コードとACアダプター...
  • Page 45 Appareils électroménagers et de loi sur la sécurité Matériel interdit l'utilisation de UL ou CSA câbles certifiés qui ont UL ou CSA indiqué sur le code pour tous les autres appareils électriques que les produits désignés par Supermicro seulement.
  • Page 46 UPER ERVER 5018R-M/5018R-MR User's Manual Notes 4-20...

  • Page 47: Chapter 5 Advanced Motherboard Setup

    Chapter 5: Advanced Motherboard Setup Chapter 5 Advanced Motherboard Setup This chapter covers the steps required to install processors and heatsinks to the X10SRi-F motherboard, connect the data and power cables and install add-on cards. All motherboard jumpers and connections are described and a layout and quick reference chart are included in this chapter.

  • Page 48: Processor And Heatsink Installation

    CPU socket cap is in place and none of the socket pins are bent; otherwise, contact your retailer immediately. • Refer to the Supermicro web site for updates on CPU support. Installing an LGA2011 Processor Press down on the lever labeled 'Close 1st' 1.
  • Page 49 Chapter 5: Advanced Motherboard Setup 3. With the lever labeled 'Close 1st' fully retracted, gently push down on the 'Open 1st' lever to open the load plate. Lift the load plate to open it completely. Gently push 4. Using your thumb and the index down to pop the load plate finger, remove the 'WARNING'...
  • Page 50 UPER ERVER 5018R-M/5018R-MR User's Manual Caution: You can only install the CPU to the socket in one direction. Make sure that the CPU is properly inserted into the socket before closing the load plate. If it doesn't close properly, do not force it as it may damage your CPU. Instead, open the load plate again and double-check that the CPU is aligned properly.

  • Page 51: Installing A Passive Cpu Heatsink

    Chapter 5: Advanced Motherboard Setup Figure 5-1. Installing the Heatsink Screw #1 Screw #4 Screw #3 Screw #2 Installing a Passive CPU Heatsink 1. Do not apply any thermal grease to the heatsink or the CPU die; the required amount has already been applied. 2.

  • Page 52: Connecting Cables

    UPER ERVER 5018R-M/5018R-MR User's Manual Connecting Cables Now that the processors are installed, the next step is to connect the cables to the motherboard. These include the data (ribbon) cables for the peripherals and control panel and the power cables. Connecting Data Cables The cables used to transfer data from the peripheral devices have been carefully routed in preconfigured systems to prevent them from blocking the flow of cooling...

  • Page 53: I/O Ports

    Chapter 5: Advanced Motherboard Setup Figure 5-3. Front Control Panel Header Pins (JF1) Ground FP PWRLED 3.3 V HDD LED UID Switch NIC1 Activity LED 3.3V Stby 3.3V Stby NIC2 Activity LED OH/Fan Fail Blue LED Power Fail LED 3.3V Reset Reset Button Ground...

  • Page 54: Installing Memory

    512 GB of ECC LRDIMM or 256 GB of ECC RDIMM (Registered DIMMs) DDR4- 2400/2133/1866/1600 memory.in eight memory slots. Please refer to the table on the following page and the Supermicro website for possible updates to memory support. Figure 5-5. Installing a DIMM into a Slot...
  • Page 55 Chapter 5: Advanced Motherboard Setup Towards the edge of the motherboard Slot A1 Slot A2 (Blue Slot) Slot B1 Slot B2 (Blue Slot) Towards the CPU Notes • Be sure to use memory modules of the same type, same speed, same frequency on the same motherboard.

  • Page 56: Adding Pci Cards

    UPER ERVER 5018R-M/5018R-MR User's Manual Adding PCI Cards PCI Expansion Slots One riser card is used to support a PCI expansion (add-on) card in the system. The system can accommodate one standard size (full height full length) PCI expansion card. When viewed from the chassis front, the card installs to the left rear of the system.

  • Page 57: Motherboard Details

    Chapter 5: Advanced Motherboard Setup Motherboard Details Figure 5-6. SUPER X10SRi-F Layout COM1 JUIDB1 FAN5 USB2/3 USB0/1 LAN2 LAN1 (3.0) IPMI_LAN JPL1:LAN1/2 1-2:ENABLE LEDM1 2-3:DISABLE COM2 JPL1 BIOS USB4/5 X10SRi-F USB6/7 REV: 1.01 LGA2011-3 DESIGNED IN USA USB8/9 JBT1 JIPMB1 BAR CODE IPMI CODE BIOS...
  • Page 58 UPER ERVER 5018R-M/5018R-MR User's Manual Connector Description COM1/COM2 COM1 (Port)/COM2 (Header) Fan1 - Fan5, FanA System/CPU Fan Headers Speaker/Buzzer Front Control Panel Header JIPMB1 4-pin Exrternal BMC I C Header (for an IPMI Card) Chassis Intrusion Header Power SMB (System Management Bus) 24-pin ATX Main Power Connector JOH1 Overheat/Fan Fail LED Indicator...

  • Page 59: Connector Definitions

    Chapter 5: Advanced Motherboard Setup Connector Definitions ATX Power 24-pin Connector Pin Definitions Pin# Definition Pin # Definition Power Connectors +3.3V +3.3V The 24-pin main power connector (J24) -12V +3.3V is used to provide power to the mother- board. The 8-pin CPU power connector PS_ON (JPWR1) is also required for the proces- sor.
  • Page 60 UPER ERVER 5018R-M/5018R-MR User's Manual NIC1/NIC2 (LAN1/LAN2) The NIC (Network Interface Controller) LED connection for LAN port 1 is located LAN1/LAN2 LED Pin Definitions (JF1) on pins 11 and 12 of JF1, and the LED Pin# Definition connection for LAN Port 2 is on pins 9 9/11 and 10.

  • Page 61: Power Button

    Chapter 5: Advanced Motherboard Setup Power Button The Power Button connection is located on pins 1 and 2 of JF1. Momentarily Power Button Pin Definitions (JF1) contacting both pins will power on/off the system. This button can also be config- Pin# Definition ured to function as a suspend button (see...

  • Page 62: Chassis Intrusion

    UPER ERVER 5018R-M/5018R-MR User's Manual Fan Headers Fan Header Pin Definitions The X10SRi-F has six fan headers (Fan1 Pin# Definition ~ Fan5 and FanA). These are 4-pin fan Ground (Black) headers and work with IPMI to monitor +12V (Red) and change fan speed as required based Tachometer on the system temperature.
  • Page 63 Color/State Status Note: UID can also be triggered via IPMI Blue: On Unit Identified on the motherboard. For more information on IPMI, please refer to the IPMI User's Guide posted on our website: http://www. supermicro.com. 5-17...
  • Page 64 UPER ERVER 5018R-M/5018R-MR User's Manual T-SGPIO 1/2 & 3-SGPIO 1/2 Headers Serial Link-SGPIO Pin Definitions Two T-SGPIO (Serial-Link General Pur- Pin# Definition Definition pose Input/Output) headers are provided on the motherboard. These headers are Ground DATA Out used to communicate with the enclosure Load Ground management chip in the system.

  • Page 65: Jumper Settings

    Chapter 5: Advanced Motherboard Setup Jumper Settings Explanation of Jumpers To modify the operation of the mother- board, jumpers can be used to choose Connector between optional settings. Jumpers cre- Pins ate shorts between two pins to change the function of the connector. Pin 1 is Jumper identified with a square solder pad on the printed circuit board.
  • Page 66 UPER ERVER 5018R-M/5018R-MR User's Manual PCI Slot SMB Enable PCI Slot SMB Enable/Disable Jumper Settings Use Jumpers JI C1/JI C2 to enable PCI-E Setting Definition SMB (System Management Bus) support Pins 1-2 Enabled to improve system management for the Pins 2-3 Disabled PCI-E slots.
  • Page 67 Chapter 5: Advanced Motherboard Setup Manufacturer Mode Select Close this jumper (JPME2) to bypass SPI ME Mode Select flash security and force the system to use Jumper Settings the Manufacturer mode, which will allow Jumper Setting Definition the user to flash the system firmware from Pins 1-2 Normal (Default) a host server to modify system settings.

  • Page 68: 5-10 Onboard Indicators

    UPER ERVER 5018R-M/5018R-MR User's Manual 5-10 Onboard Indicators LAN1/LAN2 LEDs Link LED Activity LED The two Ethernet ports and the dedicated IPMI LAN port on the I/O backplane each have two LEDs. On each port, one LED indicates activity when blinking while the LAN LED Connection Speed Indication other LED may be green, amber or off to...

  • Page 69: 5-11 Sata Ports

    Chapter 5: Advanced Motherboard Setup 5-11 SATA Ports SATA Port Pin Definitions Pin # Definition SATA Ports Ground Ten SATA 3.0 ports are included on the motherboard. These SATA ports are sup- ported by the Intel C612 PCH chip. See Ground the table on the right for the pin definitions of the onboard SATA ports.

  • Page 70: 5-12 Installing Software

    UPER ERVER 5018R-M/5018R-MR User's Manual 5-12 Installing Software The Supermicro ftp site contains drivers and utilities for your system at ftp://ftp. supermicro.com. Some of these must be installed, such as the chipset driver. After accessing the ftp site, go into the CDR_Images directory and locate the ISO file for your motherboard.

  • Page 71: Superdoctor® 5

    Chapter 5: Advanced Motherboard Setup SuperDoctor® 5 The Supermicro SuperDoctor 5 is a program that functions in a command-line or web-based interface in Windows and Linux operating systems. The program moni- tors system health information such as CPU temperature, system voltages, system power consumption, fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP).

  • Page 72: 5-13 Onboard Battery

    UPER ERVER 5018R-M/5018R-MR User's Manual 5-13 Onboard Battery Please handle used batteries carefully. Do not damage the battery in any way; a damaged battery may release hazardous materials into the environment. Do not discard a used battery in the garbage or a public landfill. Please comply with the regulations set up by your local hazardous waste management agency to dispose of your used battery properly.

  • Page 73: Chapter 6 Advanced Chassis Setup

    Chapter 6: Advanced Chassis Setup Chapter 6 Advanced Chassis Setup This chapter covers the steps required to install components and perform mainte- nance on the SC813MTQ chassis. For component installation, follow the steps in the order given to eliminate the most common problems encountered. If some steps are unnecessary, skip ahead to the step that follows.

  • Page 74: Control Panel

    UPER ERVER 5018R-M/5018R-MR User's Manual Figure 6-1. Chassis Front and Rear Views USB Ports COM2 Port Control Panel SATA Drives (4) Power Supply* PCI Expansion Slot I/O Ports *Note: the 5018R-MR features redundant power supplies (two power supply mod- ules). Control Panel The control panel (located on the front of the chassis) must be connected to the JF1 connector on the serverboard to provide you with system control buttons and...

  • Page 75: System Fans

    System Fan Failure If a fan fails, you will need to have it replaced with the same type. Contact your vendor or Supermicro for information on replacement fans. Replacing a System Fan 1. If necessary, open the chassis while the power is running to determine which fan requires changing.

  • Page 76: Drive Bay Installation/Removal

    UPER ERVER 5018R-M/5018R-MR User's Manual 4. Gently pull upward to remove the failed fan from the housing. 5. Place the new fan into the vacant space in the housing. Make sure that the arrows on the side of the fan (indicating air direction) point in the same direc- tion as the arrows on the other fans.

  • Page 77: Sata Drive Installation

    Chapter 6: Advanced Chassis Setup SATA Drive Installation Mounting a Drive in a Drive Carrier The SATA drives are mounted in drive carriers to simplify their installation and removal from the chassis. These carriers also help promote proper airflow for the system.
  • Page 78 Figure 6-4. Mounting a Drive in a Carrier Figure 6-5. Removing a Drive from the Server Note: Enterprise level hard disk drives are recommended for use in Supermicro chassis and servers. For information on recommended HDDs, visit the Supermicro Web site...
  • Page 79 Chapter 6: Advanced Chassis Setup DVD-ROM Drive Installation The top cover of the chassis must be opened to gain full access to the DVD-ROM drive bay. The 5018R-M/5018R-MR accomodates only slim DVD-ROM drives. Side mounting brackets are needed to mount a slim DVD-ROM drive into the 5018R- M/5018R-MR server.

  • Page 80: Power Supply

    ERVER 5018R-M/5018R-MR User's Manual Power Supply The SuperServer 5018R-M has a single 350 watt power supply. The SuperServer 5018R-MR has a 400 watt redundant power supply consisting of two power modules. These power supplies have the capability of operating at 100 - 240 input volts.
  • Page 81 The PWR Fail LED will illuminate and remain on until the failed unit has been replaced. Replacement units can be ordered directly from Supermicro. The power supply units have a hot-swap capability, meaning you can replace the failed unit without powering down the system.
  • Page 82 UPER ERVER 5018R-M/5018R-MR User's Manual Notes 6-10...

  • Page 83: Chapter 7 Bios

    When an option is selected in the left frame, it is highlighted in white. Often a text message will accompany it. Note: the AMI BIOS has default text messages built in. Supermicro retains the option to include, omit, or change any of these text messages.

  • Page 84: How To Start The Setup Utility

    Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential dam- ages arising from a BIOS update. If you have to update the BIOS, do not shut down or reset the system while the BIOS is updating.
  • Page 85 Day MM/DD/YYYY format. The time is entered in HH:MM:SS format. Note: The time is in the 24-hour format. For example, 5:30 P.M. appears as 17:30:00. Supermicro X10SRI-F BIOS Version: This item displays the version of the BIOS ROM used in the system.

  • Page 86: Advanced Setup Configurations

    UPER ERVER 5018R-M/5018R-MR User's Manual Advanced Setup Configurations Use the arrow keys to select Advanced setup and press <Enter> to access the submenu items: Warning: Take Caution when changing the Advanced settings. An incorrect value, a very high DRAM frequency or an incorrect BIOS timing setting may cause the system to malfunction.

  • Page 87: Power Configuration

    Chapter 7: BIOS Wait For 'F1' If Error Select Enabled to force the system to wait until the 'F1' key is pressed if an error occurs. The options are Disabled and Enabled. INT19 (Interrupt 19) Trap Response Interrupt 19 is the software interrupt that handles the boot disk function. When this item is set to Immediate, the ROM BIOS of the host adaptors will "capture"...

  • Page 88: Cpu Configuration

    UPER ERVER 5018R-M/5018R-MR User's Manual Restore on AC Power Loss Use this feature to set the power state after a power outage. Select Power-Off for the system power to remain off after a power loss. Select Power-On for the system power to be turned on after a power loss.
  • Page 89 Chapter 7: BIOS Hyper-Threading (ALL) Select Enable to use Intel Hyper-Threading Technology to enhance CPU perfor- mance. The options are Enable and Disable. Execute Disable Bit (Available if supported by the OS & the CPU) Set to Enabled for Execute Disable Bit support which will allow the processor to designate areas in the system memory where an application code can execute and where it cannot, thus preventing a worm or a virus from flooding illegal codes to over- whelm the processor or damaging the system during a virus attack.

  • Page 90: Advanced Power Management Configuration

    UPER ERVER 5018R-M/5018R-MR User's Manual DCU (Data Cache Unit) Mode Use this item to set the DCU data-prefecting mode. The options are 32KB 8Way Without ECC and 16KB 4Way With ECC. Direct Cache Access (DCA) Select Enable to use Intel DCA (Direct Cache Access) Technology to maximize ef- ficiency in memory data transferring and accessing.

  • Page 91: Cpu P State Control

    Chapter 7: BIOS Config TDP Select Enable to allow the user to configure the Thermal Design Power (TDP) settings for the system. The TDP refers to the maximum amount of power allowed for running "real applications" without triggering an overheating event. The options are Disable and Enable.
  • Page 92 UPER ERVER 5018R-M/5018R-MR User's Manual Enhanced Halt State (C1E) Select Enabled to enable "Enhanced Halt State" support, which will significantly reduce the CPU's power consumption by minimizing CPU's clock cycles and voltage use during a "Halt State." The options are Disable and Enable. CPU T State Control ACPI (Advanced Configuration Power Interface) T-States If this item is set to Enable, CPU throttling will be supported by the operating...
  • Page 93 Chapter 7: BIOS P0 TotalTimeThreshold High The hardware switching mechanism will disable the performance setting when the total P0 time is greater than this threshold. Enter a numeric value.  Socket RAPL (Running Average Power Limit) Config FAST_RAPL_NSTRIKE_PL2_DUTY_CYCLE This feature displays the value of the item above within the range between 25 (10%) and 64 (25%).

  • Page 94: Chipset Configuration

    UPER ERVER 5018R-M/5018R-MR User's Manual Chipset Configuration North Bridge This feature allows the user to configure the settings for the Intel North Bridge. IIO Configuration EV DFX (Device Function On-Hide) Feature When this feature is set to Enable, the EV_DFX Lock Bits that are located on a processor will always remain clear during electric tuning.
  • Page 95 Chapter 7: BIOS Relaxed Ordering Select Enable to enable Relaxed Ordering support which will allow certain trans- actions to violate the strict-ordering rules of PCI and to be completed prior to other transactions that have already been enqueued. The options are Disable and Enable.

  • Page 96: Memory Configuration

    UPER ERVER 5018R-M/5018R-MR User's Manual • QPI Global MMIO High Base/Limit • QPI PCIe Configuration Base/Size Link Speed Mode Use this item to select the data transfer speed for QPI Link connections. The options are Fast and Slow. Link Frequency Select Use this item to select the desired frequency for QPI Link connections.
  • Page 97 Chapter 7: BIOS ECC Support Select Enable to enable Error Checking & Correction (ECC) support for onboard memory modules. The options are Auto, Enable and Disable. Enhanced Log Parsing Select Enable to enable Error Checking & Correction (ECC) support for onboard memory modules.

  • Page 98: Dimm Information

    UPER ERVER 5018R-M/5018R-MR User's Manual DIMM Information This item displays the status of a DIMM module specified. • DIMMA1 • DIMMA2 • DIMMB1 • DIMMB2 • DIMMC1 • DIMMC2 • DIMMD1 • DIMMD2 Memory RAS (Reliability_Availability_Serviceability) Configuration Use this submenu to configure the following Memory RAS settings. RAS Mode Select Enable to enable RAS support to enhance reliability, availability and ser- viceability of onboard memory modules.

  • Page 99: South Bridge

    Chapter 7: BIOS Patrol Scrub Interval Use this item to specify the number of hours (between 0 to 24) required for the system to complete a full patrol scrubbing. Enter 0 for patrol scrubbing to be performed automatically. The default setting is 24. Demand Scrub Demand Scrubbing is a process that allows the CPU to correct correctable memory errors found in a memory module.

  • Page 100: Sata Configuration

    UPER ERVER 5018R-M/5018R-MR User's Manual USB Mass Storage Driver Support Select Enabled for USB mass storage device support. The options are Disabled and Enabled. Port 60/64 Emulation Select Enabled for I/O port 60h/64h emulation support, which in turn, will provide complete legacy USB keyboard support for the operating systems that do not sup- port legacy USB devices.
  • Page 101 Chapter 7: BIOS SATA Controller This item enables or disables the onboard SATA controller supported by the Intel PCH chip. The options are Enabled and Disabled. Configure SATA as Select IDE to configure a SATA drive specified by the user as an IDE drive. Select AHCI to configure a SATA drive specified by the user as an AHCI drive.
  • Page 102 UPER ERVER 5018R-M/5018R-MR User's Manual Port 0 ~ Port 5 SATA Device Type Use this item to specify if the SATA port specified by the user should be con- nected to a Solid State drive or a Hard Disk Drive. The options are Hard Disk Drive and Solid State Drive.
  • Page 103 Chapter 7: BIOS Port 0 ~ Port 5 Hot Plug This feature designates this port for hot plugging. Set this item to Enabled for hot-plugging support, which will allow the user to replace a SATA drive without shutting down the system. The options are Enabled and Disabled. Port 0 ~ Port 5 Spin Up Device On an edge detect from 0 to 1, set this item to allow the PCH to start a COMRE- SET initialization to the device.
  • Page 104 UPER ERVER 5018R-M/5018R-MR User's Manual • Software Preserve Support sSATA Port 0~ Port 3 Select Enabled to enable an sSATA port specified by the user. The options are Disabled and Enabled. sSATA Port 0 ~ Port 3 Hot Plug This feature designates the sSATA port specified for hot plugging. Set this item to Enabled for hot-plugging support, which will allow the user to replace an sSATA disk drive without shutting down the system.
  • Page 105 Chapter 7: BIOS sSATA RAID Option ROM/UEFI Driver Select EFI to load the EFI driver for system boot. Select Legacy to load a legacy driver for system boot. The options are Disabled, EFI, and Legacy. sSATA Port 0~ Port 3 This item displays the information detected on the installed sSATA drives on the particular sSATA port.
  • Page 106 UPER ERVER 5018R-M/5018R-MR User's Manual • ME Firmware Status #2 • Current State • Error Code PCIe/PCI/PnP Configuration The following PCI information will be displayed: • PCI Bus Driver Version • PCI Latency Timer VGA Palette Snoop Select Enabled to support VGA palette register snooping which will allow a PCI card that does not contain its own VGA color palette to examine a video card pal- ette and mimic it for proper color display.
  • Page 107 Chapter 7: BIOS ASPM Support Use this item to set the Active State Power Management (ASPM) level for a PCI-E device. Select Auto for the system BIOS to automatically set the ASPM level based on the system configuration. Select Disabled to disable ASPM support. The options are Disabled and Auto.

  • Page 108: Super Io Configuration

    UPER ERVER 5018R-M/5018R-MR User's Manual Network Stack Select Enabled to enable PXE (Preboot Execution Environment) or UEFI (Unified Extensible Firmware Interface) for network stack support. The options are Enabled and Disabled. Super IO Configuration  Super IO Chip AST2400  Serial Port 1 Configuration/Serial Port 2 Configuration Serial Port 1/Serial Port 2 Select Enabled to enable the onboard serial port specified by the user.
  • Page 109 Chapter 7: BIOS COM1 Console Redirection Terminal Type This feature allows the user to select the target terminal emulation type for Con- sole Redirection. Select VT100 to use the ASCII Character set. Select VT100+ to add color and function key support. Select ANSI to use the Extended ASCII Char- acter Set.
  • Page 110 UPER ERVER 5018R-M/5018R-MR User's Manual Recorder Mode Select Enabled to capture the data displayed on a terminal and send it as text messages to a remote server. The options are Disabled and Enabled. Resolution 100x31 Select Enabled for extended-terminal resolution support. The options are Dis- abled and Enabled.
  • Page 111 Chapter 7: BIOS Bits Per second Use this feature to set the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines.
  • Page 112 UPER ERVER 5018R-M/5018R-MR User's Manual Legacy OS Redirection Resolution Use this feature to select the number of rows and columns used in Console Redirection for legacy OS support. The options are 80x24 and 80x25. Putty KeyPad This feature selects Function Keys and KeyPad settings for Putty, which is a terminal emulator designed for the Windows OS.
  • Page 113 Chapter 7: BIOS Bits Per Second This item sets the transmission speed for a serial port used in Console Redirec- tion. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines. The options are 9600, 19200, 57600, and 115200 (bits per second).
  • Page 114 UPER ERVER 5018R-M/5018R-MR User's Manual WHEA Support Select Enabled to support the Windows Hardware Error Architecture (WHEA) plat- form and provide a common infrastructure for the system to handle hardware errors within the Windows OS environment to reduce system crashes and to enhance system recovery and health monitoring.

  • Page 115: Event Logs

    Chapter 7: BIOS Event Logs Use this feature to configure Event Log settings. Change SMBIOS Event Log Settings  This feature allows the user to configure SMBIOS Event settings. Enabling/Disabling Options SMBIOS Event Log Select Enabled to enable SMBIOS (System Management BIOS) Event Logging during system boot.
  • Page 116 UPER ERVER 5018R-M/5018R-MR User's Manual Erasing Settings Erase Event Log Select Enabled to erase all error events in the SMBIOS (System Management BIOS) log before an event logging is initialized at bootup. The options are No and Yes. When Log is Full Select Erase Immediately to immediately erase all errors in the SMBIOS event log when the event log is full.

  • Page 117: Ipmi

    Chapter 7: BIOS IPMI Use this feature to configure Intelligent Platform Management Interface (IPMI) settings. IPMI Firmware Revision This item indicates the IPMI firmware revision used in your system. IPMI Status This item indicates the status of the IPMI firmware installed in your system. System Event Log ...

  • Page 118: Bmc Network Configuration

    UPER ERVER 5018R-M/5018R-MR User's Manual When SEL is Full This feature allows the user to determine what the BIOS should do when the sys- tem event log is full. Select Erase Immediately to erase all events in the log when the system event log is full.
  • Page 119 Chapter 7: BIOS Gateway IP Address This item displays the Gateway IP address for this computer. This should be in decimal and in dotted quad form (i.e., 192.168.10.253). 7-37...

  • Page 120: Security Settings

    UPER ERVER 5018R-M/5018R-MR User's Manual Security Settings This menu allows the user to configure the following security settings for the system. Password Check Select Setup for the system to check for a password at Setup. Select Always for the system to check for a password at bootup or upon entering the BIOS Setup utility. The options are Setup and Always.

  • Page 121: Boot Settings

    Chapter 7: BIOS Boot Settings Use this feature to configure Boot Settings: Setup Prompt Timeout Use this item to indicate the length of time (the number of seconds) for the BIOS to wait before rebooting the system when the setup activation key is pressed. Enter the value of 65535 (0xFFFF) for the BIOS to wait indefinitely.
  • Page 122 UPER ERVER 5018R-M/5018R-MR User's Manual • Dual Boot Order #8 • Dual Boot Order #9 • Dual Boot Order #10 • Dual Boot Order #11 • Dual Boot Order #12 • Dual Boot Order #13 • Dual Boot Order #14 •...

  • Page 123: Save & Exit

    Chapter 7: BIOS  Network Drive BBS Priorities • Boot Order #1 - This feature sets the system boot order of detected devices. The options are [the list of detected boot device(s)] and Disabled.  UEFI Application Boot Priorities • Boot Order # - This feature sets the system boot order of detected devices.
  • Page 124 UPER ERVER 5018R-M/5018R-MR User's Manual Save Options Save Changes When you have completed the system configuration changes, select this option to save all changes made. This will not reset (reboot) the system. Discard Changes Select this option and press <Enter> to discard all the changes and return to the AMI BIOS Utility Program.

  • Page 125: Appendix A Bios Error Beep Codes

    Appendix A: POST Error Beep Codes Appendix A BIOS Error Beep Codes During the POST (Power-On Self-Test) routines, which are performed each time the system is powered on, errors may occur. Non-fatal errors are those which, in most cases, allow the system to continue with bootup.
  • Page 126 UPER ERVER 5018R-M/5018R-MR User's Manual Notes...

  • Page 127: Appendix B System Specifications

    Appendix B: System Specifications Appendix B System Specifications Processors Single Intel® Xeon® processor E5-2600 v3/v4 or E5-1600 v3/v4 family in an LGA2011 socket Note: Please refer to our web site for a complete listing of supported processors. Chipset Intel C612 BIOS 128 Mb SPI AMI®...

  • Page 128: System Cooling

    UPER ERVER 5018R-M/5018R-MR User's Manual Chassis SC813MTQ Form Factor: 1U rackmount Dimensions: (WxHxD) 17.2 x 1.7 x 19.85 in. (437 x 43 x 504 mm) Weight Gross Weight: 30.4 lbs. (13.8 kg.) System Cooling Four 4-cm high performance fans System Input Requirements AC Input Voltage: 100-240V AC auto-range Rated Input Current: 4.2A (100V) to 1.8A (240V) Rated Input Frequency: 50 to 60 Hz...

  • Page 129: Regulatory Compliance

    See www.dtsc.ca.gov/hazardouswaste/perchlorate” Disclaimer (continued from front) The products sold by Supermicro are not intended for and will not be used in life support systems, medical equipment, nuclear facilities or systems, aircraft, aircraft devices, aircraft/emergency com- munication devices or other critical systems whose failure to perform be reasonably expected to result in significant injury or loss of life or catastrophic property damage.
  • Page 130 UPER ERVER 5018R-M/5018R-MR User's Manual Notes...

This manual is also suitable for:

Superserver 5018r-mr

Table of Contents
