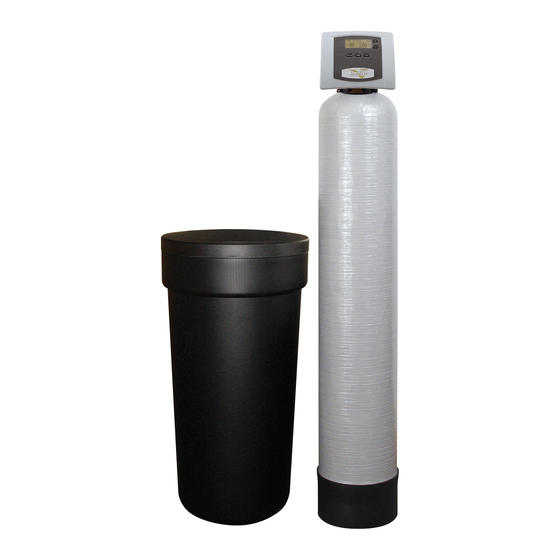

Viqua AWP-SE1 Series Owner's Manual

Water conditioners

Hide thumbs Also See for AWP-SE1 Series:

Owner's manual (26 pages)

Table Of Contents

Quick Links

Owner's Manual

Models:

AWP-SE1 and AWP-SE2 Series

Water Conditioners

425 Clair Rd. W, Guelph, Ontario, Canada N1L 1R1

t. (+1) 519.763.1032 • tf. 1.800.265.7246 (US and Canada only)

t. +31 73 747 0144 (Europe only) • f. (+1) 519.763.5069

e-mail: info@viqua.com

www.viqua.com

520128_RevH

Table of Contents

Need help?

Do you have a question about the AWP-SE1 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Viqua AWP-SE1 Series

Page 1 AWP-SE1 and AWP-SE2 Series Water Conditioners 425 Clair Rd. W, Guelph, Ontario, Canada N1L 1R1 t. (+1) 519.763.1032 • tf. 1.800.265.7246 (US and Canada only) t. +31 73 747 0144 (Europe only) • f. (+1) 519.763.5069 e-mail: info@viqua.com www.viqua.com 520128_RevH...
Page 2: Table Of Contents
Your VIQUA Impression series water conditioners and backwashing filters are precision built high quality products. These units will deliver conditioned water for many years to come, when installed and operated properly. Please study this manual carefully and understand the cautions and notes before installing.
Page 3: General Information
General Information Section 1 General Information 1.1 Pre-installation Instructions for Dealers The manufacturer has preset the water treatment unit’s sequence of cycles, cycle times, salt dose, exchange capacity and salt dose refill time. The dealer should read this page and guide the installer regarding hardness, day override, and time of regeneration, before installation.
Page 4 General Information 3. Diagnostic Position: The inlet handle points toward the control valve and the outlet handle points to the center of bypass valve. Untreated supply water is allowed to flow to the system and to the building, while not allowing water to exit from the.
Page 5: Installation
• Avoid inhalation of media dust or exposure to eyes and skin. Read Safety Data Sheets carefully. Safety Data Sheets are available at www.viqua.com. Disposal of this product, its solutions and/or byproducts should at all times comply with the requirements of environmental protection and waste disposal legislation and regional laws.
Page 6 Installation 5. Inlet/Outlet Plumbing: Be sure to install Bypass Valve onto main control valve before beginning plumbing. Make provisions to bypass outside hydrant and cold hard water lines at this time. Install an inlet shutoff valve and plumb to the unit’s bypass valve inlet located at the right rear as you face the unit.
Page 7: Operation
Operation Section 3 Operation 3.1 Programming Procedures 3.1.1 Set Time of Day Time of day should only need to be set after extended power outages or when daylight saving time begins or ends. If an extended power outage occurs, the time of day will flash on and off indicating that the time should be reset. Procedure: RETURN TO GENERAL...
Page 8 Operation • Regeneration hours: Press or press • Set the regeneration minutes using + or – buttons. • Turn the alarm OFF or ON using + or - buttons. NEXT REGEN return to the previous step. • Press • Press to exit installer programming.
Page 9 Operation 3.2.3 Manual Regeneration Sometimes there is a need to regenerate before the control valve calls for it. This may be needed if a period of heavy water use is anticipated or when the system has been operated without salt. 1.
Page 10 Allow water to run until clear to rid pipes of debris which may have occurred during installation. 3.3.1 Softeners System regeneration sequence will flow in the following order. Note: If the following order changes then refer to the “Dealer Manual” or contact VIQUA). 1. BACKWASH 2. REGENERANT DRAW AND SLOW RINSE 3.
Page 11 Operation C A U T I O N If water flows too rapidly there will be a loss of media to the drain. 3. When the water is flowing steadily to the drain without the presence of air, slowly open the inlet valve. Restore power and momentarily press the button to advance the control to the “REGENERANT DRAW”...
Page 12: Troubleshooting
Troubleshooting • RAPID RINSE POSITION: • BRINE TANK FILL Chlorine generator is off. Raw POSITION: Water enters water enters control head and control head to self clean flows down through the injector while flowing back to Zeolite mineral, rinsing any refill the brine tank.
Page 13 Troubleshooting Symptom Possible Cause Possible Solution Motor not operating • Replace motors No power at outlet • Repair outlet or use working outlet Defective transformer • Replace transformer Valve stalled in regeneration • Replace PC board Defective PC board • Replace gear or drive cap assembly Broken drive gear or drive cap assembly Broken piston retainer...
Page 14: Replacement Parts
Replacement Parts Section 5 Replacement Parts 5.1 Front Cover and Drive Assembly Note: Battery Location Item Description Part Number Quantity Black cover CV3540S-A Grey cover CV3540-WS-A Motor CV3107-1 Drive bracket & spring clip CV3106-1 PC board, CC CV3554WS Drive gear, 12 x 36 CV3110 Drive gear cover CV3109...
Page 15 Replacement Parts 5.2 Piston Assembly Item Description Part Number Quantity 1” spacer stack assembly CV3005 1.25” spacer stack assembly CV3430 Drive cap assembly CV3004 O-ring 228 CV3153 1” piston assembly down-flow CV3011 1” piston assembly up-flow CV3011-01 1.25” piston assembly down-flow CV3407 Regenerant piston CV3174...
Page 16 Replacement Parts 5.3 Bypass Valve Assembly 9 8 9 Item Description Part Number Quantity Nut, 1” quick connect CV3151 Split ring CV3150 O-ring 215 CV3105 Bypass rotor, 1” CV3145 Bypass cap CV3146 Bypass handle CV3147 Bypass rotor seal retainer CV3148 O-ring 135 CV3152 O-ring 112...
Page 17 Replacement Parts 5.4 Injector Assembly Item Description Part Number Quantity Injector cap CV3176 O-ring 135 CV3152 Injector screen CV3177 Injector assembly plug CV3010-1Z A injector assembly, BLACK CV3010-1A B injector assembly, BROWN CV3010-1B C injector assembly, VIOLET CV3010-1C D injector assembly, RED CV3010-1D E injector assembly, WHITE CV3010-1E...
Page 18 Replacement Parts 5.5 Chlorine Generator Assembly Item Description Part Number Quantity Chlorinator CV3395 O-ring 019 CV3163 Locking clip CH4615 Refill port plug assembly CV3195-01...
Page 19 Replacement Parts 5.6 Drain Line Assembly 3/4” Item Description Part Number Quantity Elbow locking clip CH4615 OPTIONAL insert, 5/8” tube CPKP10TS8-BULK OPTIONAL nut, 3/4”drain elbow CV3192 Drain elbow, 3/4” NPT with O-ring CV3158-02 O-ring 019 CV3163 DLFC retainer assembly CV3159-01 0.7 DLFC for 3/4”...
Page 20 Replacement Parts 5.7 Water Meter and Meter Plug Item Description Part Number Quantity Nut, 1“QC CV3151 Meter assembly, includes items 3 and 4 CV3003 Turbine assembly CV3118-01 O-ring 215 CV3105 Meter plug assembly CV3003-01 OPTIONAL mixing valve CV3013...
Page 21 Replacement Parts 5.8 Safety Float Assembly Item Description Part Number Quantity 4” x 32” brine well (18” x 36” BT) CH1030-32 4” x 34.5” brine well (18” x 40” BT) CH1030-34.5 2 piece overflow set CH1018 474 air check assembly, 1/2” x 48” CH4500-48 474 float assembly, 32”...
Page 22 Replacement Parts 5.9 Safety Float Brine Elbow Assembly Item Description Part Number Quantity 474 0.5 gpm flow control CH4655 O-ring 019 CH3163 3/8” elbow cap, Parker fitting CV4144 1/2” elbow cap CH4612 Elbow locking clip CH4615 Safety float brine elbow assembly CV3330-A...
Page 23 Replacement Parts 5.10 Installation Fitting Assemblies (Sold separately) Figure 7 1” PVC Male NPT Elbow Assembly (CV3007) Figure 8 3/4” and 1” PVC Solvent Elbow Assembly (CV3007- Item Description Part Number Quantity Item Description Part Number Quantity Nut, 1” quick connect CV3151 Nut, 1”...
Page 24 Replacement Parts Figure 11 1” PVC MALE NPT ASSEMBLY (CV3007-04) Figure 12 1/4” PLASTIC MALE ASSEMBLY (CV3007-05) Item Description Part Number Quantity Item Description Part Number Quantity Nut, 1” quick connect CV3151 Nut, 1” quick connect CV3151 Split ring CV3150 Split ring CV3150 O-ring 215...
Page 25 Replacement Parts 5.11 Service Wrench - CV3193-01 Although no tools are necessary to assemble or disassemble the valve, the Service Wrench, (shown in various positions on the valve) is available to aid in assembly or disassembly.
Page 26: Specifications
Specifications Section 6 Specifications...
Page 27: Quick Reference Guide
Quick Reference Guide Section 7 Quick Reference Guide General Operation Manual Regeneration Note: For softeners, if brine tank does not contain salt, fill with salt and When the system is operating, one of the following four displays wait at least two hours before regeneration. If you need to initiate a will be shown: manual regeneration, either immediately, or the same night at the pre programmed time, for regeneration (typically 2:00 AM), complete the...
Page 28: Manufacturer's Warranty
The warranty does not cover change in water test, mis-application of media, use of mineral cleaners in brine tank including salt additives, lack of maintenance, or any other acts of God. VIQUA will not be responsible for any labour charges to the customer incurred by the dealer or any freight charges to or from the customer.
Page 29 425 Clair Rd. W, Guelph, Ontario, Canada N1L 1R1 t. (+1) 519.763.1032 • tf. (+1) 800.265.7246 (US and Canada only) t. (+31) 73 747 0144 (Europe only) • f. (+1) 519.763.5069 e-mail: info@viqua.com www.viqua.com...
