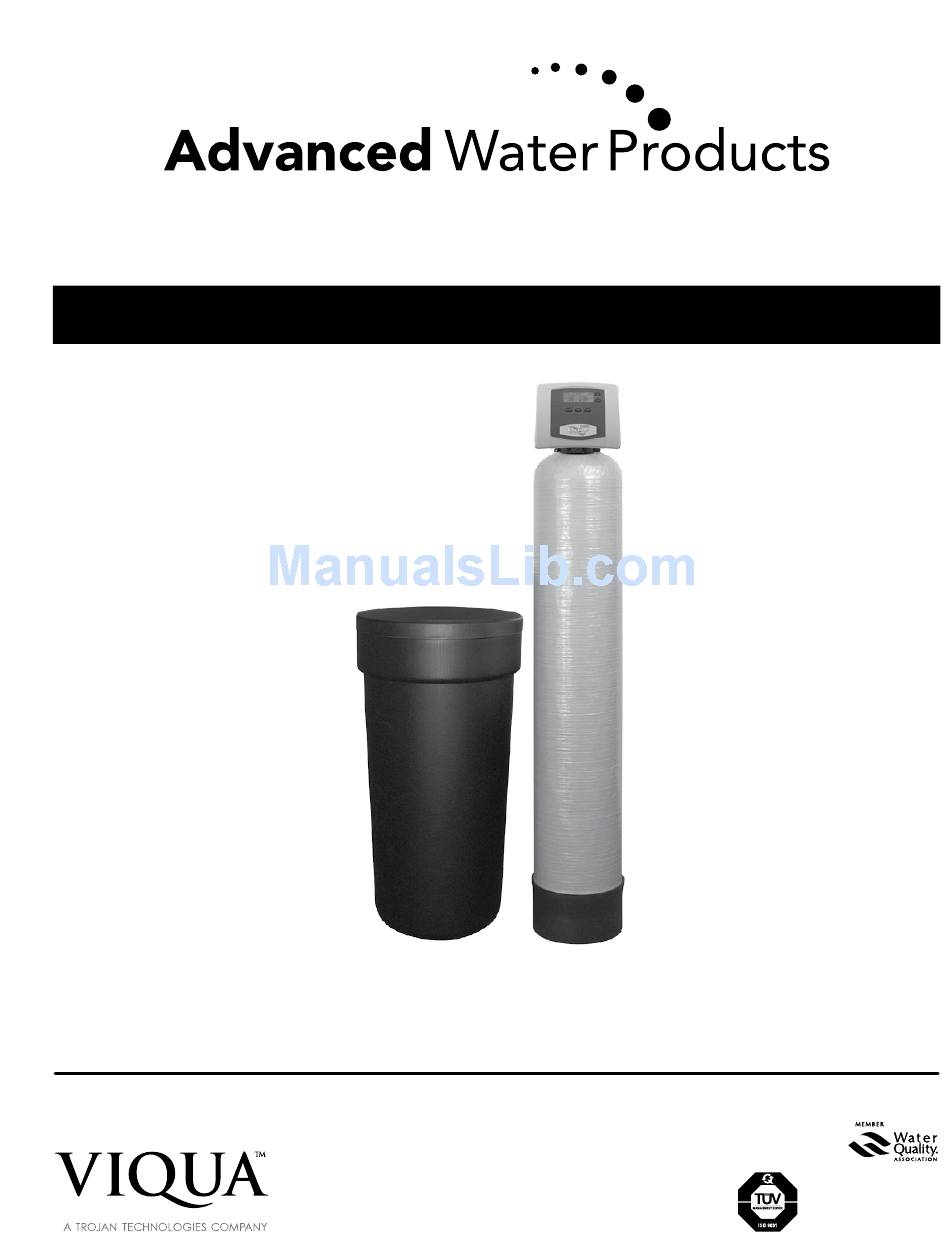

Installation, Operation and Maintenance
Owner's Manual
AWP-SE1 & AWP-SE2 Series
Water Conditioners
Assembled in Canada by:
425 Clair Road West, Guelph, ON N1L 1R1 Canada
t. 519 763 1032 t.f. 1 800 265 7246 f. 519 763 5069
EPA# 57987-CN-001
e. info@viqua.com i. www.viqua.com
January 2010
P/N 520128

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AWP-SE1 series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Viqua AWP-SE1 series

Summary of Contents for Viqua AWP-SE1 series

  • Page 1 AWP-SE1 & AWP-SE2 Series Water Conditioners Assembled in Canada by: 425 Clair Road West, Guelph, ON N1L 1R1 Canada t. 519 763 1032 t.f. 1 800 265 7246 f. 519 763 5069 EPA# 57987-CN-001 e. info@viqua.com i. www.viqua.com January 2010 P/N 520128...

  • Page 2: Table Of Contents

    Please study this manual carefully and understand the cautions and notes before installing. This manual should be kept for future reference. If you have any questions regarding your water conditioner, contact your local dealer or VIQUA at the following: VIQUA - A Trojan Tehnologies Company 425 Clair Road West, Guelph, ON N1L 1R1 Canada t.

  • Page 3: Pre-Installation Instructions For Dealers

    Pre-installation instructions for Dealers: The manufacturer has preset the water treatment unit’s sequence of cycles, cycle times, salt dose, exchange capacity and salt dose refill time. the dealer should read this page and guide the installer regarding hardness, day override, and time of regeneration, before installation: For the installer, the following must be used: •...
  • Page 4 1. Normal Operation Position: The inlet and outlet handles point in the direction of flow indicated by the engraved arrows on the control valve. Water flows through the control valve for normal operation of a water softener or filter. During the regeneration cycle this position provides regeneration water to the unit, while also providing untreated water to the distribution system (figure 1).

  • Page 5: Installation

    installation: GENErAL iNSTALLATiON & SErViCE WArNiNGS: The control valve, fittings and/or bypass are designed to accommodate minor plumbing misalignments. There is a small amount of “give” to properly connect the piping but the water softener is not designed to support the weight of the plumbing.

  • Page 6: Installation

    5. Be sure to install Bypass Valve onto main control valve before beginning plumbing. Make provisions to bypass outside hydrant and cold hard water lines at this time. Install an inlet shutoff valve and plumb to the unit’s bypass valve inlet located at the right rear as you face the unit. There are a variety of installation fittings available.

  • Page 7: Programming Procedures

    Programming Procedures: 1. Set Time of Day: Time of day should only need to be set after extended power outages or when daylight saving time begins or ends. If an extended power outage occurs, the time of day will flash on and off indicating that the time should be reset.

  • Page 8: Operating Displays And Instructions

    STEP 4 – regeneration hour: The manufacturer has factory set 2:00 A.M. as the default. This is the hour of day for regeneration and can be reset by using + or – buttons. “AM/PM” toggles after 12. The default time is 2:00 a.m. (recommended for a normal household). Press to go to step 5.
  • Page 9 2. regeneration Mode: Typically a system is set to regenerate at a time of no water usage. If there is a demand for water when the system is regenerating, untreated water will be delivered. When the system begins to regenerate, the display will change to include information about the step of the regeneration process and the time remaining for that step to be regeneration Mode Display completed.

  • Page 10: Start-Up Instructions

    • Allow water to run until clear to rid pipes of debris which may have occurred during installation. System regeneration sequence is in the following order: (If it is desired to change this sequence please refer to the “Dealer Manual” or contact VIQUA) 1) BACKWASh...
  • Page 11 CAuTiON: if water flows too rapidly there will be a loss of media to the drain. 3. When the water is flowing steadily to the drain without the presence of air, slowly open the inlet valve. Restore power and momentarily press the button to advance the control to the “rEGENErANT regen DrAW”...

  • Page 12: Water Conditioner Flow Diagrams

    Water Conditioner Flow Diagrams: LEGEND: RESIN BED GRAVEL BED SALT (Zeolite) 1. SErViCE POSiTiON: Raw water enters control 2. Raw water enters control head and flows into head and flows down through the Zeolite mineral, lower distributor upward through mineral bed and removing hardness and iron (neutralizing acidic out to drain, lifting and cleaning turbid particles water conditions on SE1 models).
  • Page 13 Water Conditioner Flow Diagrams: LEGEND: RESIN BED GRAVEL BED SALT (Zeolite) 5. rAPiD riNSE POSiTiON: Chlorine generator is 6. BriNE TANK FiLL POSiTiON: Water enters off. Raw water enters control head and flows down control head to self clean injector while flowing through the Zeolite mineral, rinsing any excess back to refill the brine tank.

  • Page 14: Troubleshooting Guide

    Troubleshooting Guide: SYMPTOM POSSiBLE CAuSES SOLuTiONS Transformer unplugged • reconnect transformer No power at outlet • repair or use working outlet Timer does not display “TiME OF DAY” Defective transformer • replace transformer Defective PC board • replace PC board •...

  • Page 15: Warranty

    God. VIQUA will not be responsible for any labour charges to the customer incurred by the dealer or any freight charges to or from the customer. The above provisions of the guarantee will be valid as long as the unit is connected with identical properties and conditions of the original installation and owned by the original owner.

  • Page 16: Replacement Parts

    replacement Parts: FrONT COVEr AND DriVE ASSEMBLY item No. Part No. Description Qty. CV3540S-A black cover CV3540-WS-A grey cover CV3107-1 motor CV3106-1 drive bracket & spring clip CV3554WS PC board, CC CV3110 drive gear, 12 x 36 CV3109 drive gear cover CV3002CC drive assembly, CC CV3526...
  • Page 17 replacement Parts: PiSTON ASSEMBLY item No. Part No. Description Qty. CV3005 1“ spacer stack assembly CV3430 1.25“ spacer stack assembly CV3004 drive cap assembly CV3153 o-ring 228 CV3011 1“ piston assembly down-flow CV3011-01 1“ piston assembly up-flow CV3407 1.25“ piston assembly down-flow CV3174 regenerant piston CV3180...
  • Page 18 replacement Parts: BYPASS VALVE ASSEMBLY item No. Part No. Description Qty. CV3151 nut, 1“ quick connect CV3150 split ring CV3105 o-ring 215 CV3145 bypass rotor, 1“ CV3146 bypass cap CV3147 bypass handle CV3148 bypass rotor seal retainer CV3152 o-ring 135 CV3155 o-ring 112 CV3156...
  • Page 19 replacement Parts: iNJECTOr ASSEMBLY item No. Part No. Description Qty. CV3176 injector cap CV3152 o-ring 135 CV3177 injector screen CV3010-1z injector assembly plug CV3010-1A A injector assembly, BLACK CV3010-1B B injector assembly, BrOWN CV3010-1C C injector assembly, ViOLET CV3010-1D D injector assembly, rED CV3010-1E E injector assembly, WhiTE CV3010-1F...
  • Page 20 replacement Parts: DrAiN LiNE ASSEMBLY 3/4“ item No. Part No. Description Qty. CH4615 elbow locking clip CPkP10TS8- oPtIoNal insert, 5/8“ tube BULk CV3192 oPtIoNal nut, 3/4“ drain elbow drain elbow, 3/4“ NPT with o-ring CV3158-01 CV3163 o-ring 019 CV3159-01 DLFC retainer assembly 0.7 DLFC for 3/4“...
  • Page 21 replacement Parts: WATEr METEr & METEr PLuG item No. Part No. Description Qty. CV3151 nut, 1“ QC CV3003 meter assembly, includes items 3 & 4 turbine assembly CV3118-01 CV3105 o-ring 215 CV3003-01 meter plug assembly oPtIoNal mixing valve CV3013...

  • Page 22: Replacement Parts

    replacement Parts: SAFETY FLOAT ASSEMBLY item No. Part No. Description Qty. 4“ x 32“ brine well (18“ x 36“ BT) CH1030-32 CH1030-34.5 4“ x 34.5“ brine well (18“ x 40“ BT) CH1018 2 piece overflow set 474 air check assembly, 1/2“ x 48“ CH4500-48 CH4640-32 474 float assembly, 32“...

  • Page 23: Installation Fitting Assemblies

    installation Fitting Assemblies: 1“ PVC MALE NPT ELBOW ASSEMBLY (CV3007) 3/4“ AND 1“ PVC SOLVENT ELBOW ASSEMBLY (CV3007-01) item No. Part No. Description Qty. item No. Part No. Description Qty. CV3151 nut, 1“ quick connect CV3151 nut, 1“ quick connect split ring CV3150 CV3150...
  • Page 24 installation Fitting Assemblies: 1¼“ AND 1½“ BrASS SWEAT ASSEMBLY 1¼“ AND 1½“ PVC SOLVENT ASSEMBLY (CV3007-09) (CV3007-07) item No. Part No. Description Qty. item No. Part No. Description Qty. CV3151 nut, 1“ quick connect CV3151 nut, 1“ quick connect CV3150 split ring CV3150 split ring...

  • Page 25: Specifications

    Specifications:...

  • Page 26: Quick Reference Guide

    Quick reference Guide: General Operation: Manual regeneration: When the system is operating, one of four displays will be shown: Note: For softeners, if brine tank “rEGEN TODAY” AND “TiME OF DAY” WiLL FLASh ALTErNATELY iF A “TiME OF DAY/GPM” , “FLOW rATE” , “CAPACiTY rEMAiNiNG” does not contain salt, fill with salt rEGENErATiON iS ExPECTED TONiGhT.
