LUXOMAT

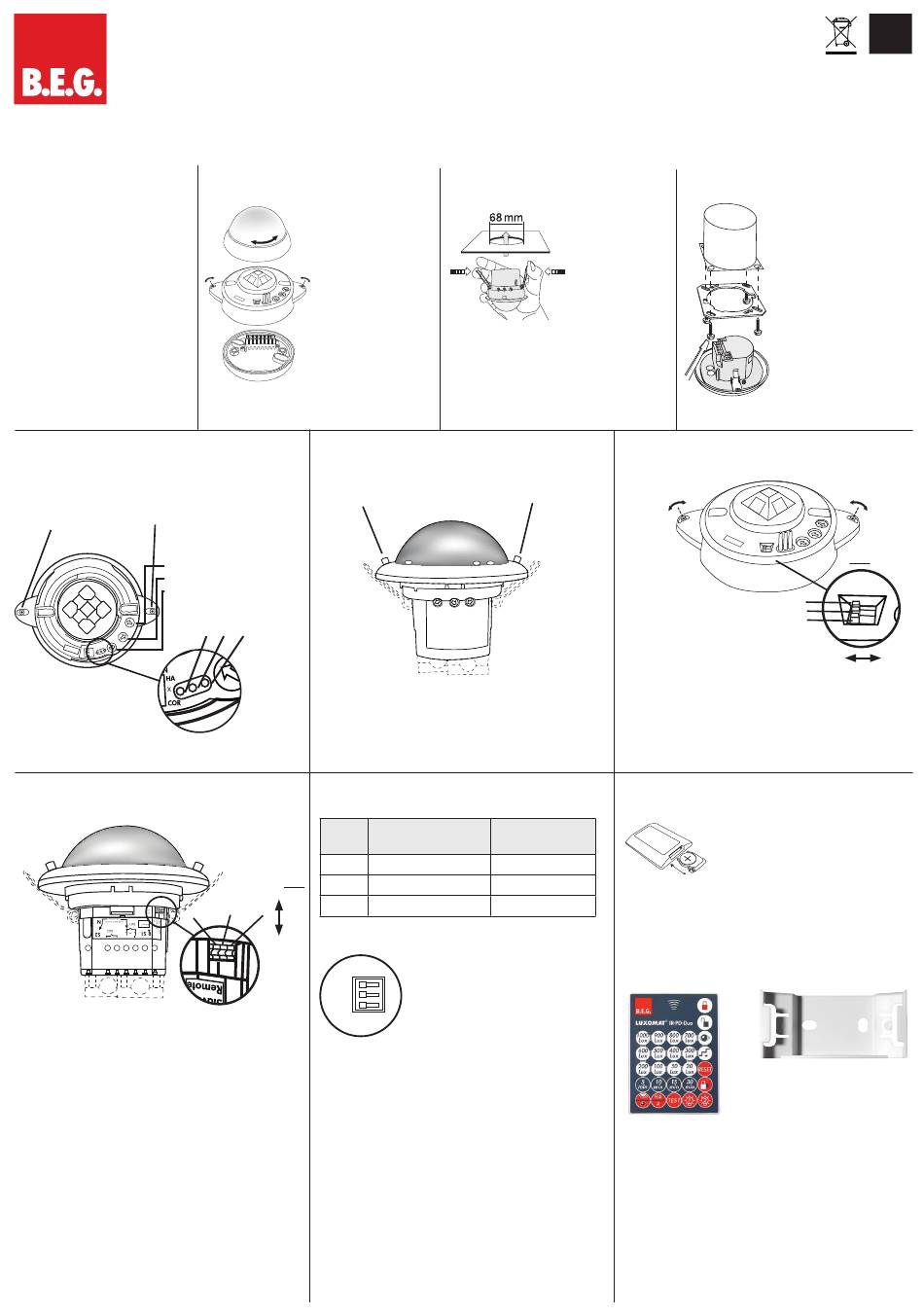

Installation and Operating Instruction for B.E.G. - Occupancy detector PD4-M-2C-DUO-FC/ FM

1. Mounting preparation

Work on the 230 V mains supply
may only be carried out by qualified
professionals or by instructed persons
under the direction and supervision of
qualified skilled electrical personnel
in accordance with electredechnical
regulations.
Disconnect supply before installing!
The device is not suited for safe dis-
connection of the mains supply.
When in Master/Slave mode of
operation, the Master-appliance must
always be installed at the location
where there is least daylight.

3a. Hardware configuration SM

Position light sensor LED's and potentiometers
Light sensor channel 1
Light sensor channel 2
Potentiometer 3 Time channel 1&2
Potentiometer 1 Lux channel 1
Potentiometer 2 Lux channel 2
LED 1 green
LED 2 white
LED 3 red

4b. Position DIP-switches FM and FC

DIP 1
FA/SA
DIP 2
MIX/DAY
DIP 3
LED ON/OFF
Default: VA, MIX and LED ON
The DIP switch settings are
using the remote control.
overriden
®
2a. Installation of the
LUXOMAT
PD4-M-2C-DUO-SM
®
The detector must be
installed on a solid
and level surface. The
circular cover ring must
be removed prior to as-
sembly. To do this, twist
the lens anticlockwise
through approximately 5°
and lift off.
Having connected up the
wires in accordance with
regulations, secure the
detector with 2 screws.
After installation replace
the lens and lock (turn
clockwise). Mains to be
connected.

3b. Hardware configuration FM and FC

Position light sensor LED's and potentiometers
Light sensor channel 1
1 2 3
40
LED 1 green
LED 2 white
LED 3 red

5. DIP switch functions

DIP-
switch
1
DIP
2
OFF
3
2
1
3
ON
OFF
1
2
DIP
3
PD4-M-2C-DUO
2b. Installation of the
LUXOMAT
PD4-M-2C-DUO-FC
®
Having connected up the cables in accordance
with regulations, the detector is inserted into
the opening as shown in the drawing opposite
and fixed into position with the assistance of the
spring clip.
Light sensor channel 2
1
2 3
1
2
3
Potentiometer 1 Lux channel 1
Potentiometer 2 Time channel 1 & 2
Potentiometer 3 Lux channel 2
ON
OFF
Semi automatic mode
Fully automatic mode
daylight
mixedlight
LED OFF
LED ON
The DIP settings are enabled again by:
ON
• Adjusting the DIP switches when closed
• Reset with test sun setting at the
potentiometers
• Reset when open
2c. Installation of the
LUXOMAT
The detector has
been designed
and developed
specifically for instal-
lation in suspended
ceilings.
A circular opening
of diameter 68 mm
must first of all be
produced in the
ceiling.

4a. Position DIP-switches SM

DIP 1
FA/SA
DIP 2
MIX/DAY
DIP 3
LED ON/OFF
Default: VA, MIX and LED ON
The DIP switch settings are

6. Putting into operation of the remote control

LUXOMAT
IR-PD-DUO
®
Check Battery:
Open battery compartment by pressing the
plastic springs together and removing the
battery-holder.
Caution: Settings with remote control super-
sede the settings by potentiometers.
Option: 92092
IR-PD-DUO
GB
PD4-M-2C-DUO-FM
®
The detector can be installed
in conventional inlet-sockets
mounted on the ceiling.
The assembly plate enclosed
must be stripped off prior
to installation and secured
to the ceiling using 2 or 4
screws and ensuring that it is
not laterally transposed.
( For connections please see
pt. 21!)
DIP
1
2
3
OFF
ON
using the remote control.
overriden
Wall bracket for remote control
IR-PD-DUO
