PS Engineering Inc. ®
PAC15EX Audio Selector Panel and Intercom System
Installation and Operator's Manual

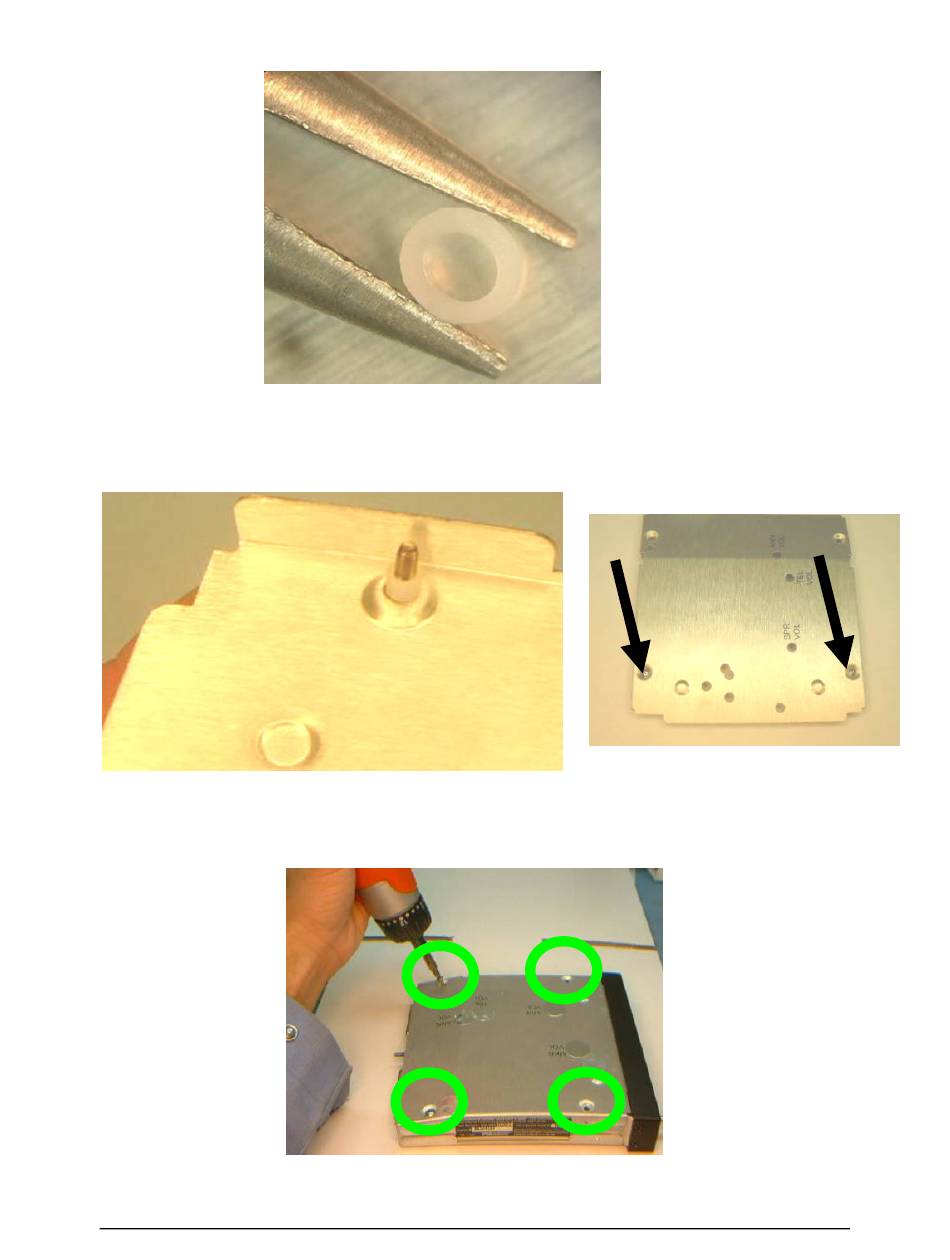

Figure #3
a. Install one long screw through the top lid, near the front edge on the power
supply board side, and add then add the nylon spacers from § 2.8.
Figure #4
4. Place the lid back on the unit aligning holes.
5. Install qty. 2 more long thread screws into the lid.
200-015-0000
Page 2-8
New, Oct. 2012
