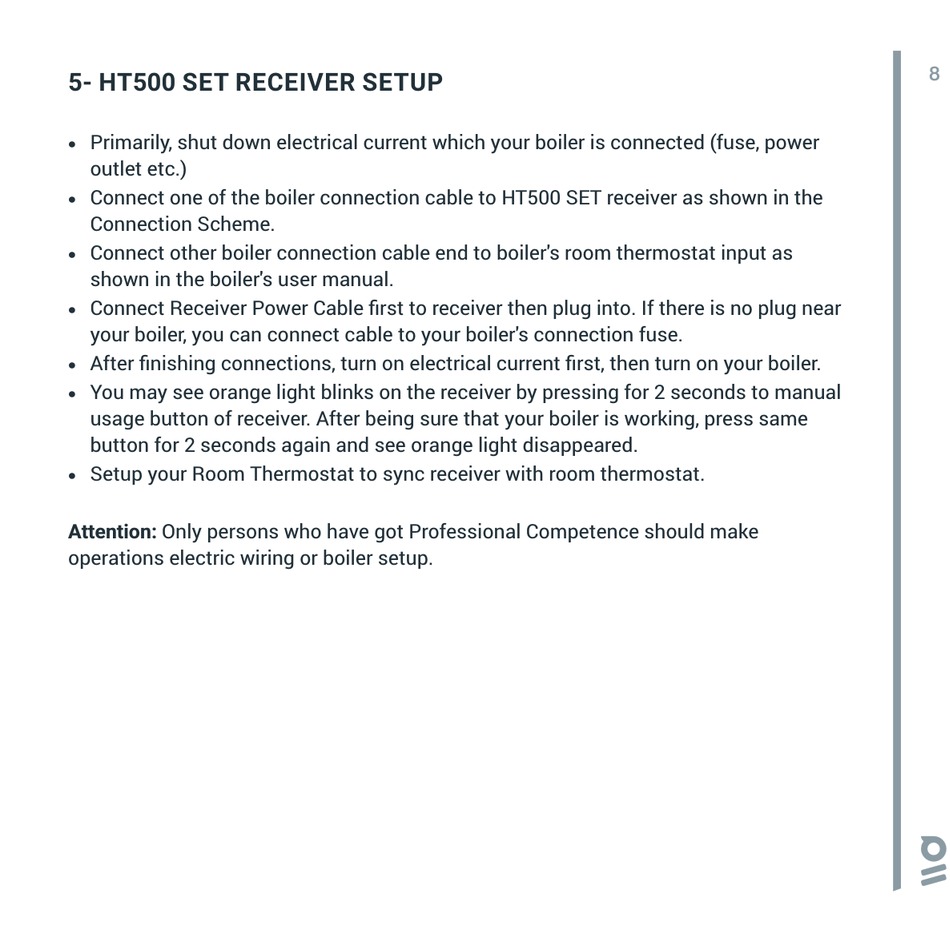

5- HT500 SET RECEIVER SETUP

Primarily, shut down electrical current which your boiler is connected (fuse, power

outlet etc.)
Connect one of the boiler connection cable to HT500 SET receiver as shown in the

Connection Scheme.
Connect other boiler connection cable end to boiler's room thermostat input as

shown in the boiler's user manual.
Connect Receiver Power Cable first to receiver then plug into. If there is no plug near

your boiler, you can connect cable to your boiler's connection fuse.
After finishing connections, turn on electrical current first, then turn on your boiler.

You may see orange light blinks on the receiver by pressing for 2 seconds to manual

usage button of receiver. After being sure that your boiler is working, press same
button for 2 seconds again and see orange light disappeared.
Setup your Room Thermostat to sync receiver with room thermostat.

Attention: Only persons who have got Professional Competence should make
operations electric wiring or boiler setup.
