  • Page 1 FMB001 Quick Manual Easy OBDII tracker v1.0...

  • Page 2: Table Of Contents

    How to insert Micro-SIM card and connect battery ...... 5 PC Connection (Windows) ..............6 How to install USB drivers (Windows) ..........6 Configuration (Windows) ..............6 LED indications ................8 Characteristics................8 Basic characteristics ................. 8 Safety information ..............10 Certification and Approvals ............11 FMB001 | Wiki...

  • Page 3: Know Your Device

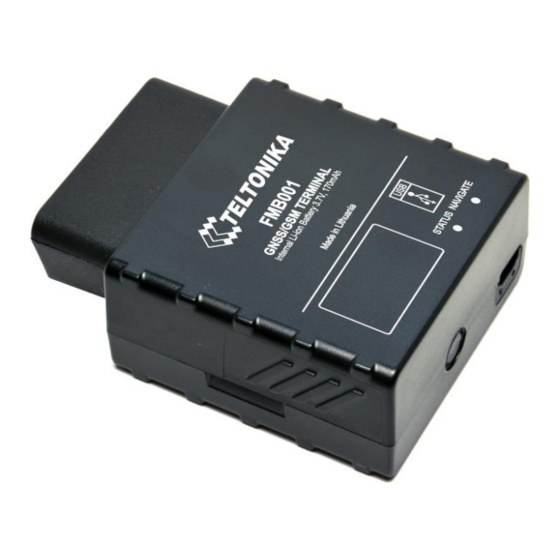

    Know your device Figure 1 FMB001 device view FMB001 | Wiki...

  • Page 4: Pinout

    Pin name Description DIN1 Ignition input PWM_BUS+/VPW GND (-) Ground GND (-) Ground CAN_H CAN high K-Line PWM_BUS- CAN_L CAN low L-Line Figure 2 FMB001 OBDII socket pinout VCC (10 - 30)V DC(+) Power supply (+10-30 V DC) FMB001 | Wiki...

  • Page 5: Set Up Your Device

    Set up your device How to insert Micro-SIM card and connect the battery 1. Gently remove FMB001 cover using plastic pry tool from both sides. 2. Insert Micro-SIM card as shown with PIN request disabled or read our Wiki how to enter it later in Configurator. Make sure that Micro-SIM card cut-off corner is pointing forward to slot.

  • Page 6: Pc Connection (Windows)

    Setup will continue installing the driver and eventually the confirmation window will appear. Click Finish to complete the setup. 1. Power-up FMB001 with DC voltage (10 – 30 V) power supply using supplied power cable. LED’s should start blinking, see Configuration (Windows) “LED indications”.
  • Page 7 Most important configurator section is GPRS – where all your server and GPRS settings can be configured and Data Acquisition – where data acquiring parameters can be configured. More details about FMB001 configuration using Configurator can be found in our Wiki. Figure 9 Configurator Status window FMB001 | Wiki...

  • Page 8: Led Indications

    Device is not working or Device is in boot mode Technology Quad-band 850 / 900 / 1800 / 1900 2G bands GPRS Multi-Slot Class 12 (up to 240 Data transfer kbps), GPRS Mobile Station Class B Data support SMS (text/data) FMB001 | Wiki...
  • Page 9 (USB, Blue-tooth), FMBT mobile application (Configuration) GSM antenna Internal High Gain Configuration, Events, Debug 2.0 Micro-USB LED indication 2 status LED lights GPRS commands Configuration, Debug Micro-SIM Time Synchronization GPS, NITZ, NTP Memory 128MB internal flash memory FMB001 | Wiki...

  • Page 10: Safety Information

    Do not disassemble the device. If the device is damaged, the power supply cables are not isolated or the isolation is damaged, DO NOT This message contains information on how to operate FMB001 touch the device before unplugging the power safely. By following these requirements and recommendations, supply.

  • Page 11: Certification And Approvals

    • FMB001 RoHS • FMB001 REACH • FMB001 Declaration of IMEI assignment • This sign on the package means that it is necessary to read the User‘s Manual before your start using the device. Full User‘s Manual version can be found in our Wiki.
