  • Page 1 FMM001 Quick Manual Advanced OBDII tracker v1.1...

  • Page 2: Table Of Contents

    Configuration (Windows) ..............6 Quick SMS configuration ..............8 Mounting recommendations ............9 LED indications ................10 Basic characteristics ..............10 Safety information ..............12 Certification and Approvals ............13 Warranty ..................14 Warranty Disclaimer ............... 14 Wiki FMM001 |...

  • Page 3: Know Your Device

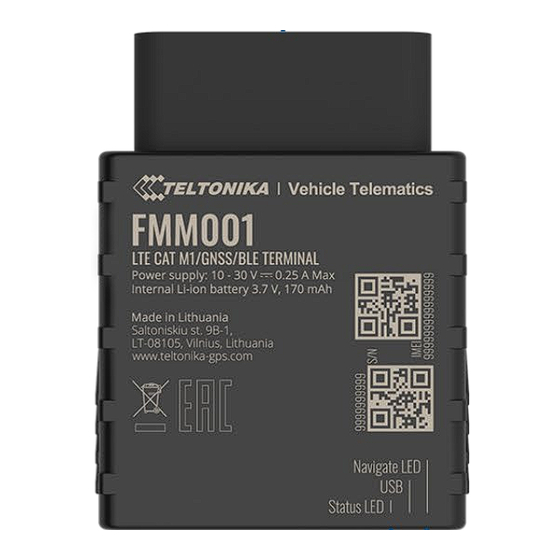

    Know your device Figure 1 FMM001 device view Wiki FMM001 |...

  • Page 4: Pinout

    PIN NUMBER PIN NAME DESCRIPTION PWM_BUS+/VPW GND (-) Ground GND (-) Ground CAN_H CAN high K-Line PWM_BUS- CAN_L CAN low L-Line VCC (10 - 30)V DC(+) Power supply (+10-30 V DC) Figure 2 FMM001 OBDII socket pinout Wiki FMM001 |...

  • Page 5: Set Up Your Device

    Set up your device How to insert Micro-SIM card and connect the battery 1. Gently remove FMM001 cover using plastic pry tool from both sides. 2. Insert Micro-SIM card as shown with PIN request disabled or read our Wiki how to enter it later in Teltonika Configurator.

  • Page 6: Pc Connection (Windows)

    Setup will continue installing the driver and eventually the confirmation window will appear. Click Finish to complete the setup. 1. Power-up FMM001 with DC voltage (10 – 30 V) power supply using supplied power cable. LED’s should start blinking, see Configuration (Windows) “LED indications”.
  • Page 7 Most important configurator section is GPRS – where all your server and GPRS settings can be configured and Data Acquisition – where data acquiring parameters can be configured. More details about FMM001 configuration using Configurator can be found in our Wiki. Figure 9 Configurator Status window Wiki FMM001 |...

  • Page 8: Quick Sms Configuration

    • server every 120 seconds 2005 – Port • After successful SMS configuration, FMM001 device will 2006 – Data sending protocol • synchronize time and update records to configured server. (0 – TCP, 1 – UDP) Time intervals and default I/O elements can be changed by using Teltonika Configurator parameters.

  • Page 9: Mounting Recommendations

    ▬ Find OBDII connector in your vehicle (Figure 10. Most common OBDII connector locations.). ▬ Before connecting the device to the OBDII socket, make sure that ≥3A fuse is present on OBD connector power supply. Figure 10. Most common OBDII connector locations. Wiki FMM001 |...

  • Page 10: Led Indications

    Basic characteristics Table 3 Navigation LED indications Table 5 Basic characteristics MODULE BEHAVIOUR MEANING Name Quectel BG96, Teltonika TM2500 Permanently switched on GNSS signal is not received Technology LTE CAT M1/CAT NB1/EGPRS/GNSS/BLUETOOTH Blinking every second Normal mode, GNSS is working...
  • Page 11 128MB internal flash memory Time Synchronization GPS, NITZ, NTP PHYSICAL SPECIFICATION Fuel monitoring OBDII Dimensions 67,2 x 49,6 x 25 mm (L x W x H) Ignition detection Accelerometer, External Power Voltage, Engine RPM Weight 63 g Wiki FMM001 |...

  • Page 12: Safety Information

    Please consult representatives of your vehicle model regarding OBDII location on your vehicle. In case you are not sure about proper connection, This message contains information on how to operate FMM001 safely. By please consult qualified personnel. following these requirements and recommendations, you will avoid dangerous situations.

  • Page 13: Certification And Approvals

    Certification and Approvals • FMM001 RoHS This sign on the package means that it is necessary to read the User ‘s Manual before your start using the device. Full User ‘s Manual version can be found in our Wiki. This sign on the package means that all used electronic and electric equipment should not be mixed with general household waste.

  • Page 14: Warranty

    More information can be found at teltonika.lt/warranty-repair • Repaired • Replaced with a new product • Replaced with an equivalent repaired product fulfilling the same functionality • TELTONIKA can also repair products that are out of warranty at an agreed cost. Wiki FMM001 |...
