Parts

UL Listed Motor Control Box For 2HP Pumps Model P200H1-CB

Item Part No.
1 108-403-1
2 071-047-1
3 071-061-1
4 011-085-1
5 012-253-1
6 008-180-1
7 071-062-1
8 023-009-1
UL Listed Motor Control Box For 2HP Pumps Model P200H1-CB

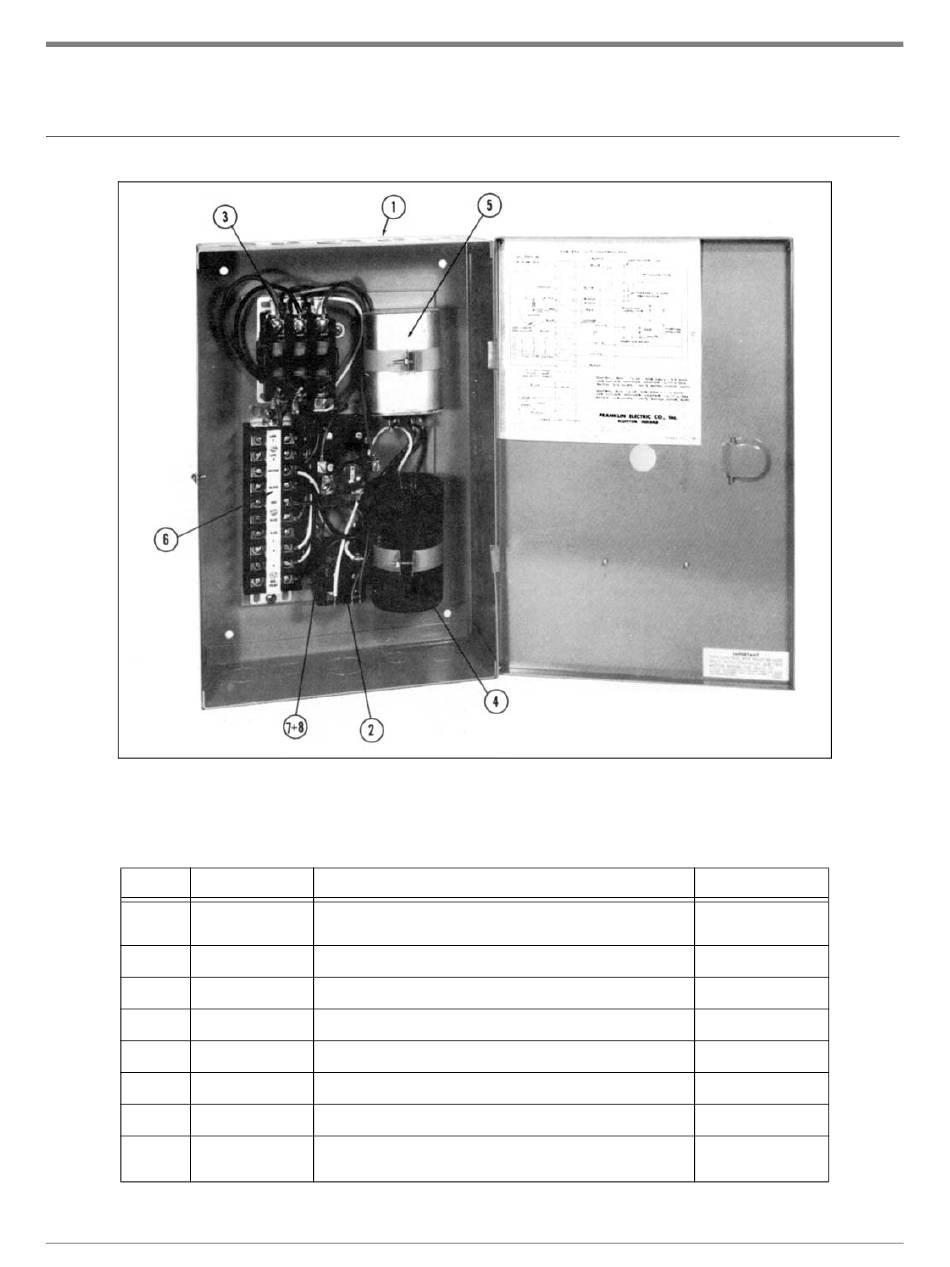

Figure 27. 2HP, 1-Phase Control Box

Table K.

Description
P200H1-CB Complete General Purpose Motor Control Box
(4" D x 10.125" W x 15.125" L)
Starting Relay (3ARR3-J3V2)
Line Contactor Relay
Starting Capacitor (200MFD-250 Volt)
Running Capacitor (15MFD-370 Volt)
Terminal Block
Overload Protector (Cutler Hammer 10-2149)
Overload Protector Heater Element (Cutler Hammer 10177H-
33A) (P200H1-CB)
40
rj/051-301-29.eps
Qty.
1
1
1
1
1
1
1
1
